EP series EP1

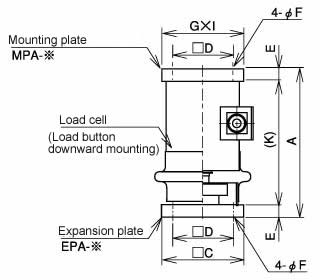

  • CCP1(A)/CCP1-Z series expansion plate + mounting plate

    Click the arrow icon in the table below to switch from ascending to descending order.

    scroll

    Item

    Accessory part No.

    A
    [mm]

    □C (X1)
    [mm]

    □D
    [mm]

    E
    [mm]

    φF
    [mm]

    G
    [mm]

    I
    [mm]

    K
    [mm]

    N (Expansion limit)
    [mm]

    Weight
    [kg]
    CCP1-50K(-Z)~ CCP1-100K(-Z) use EPA-1, MPA-1A-B 176.5 100 77 15 8 100 100 146.5 ±8 3
    CCP1A-200K(-Z)~ CCP1-1T(-Z) use EPA-1, MPA-1-B 180 100 77 15 8 100 100 150 ±8 3
    CCP1-2T(-Z)~ CCP1-5T(-Z) use EPA-3A, MPA-3A-B 249 130 105 23 12 130 130 203 ±8 8
    CCP1-10T(-Z) use EPA-4A, MPA-4A-B 350 160 125 30 14 160 155 290 ±10 15
    CCP1-20T(-Z) use EPA-6, MPA-6A-B 442 200 150 30 14 200 185 382 ±10 26
