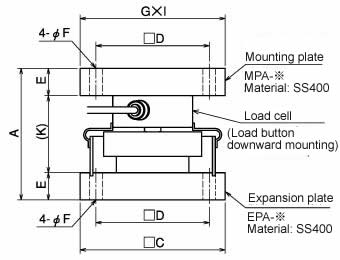

CMM1/CMP1 series expansion plate + mounting plate
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
Item
Accessory part No.
A
[mm]□C (X1)
[mm]□D
[mm]E
[mm]φF
[mm]G
[mm]I
[mm]K
[mm]N (Expansion limit)
[mm]Weight
[kg]CMM1(R/J)-50K~ CMM1(R/J)-2T use EPA-1A, MPA-2-B 80 100 77 15 8 100 100 50 ±8 3.3 CMP1-250K~CMP1-5T use EPA-4B, MPA-5-B 145 160 125 30 14 160 155 85 ±8 14.7 CMP1-10T use EPA-4B, MPA-5-B 150 160 125 30 14 160 155 90 ±8 14.7 CMP1-20T use EPA-14, MPA-14-B 155 160 125 30 14 160 155 95 ±8 14.9
Custom
- ※Custom products are intended for mass production. Please consult us for small-lot orders.
