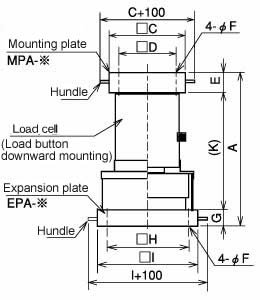

CCS1 series expansion plate + mounting plate
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
Item
Accessory part No.
A
[mm]□C (X1)
[mm]□D
[mm]E
[mm]φF
[mm]G
[mm]□H
[mm]□I
[mm]K
[mm]N (Expansion limit)
[mm]Weight
[kg]CCS1-50T use EPA-7, MPA-7A-B 305 220 160 40 19 40 160 220 225 ±15 40 CCS1-100T use EPA-8, MPA-8 400 260 200 60 23 60 200 260 280 ±15 86 CCS1-200T use EPA-10, MPA-10 475 280 200 80 27 60 280 360 335 ±15 170 CCS1-300T use EPA-15, MPA-15 585 280 200 80 35 60 320 400 445 ±15 222
Custom
- ※Custom products are intended for mass production. Please consult us for small-lot orders.
