REB/PR/HRT series REB1

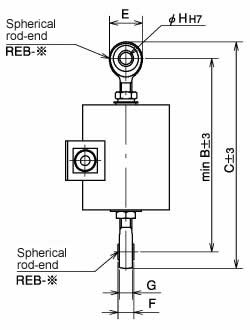

  • TCP1(A) series spherical rod-end

    Click the arrow icon in the table below to switch from ascending to descending order.

    scroll

    Item

    Accessory part No.

    B
    [mm]

    C
    [mm]

    E
    [mm]

    F
    [mm]

    G
    [mm]

    φH
    [mm]

    Stopper screw / Hexagon nut
    [mm]

    Weight
    [kg]
    TCP1-50K~TCP1-100K use REB-2 183 209 26 12.5 10.75 10 M10 x 1.25 0.3
    TCP1A-200K~TCP1-1T use REB-3 197 231 34 16 13.25 12 M12 x 1.25 0.3
    TCP1-2T~TCP1-5T use REB-4A 262 324 62 28 19.3 22 M24 x 2 2.3
    TCP1-10T use REB-5 463 563 100 43 39 40 M39 x 2 7.2
    TCP1-20T use REB-6 624 744 120 53 49 50 M50 x 2 14.3
