REB/PR/HRT series REB5

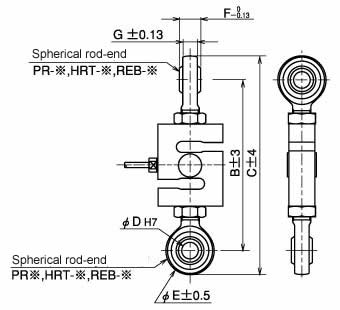

  • U3S1/U2S1 series spherical rod-end

    Click the arrow icon in the table below to switch from ascending to descending order.

    scroll

    Item

    Accessory part No.

    B
    [mm]

    C
    [mm]

    φD
    [mm]

    φE
    [mm]

    F
    [mm]

    G
    [mm]

    K
    [mm]

    Weight
    [g]
    U3S1-100K~1T-NS / U2S1-100K~1T(-C3) use(PR-12E) PR-12E 146 176 12 30 16 12 0.3 100
    U3S1-100K~1T-NS / U2S1-100K~1T(-C3) use(HRT-12E) HRT-12E 160 194 12 34 16 13.25 0.13 125
    U3S1-2T-NS/U2S1-2T(-C3) use REB-4A 224 286 22 62 28 19.3 0.13 1150
    U3S1-5T-NS/U2S1-5T(-C3) use REB-4A 232 294 22 62 28 19.3 0.13 1150

Custom

Custom Request (Custom Sensors)

Various custom sensors made to meet the customer's requirements.
  • ※
    Custom products are intended for mass production. Please consult us for small-lot orders.
