Integrated mold sensing system Mold cavity pressure measurement system

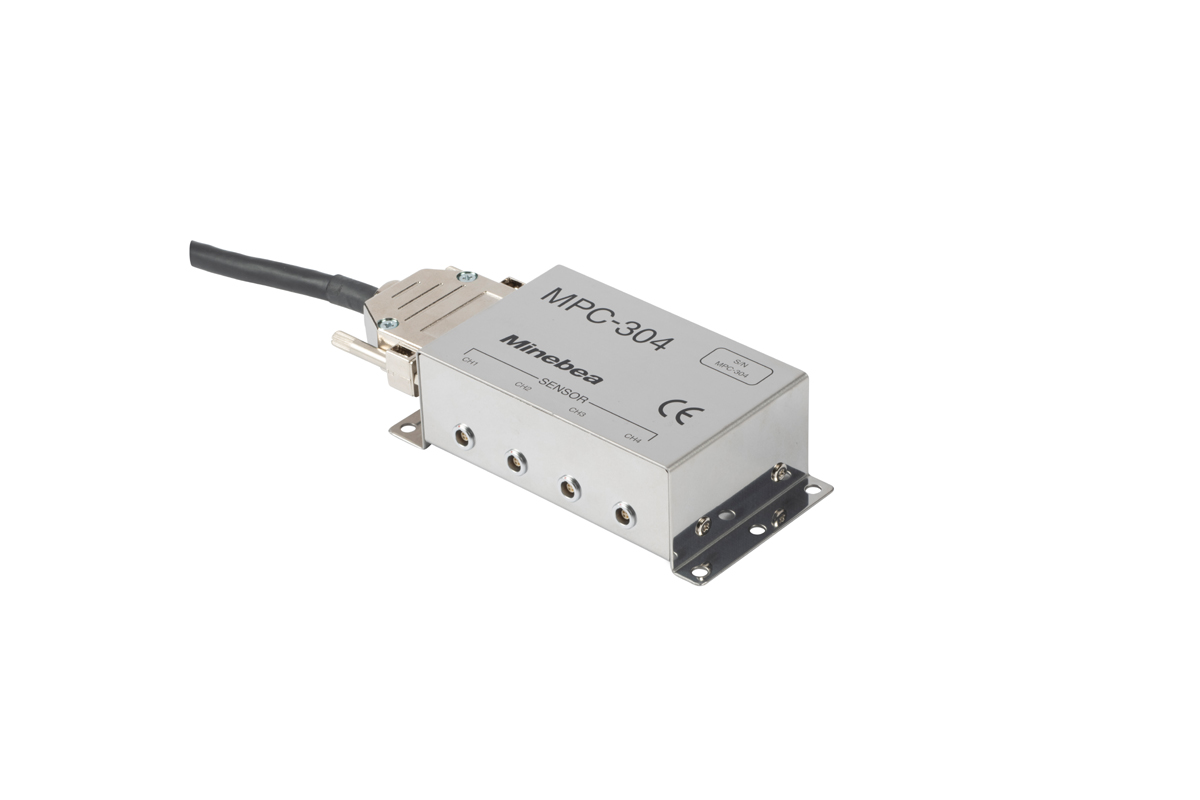

Relay box MPC-304


■Use for connecting a mold cavity pressure sensor model LSMS-S06 series / LSMSB-5K~3T in the metal mold with the molding pressure conversion module model MPC-203-25.
■Special cable model FA409-567-*M is required to connect it with MPC-203-25.
■CE mark applied product.


Specification name Specification contents
Operating temp./ humidity range Temperature 0 ℃~70 ℃ (0 ℃~100 ℃ at the magnet nonuse.)
Humidity 85 %RH or less (Non Condensing)
Stored temperature range -10 ℃ ~ 70 ℃ (-10 ℃~100 ℃ at the magnet nonuse.)
Vibration resistance 10 ~ 55 Hz double amplitude 1.5 mm, 2 hours for each direction of X, Y or Z.
Outline dimensions W x H x D: 120 mm × 60 mm × 35.4 mm (Excludes protruding parts.)
Weight Approx. 300 g (including magnet.)
Material of case SUS430
Applicable sensors LSMSB-※(※:5K、10K、20K、50K、100K、200K、500K、1T、3T)、LSMS-※-S06シリーズ (※:20K、50K、100K、200K、500K、1T、3T)
Applicable amplifier MPC-203-25
