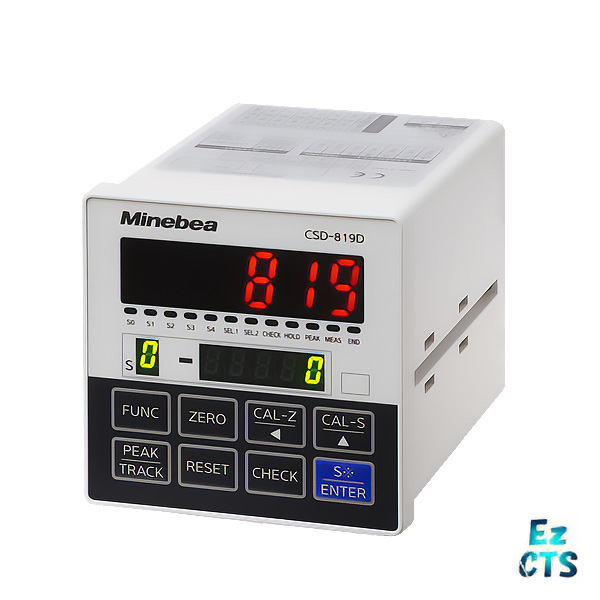

Digital Peak holder CSD-819D-S12

【What is tie bar Gage Measurement System】

It is a tensionmeter using the strain gage, and the system to measure the clamping force and the opening force by installing to the tie bar such as an injection molding machine.

・ All of bonding the strain gage and additional workers to the tie rod are not necessary.
・ The stability of the temperature characteristic has been maintained by developing a special strain gage.
・ Please choose the mounting attachment device from 2 varieties for inspectin use that can be easily detached, or for control use with cheap cost and excellent long term stability.
・ Clamping force can be recorded nad controled by retrieving the data from the indicator to the PC.

【Applied example】

・ Balance adjustment
Aiming at the adjustment of the tightening force of the fittings to become even by measuring the difference of clamping force distributed to the tie bar.

・ Detect the overload to the tie bar.

・ Operation management
Clamping force is recorded by using the PC.

・ Control
Use for control the tightening operation.

Features

・Suitable for the operation management of equipment that usese a tie bar.
・High-speed sampling at 2000 times per second.
・Various peak modes can be set according to the application.
・4-Point Calibration Data Comparator with Brand Switching Function.
・USB interface standard equipment.

scroll

Specification name	Specification contents
Bridge power supply	10 VDC±0.5VDC within 60 mA (Changeable to 5 VDC or 2.5 VDC)
Input range	±3.1m
Input sensitivity	0.4μV/digit（When the bridge power supply is DC 10 V） 0.2μV/digit（When the bridge power supply is DC5 V or DC2.5 V）
Output range	DC±10 V, Load resistance 5 kΩ or more. (F.S. is set by the function)
Output times	100 times/s, 500 times/s, 1 000 times/s or 2 000 times/s (Synchronous with A/D sampling rate.)
Output resolution	Same as the display resolution.
Zero adjustment range	±2.0 mV/V
Non-linearity	Display 0.025 %F.S., Output 0.025 %F.S.
Temperature coefficient	Zero point ±0.5 μV/℃y(When calibrating at input sensitivity or higher, the zero point must be within ±1.0 mV/V when the gauge voltage is DC 10 V.) Sensitivity ±0.01 %F.S./℃ (During calibration at input sensitivity or higher)
Input filter	10 Hz, 100 Hz or 1 kHz changeable.
A/D sampling rate	2 000 times/s (100 times/s, 500 times/s or 1 000 times/s changeable.)
Display range	-11 000～11 000
Comparator display	Display range : －99 999 to 99 999 Number of display : 1 point (select from S0, S1, S2, S3 or S4.) Display rate : 20 times/s（4 times/s, 50 times/s or 100 times/s changeable）
Comparator function	Set value：－99 999 to 99 999 Numbers of setting：1 points(S0、S1、S2、S3、S4) ※S0 is set by function. Display rate：20 times/s（4 times/s, 50 times/s or 100 times/s changeable） Open collector output signal : S1、S2、S3、S4 The open collector is ON when reached under/over the comparator set value.S0 The open collector is ON with either condition by function setting.
Operating temp./humidity range	Temperature -10 ℃~ 50 ℃, Humidity 85 %RHor less(Non condensing)
Power supply voltage	100 VAC to 240 VAC (Allowable variable range 85 VAC to 264 VAC)
Power consumption	Approx. 16 VA(With options, at AC230 V) Approx. 14 VA(With options, at AC100 V)
Outline dimensions (WxHxD)	96 mm ×96 mm ×129.5 mm (Excludes protruding parts.)
Weight	Approx. 0.5 kg (Without any options.)
Class of protection	IP65 equivalent (front panel only when installed with the included panel mount gasket)

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts No.

Outline dimension
(WxHxD)
[mm]

weight(Approx.)
[g]

CSD-819D-S12 96 ×96 x 129.5 (Excludes protruding parts.) 500
CAD
- csd-819D.DXF
