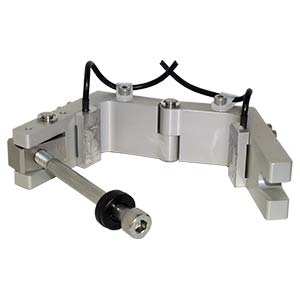

Ring for tie bar gage TGR series

【What is tie bar Gage Measurement System】

It is a tensionmeter using the strain gage, and the system to measure the clamping force and the opening force by installing to the tie bar such as an injection molding machine.

・ All of bonding the strain gage and additional workers to the tie rod are not necessary.
・ The stability of the temperature characteristic has been maintained by developing a special strain gage.
・ Please choose the mounting attachment device from 2 varieties for inspectin use that can be easily detached, or for control use with cheap cost and excellent long term stability.
・ Clamping force can be recorded nad controled by retrieving the data from the indicator to the PC.

【Applied example】

・ Balance adjustment
Aiming at the adjustment of the tightening force of the fittings to become even by measuring the difference of clamping force distributed to the tie bar.

・ Detect the overload to the tie bar.

・ Operation management
Clamping force is recorded by using the PC.

・ Control
Use for control the tightening operation.

Features

・Applied for test measurement, such as the balance adjustment for the tightening force, check of pressing force, etc.
・Detaching the sensor is very easy.
・All additional workers to the tie bar are unnecessary.
・Possible to install it in little space.

scroll

Specification name	Specification contents
Tie-bar gage P/No.	UX010
P/No. of the ring	TGR-* * : Diameter of tie bar(mm) EX. : 056→φ56 mm TＧR-056
Applied diameter	40 mm ~ 200 mm
Material	Aluminum alloy (Main body), Steel alloy (Other)

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts No.	Tightening torque [N･cm]	weight(Approx.) [g]
TGR-040	140	285
TGR-042	140	291
TGR-045	140	304
TGR-050	140	319
TGR-055	140	330
TGR-056	140	336
TGR-058	140	342
TGR-060	140	347
TGR-070	140	382
TGR-075	140	400
TGR-080	140	415
TGR-082	140	421
TGR-085	140	430
TGR-090	140	448
TGR-095	140	465
TGR-100	140	758
TGR-105	140	785
TGR-110	140	811
TGR-120	140	865
TGR-125	140	893
TGR-130	140	918
TGR-140	140	950
TGR-145	140	978
TGR-150	140	1002
TGR-160	140	1054
TGR-180	140	1158
TGR-190	140	1210
TGR-200	140	1259
