Features

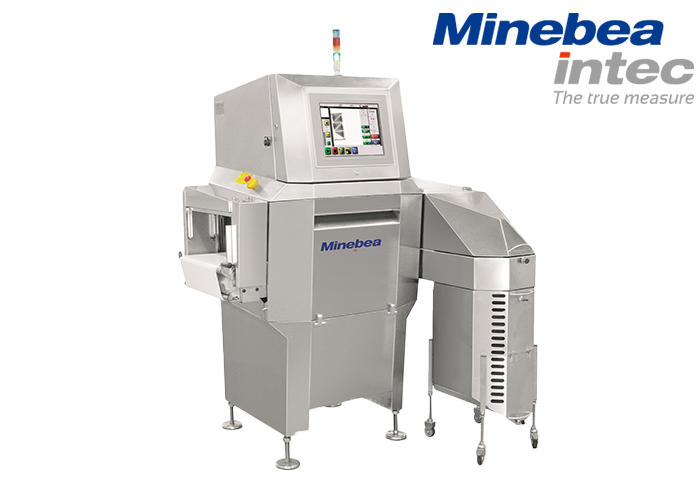

The Dymond Series of X-ray inspection systems is extremely versatile. Featuring 4 models it is able to cover the majority of applications for inspecting packaged products. With belt widths up to 800 mm it is ideal for multi-lane applications of up to 8 traces.
■Extremely high level of detection sensitivity with low energy consumption
■Reliable detection of a wide range of foreign objects for your packaged products
■From large to small: the perfect solution for every product size
■Easy and intuitive operation by teaching in the products
■Hygienic design, following EHEDG principles featuring sloped surfaces and curved edges allowing easy inspection and cleaning, resulting in considerable time and cost savings
■A wide range of standard possibilities for ensuring product integrity and quality including checking completeness, determining product mass and determining compartment mass
■Covering belt widths from 200 mm up to 800 mm
■15" color touchscreen display
Specification
| Specification name | Specification contents | Specification contents2 | Specification contents3 | Specification contents4 |
|---|---|---|---|---|
| Item | Dymond 40 | Dymond 80 | Dymond 120 | Dymond 160 |
| X-ray power | 70 kV, 1.2 mA | 70 kV-1.2 mA 80 kV-2 mA(optional) |
80 kV, 2 mA | 90 kV, 3.5 mA |
| Detector resolution | 0.4 mm | 0.8 mm 0.4 mm(optional) |
0.8 mm | 0.8 mm |
| Belt speed range(with drum motor) | 10 to 49 m/min、10 to 73 m/min (optional) |
10 to 49 m/min、10 to 73 m/min (optional) |
10 to 49 m/min、10 to 73 m/min (optional) |
10 to 49 m/min、10 to 73 m/min (optional) |
| Approvals | CE, UL/ CSA | CE, UL/ CSA | ||
| Safety locks | SIL 3 Category IV PL e, magnetic |
SIL 3 Category IV PL e, magnetic |
SIL 3 Category IV PL e, magnetic |
SIL 3 Category IV PL e, magnetic |
| User interface | 15-inch touchscreen | 15-inch touchscreen | 15-inch touchscreen | 15-inch touchscreen |
| Operating temperature | +5°C to +40°C with air cooling / +5°C to +30°C without air cooling |
+5°C to +40°C | +5°C to +40°C | +5°C to +40°C |
| Machine cooling | 500 W air cooling (optional with Nema4X / IP65) |
500 W air cooling (optional with Nema4X / IP65) |
500 W air cooling (optional with Nema4X / IP65) |
500 W air cooling (optional with Nema4X / IP65) |
| Relative air humidity(no condensation) | 20% to 90%, no condensation | 20% to 90%, no condensation | 20% to 90%, no condensation | 20% to 90%, no condensation |
| Digital outputs | 4 available | 4 available | 4 available | 4 available |
| Digital inputs | 7 available | 7 available | 7 available | 7 available |
| USB port | Yes | Yes | Yes | Yes |
| Network connection | Ethernet | Ethernet | Ethernet | Ethernet |
| Compressed air | 5.5 to 6.9 bar | 5.5 to 6.9 bar | 5.5 to 6.9 bar | 5.5 to 6.9 bar |
| Radiation safety | FDA CFR 21 part 1020.40 | FDA CFR 21 part 1020.40 | FDA CFR 21 part 1020.40 | FDA CFR 21 part 1020.40 |
| International protection class | IP34 IP65 (Optional) IP69K(on request) |
IP34 IP65 (Optional) IP69K(on request) |
IP34 IP65 (Optional) IP69K(on request) |
IP34 IP65 (Optional) IP69K(on request) |
| Electrical supply | 230 V AC ± 10% (standard) / 190 to 240 V AC 50/60 Hz |
230 V AC ± 10% (standard) | 230 V AC ± 10% (standard) / 190 to 240 V AC 50/60 Hz |
|
| Conveyor height | 800–999 mm | 800–999 mm | 800–999 mm | 800–999 mm |
| Max. throughput(depending on product length) | 80 m/minute | 40 m/minute or 80 m/minute* depending on detector |
40 m/minute | 40 m/minute |
| Max. power consumption | 16A | 16A | 16A | 16A |
| Weight | 450kg | 500kg | 600kg | 680kg |
| Options | Remote control, Barcode reader, Acoustic signal emitter, Service contracts,Extended warranties, Separation and fill level monitoring,Air pressure monitoring, Lateral guides, Safety guards | Remote control, Barcode reader, Acoustic signal emitter, Service contracts,Extended warranties, Separation and fill level monitoring,Air pressure monitoring, Lateral guides, Safety guards | Remote control, Barcode reader, Acoustic signal emitter, Service contracts,Extended warranties, Separation and fill level monitoring,Air pressure monitoring, Lateral guides, Safety guards | Remote control, Barcode reader, Acoustic signal emitter, Service contracts,Extended warranties, Separation and fill level monitoring,Air pressure monitoring, Lateral guides, Safety guards |
Table of P/N
| Parts No. | Catalog data |
|---|---|
| DymondSeries | DS_Dymond_en.pdf |
Possible customer product dimensions

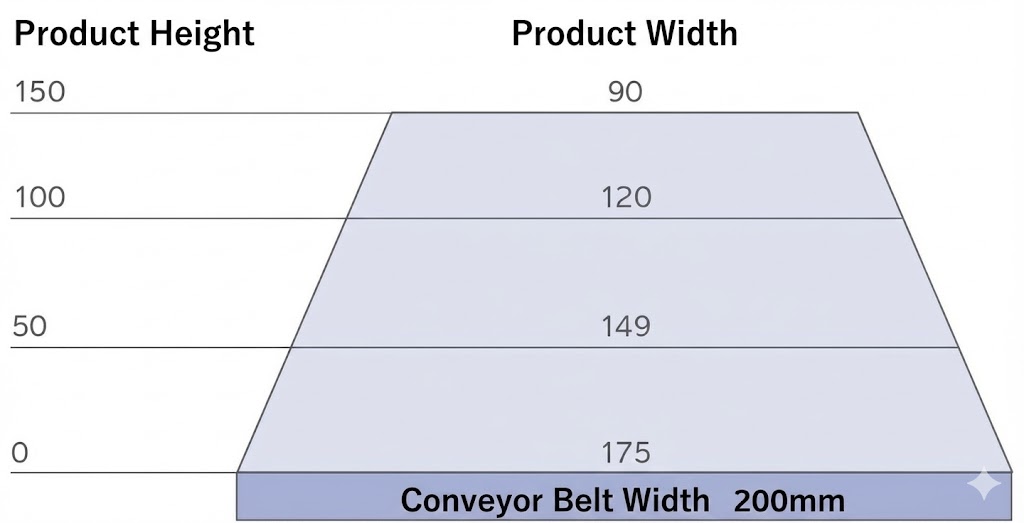

Dymond 40 Possible customer product dimensions

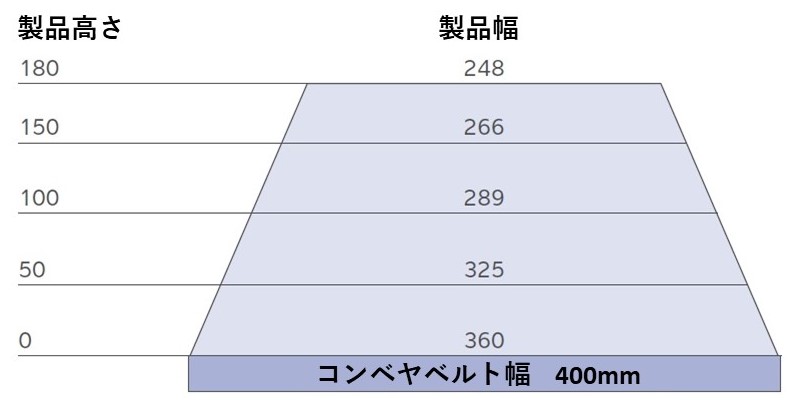

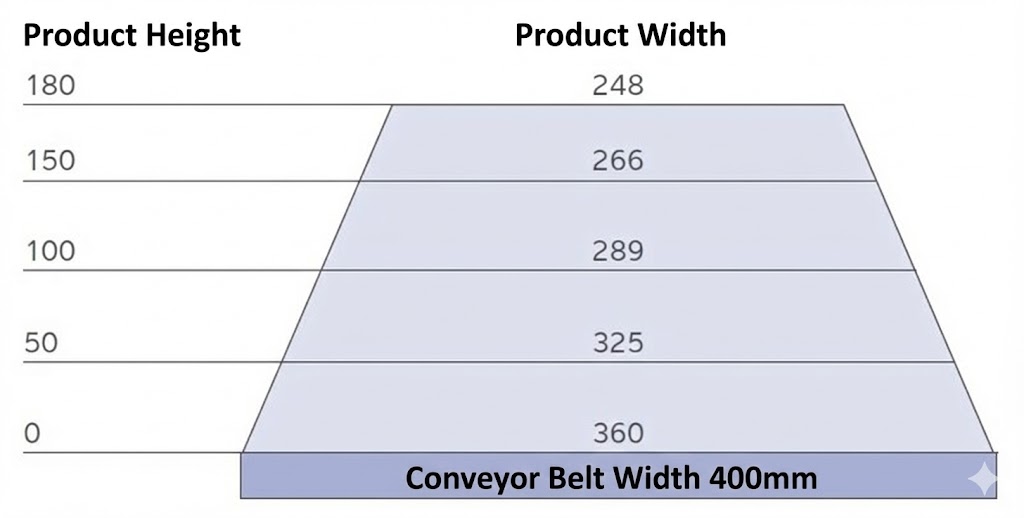

Dymond 80 Possible customer product dimensions

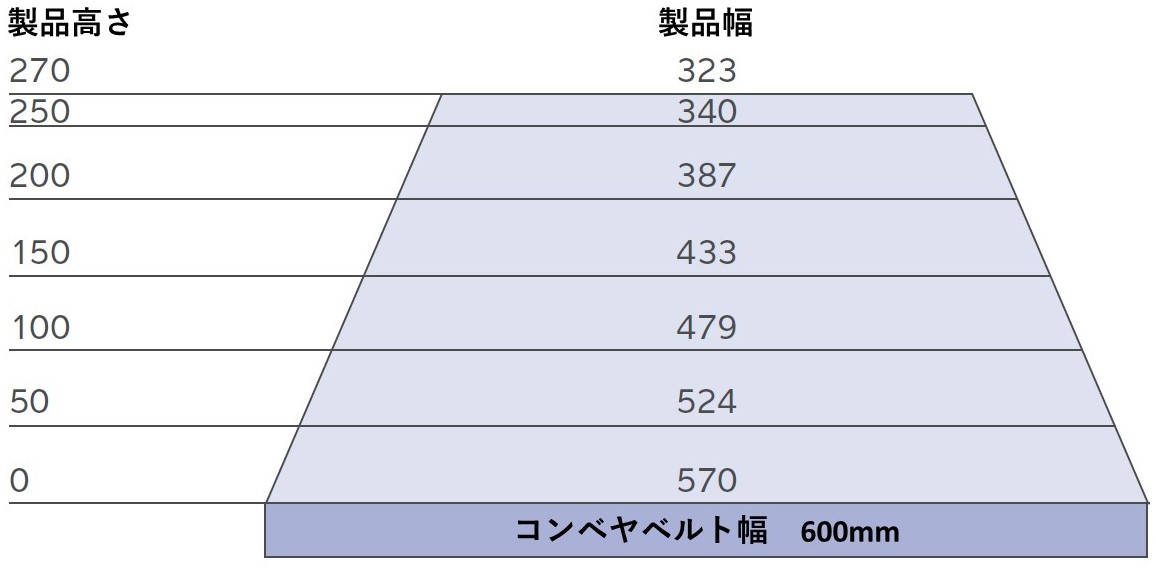

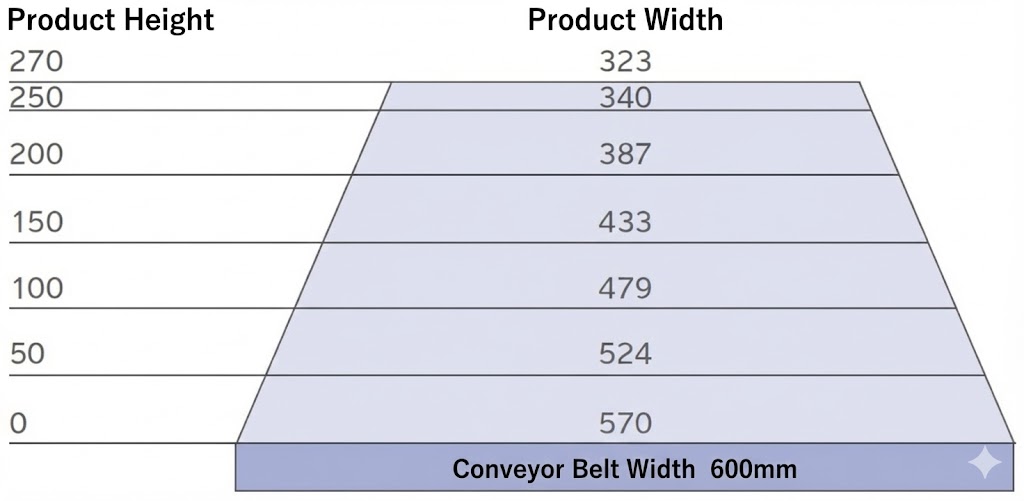

Dymond 120 Possible customer product dimensions

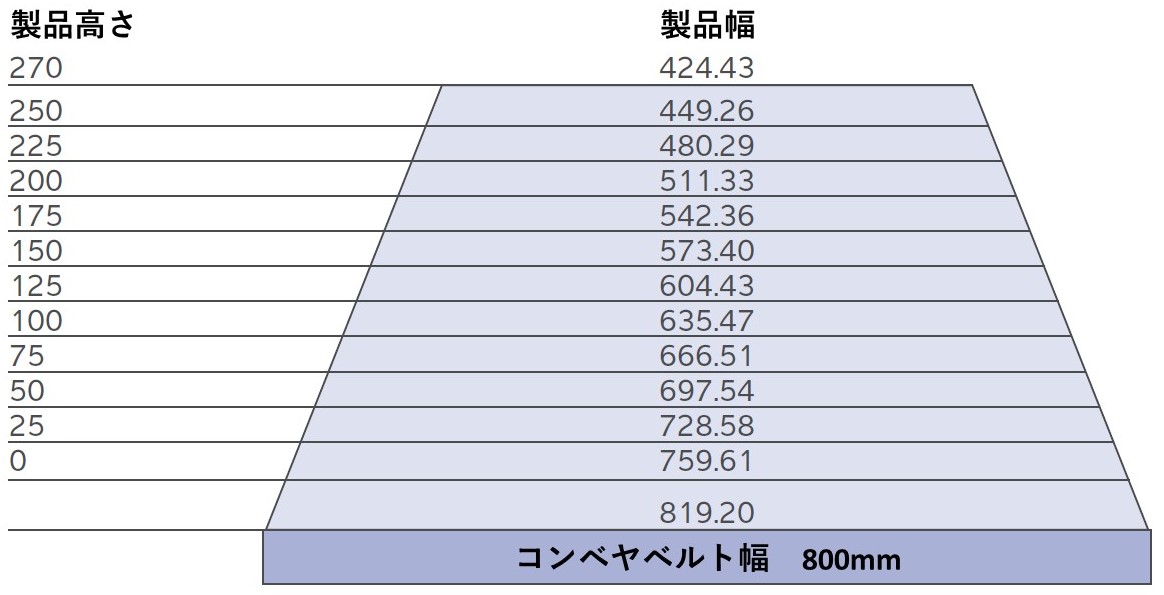

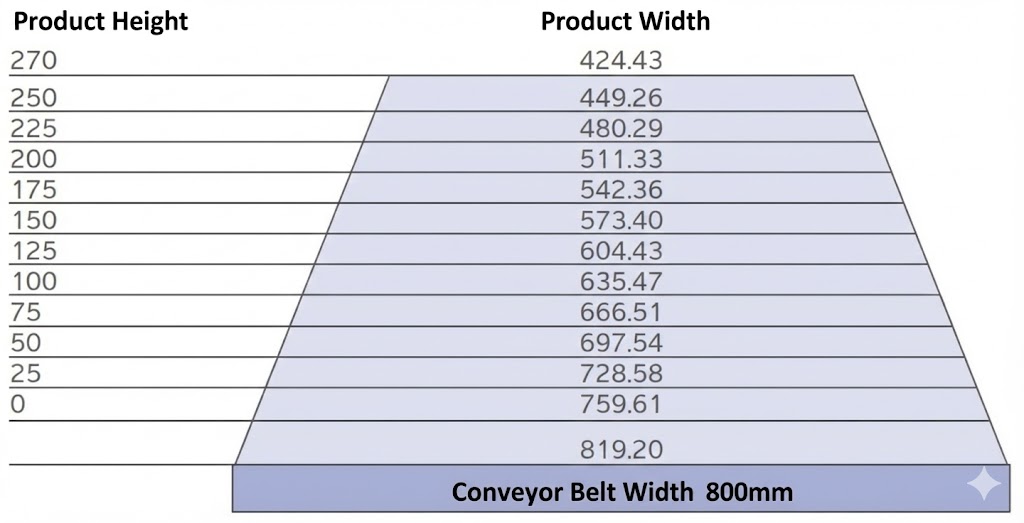

Dymond 160 Possible customer product dimensions
