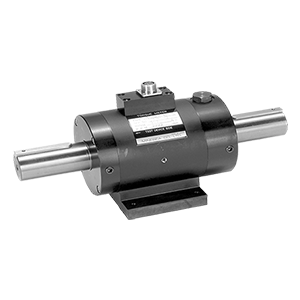

Rotary transformer method torque transducer TMNR series

Custom

Rotary transformer method both shaft type torque transducer.

Features

・TMNR type Torque meter is a highly effective rotary transformer to transmit the electric signal that the sensing point of torque detected.
Therefore, the steady performance is gotten as for the measurement for a long time, because driving side and the measurement side are noncontact.
It is used for the instrumentation control only for the measurement.
It is possible to use it for not only the torque measurement but also the instrumentation control field, For instance, control of stir power and kneading power in food chemical industry etc., because of the efficient rotary transformer adoption.
・The horsepower measurement on motors can be done, because the rotational speed can be measured by installing rotation detector (Options).

scroll

Specification name	Specification contents
Rated capacity	±10 N･m ~ ±10kN･m
Safe overload	120 %R.C.
Ultimate overload	200 %R.C.
Rated output	1.6 mV/V±0.32 mV/V (TMNR-10NM～20NM：0.75mV/V±0.15 mV/V)
Measurement accuracy	±0.05 %R.O.(including linearity, hysteresis and repeatablity.)
Excitation, recommended	2 VAC
Insulation resistance	500 M-ohm or more (DC50 V)(between bridge and main body)
Temp. range, safe	0 ℃ ~ 90 ℃(Operating temperature range : 0℃ ~ 40 ℃)
Temp. effect on zero balance	0.2 %R.O./10 ℃
Temp. effect on output	0.2 %LOAD/10 ℃
Zero shift by rotation	0.3 %R.O.(TMNR - 10NM~200NM : 0.5 %R.O.)
Temperature rise by rotation	TMNR-10NM ~ 1KNM : 40℃ orless at the maximum rotation, TMNR-2KNM ~ 10KNM : 50℃ or less at the maximum rotation
Cable	φ10, 4 cores shielded5 m cable with connecter to the both ends. (P/N : CAC-160-5M)
Connector	1108-12A10-7M10.0,PRC03-12A10-7M10.5
Class of protection	IP40 or equivalent
Gear for rotation detector	S45C black coated

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts No.	Rated capacity [N･m]	Rated capacity [kN･m]	Rated output [mV/V]	Tolerance of rated output [mV/V]	Maximum rotation speed [rpm]	Zero shift by rotation [%R.O.p-p]	Difference of temp. rise by rotation / at maximum speed [deg.C]	Mechanical characteristics Inertia moment [kg･cm²]	Mechanical characteristics Torsional rigidity [kN･m/rad]	Mechanical characteristics Torsional peculiar pitch [KHz]	Mechanical characteristics Twist angle at rated capacity [°]	Mechanical characteristics [N]	Cable	ConnectorParts No.	Gear for rotation detector	CAD files[DXF]	3D CAD files [STEP]	Weight(Approx. ) [kg]
TMNR-10NM	±10		±0.75	±0.15	10000	0.5	40	2.864	1.912	2.8	0.294	9.807	φ10, 4 cores shielded 5 m cable with connecter to the both ends. (P/N : CAC-160-5M)	1108-12A10-7M10.0,PRC03-12A10-7M10.5	S45C black coated 60 tooth, Module 1, width 8 mm	tmnr_10nm.dxf	TMNR-10NM.STEP	3
TMNR-20NM	±20		±0.75	±0.15	10000	0.5	40	2.864	3.128	3.6	0.359	14.71	φ10, 4 cores shielded 5 m cable with connecter to the both ends. (P/N : CAC-160-5M)	1108-12A10-7M10.0,PRC03-12A10-7M10.5	S45C black coated 60 tooth, Module 1, width 8 mm	tmnr_10nm.dxf	TMNR-20NM.STEP	3
TMNR-50NM	±50		±1.6	±0.32	10000	0.5	40	2.864	4.080	4.0	0.689	14.71	φ10, 4 cores shielded 5 m cable with connecter to the both ends. (P/N : CAC-160-5M)	1108-12A10-7M10.0,PRC03-12A10-7M10.5	S45C black coated 60 tooth, Module 1, width 8 mm	tmnr_10nm.dxf	TMNR-50NM.STEP	3
TMNR-100NM	±100		±1.6	±0.32	10000	0.5	40	2.873	6.296	3.9	0.892	29.42	φ10, 4 cores shielded 5 m cable with connecter to the both ends. (P/N : CAC-160-5M)	1108-12A10-7M10.0,PRC03-12A10-7M10.5	S45C black coated 60 tooth, Module 1, width 8 mm	tmnr_100nm.dxf	TMNR-100NM.STEP	3
TMNR-200NM	±200		±1.6	±0.32	10000	0.5	40	3.011	11.21	5.2	1.003	34.32	φ10, 4 cores shielded 5 m cable with connecter to the both ends. (P/N : CAC-160-5M)	1108-12A10-7M10.0,PRC03-12A10-7M10.5	S45C black coated 60 tooth, Module 1, width 8 mm	tmnr_100nm.dxf	TMNR-200NM.STEP	3
TMNR-500NM	±500		±1.6	±0.32	8000	0.3	40	16.38	48.90	3.3	0.575	49.03	φ10, 4 cores shielded 5 m cable with connecter to the both ends. (P/N : CAC-160-5M)	1108-12A10-7M10.0,PRC03-12A10-7M10.5	S45C black coated 60 tooth, Module 1.25, width 10 mm	tmnr_500nm.dxf	TMNR-500NM.STEP	7.5
TMNR-1KNM		±1	±1.6	±0.32	8000	0.3	40	16.48	63.98	3.8	0.878	98.07	φ10, 4 cores shielded 5 m cable with connecter to the both ends. (P/N : CAC-160-5M)	1108-12A10-7M10.0,PRC03-12A10-7M10.5	S45C black coated 60 tooth, Module 1.25, width 10 mm	tmnr_500nm.dxf	TMNR-1KNM.STEP	7.5
TMNR-2KNM		±2	±1.6	±0.32	5000	0.3	50	123.6	319.5	2.7	0.352	245.2	φ10, 4 cores shielded 5 m cable with connecter to the both ends. (P/N : CAC-160-5M)	1108-12A10-7M10.0,PRC03-12A10-7M10.5	S45C black coated 120 tooth, Module 1, width 10 mm	tmnr_2knm.dxf	TMNR-2KNM.STEP	21
TMNR-3KNM		±3	±1.6	±0.32	5000	0.3	50	124.5	384.5	3.0	0.438	294.2	φ10, 4 cores shielded 5 m cable with connecter to the both ends. (P/N : CAC-160-5M)	1108-12A10-7M10.0,PRC03-12A10-7M10.5	S45C black coated 120 tooth, Module 1, width 10 mm	tmnr_2knm.dxf	TMNR-3KNM.STEP	21
TMNR-5KNM		±5	±1.6	±0.32	5000	0.3	50	124.5	446.9	3.2	0.629	441.3	φ10, 4 cores shielded 5 m cable with connecter to the both ends. (P/N : CAC-160-5M)	1108-12A10-7M10.0,PRC03-12A10-7M10.5	S45C black coated 120 tooth, Module 1, width 10 mm	tmnr_2knm.dxf	TMNR-5KNM.STEP	21
TMNR-10KNM		±10	±1.6	±0.32	4000	0.3	50	193.2	744.8	2.5	0.754	980.7	φ10, 4 cores shielded 5 m cable with connecter to the both ends. (P/N : CAC-160-5M)	1108-12A10-7M10.0,PRC03-12A10-7M10.5	S45C black coated 120 tooth, Module 1, width 10 mm	tmnr_10knm.dxf	TMNR-10KNM.STEP	32

Specification sheet
Rotation detector for rotation speed and rotational direction : RPM
- Rotation detector MP-9810 No.EN265981
Specification sheet
Cable
- Fixing base NRBS No.KT50334-2
Instruction Manual
- ENKT60397
Specification
- Base
- Rotation detector(MP-9810)
- Rotation detectorCable(MX-7105)
- Transmitter for torque transducer
