Overview
![](/en/product/category/rotary/brushless/innerbrushless/parts/__icsFiles/afieldfile/2022/04/11/file_02_38.jpg)
dia. 42 × L39, L44
Motor Type : 3 Phase inner rotor type DC Brushless Motor
Driver circuit and micro-computer built-in
Step angle : 0.9deg
Rotation speed : ~ 6,000min-1
Output power : 10W, 20W

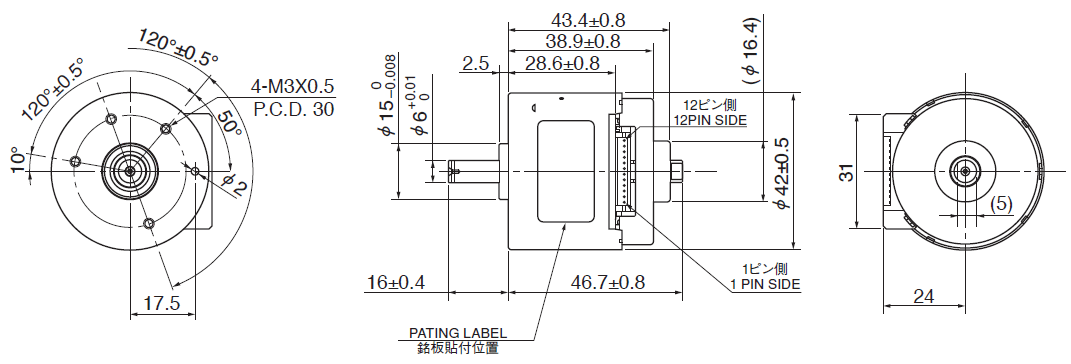

Overall View
![](/en/product/category/rotary/brushless/innerbrushless/parts/__icsFiles/afieldfile/2022/04/11/file_04_38.gif)
Major Characteristic Parameters
Rated Speed [min-1] |
2500 |
---|---|
Rated torque [mN・m] |
60 |
Rated current [mA] |
1000 |
Continuous rating power [W] |
12 |
Short time rating power [W] |
20 |
Please contact our sales for detail specification & order lot QTY. (All custom product by customer's requirement)

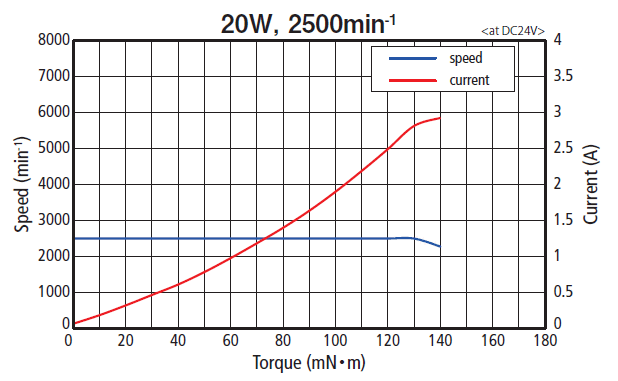

Property
![](/en/product/category/rotary/brushless/innerbrushless/parts/data/__icsFiles/afieldfile/2022/04/11/file_01_38.gif)
