Brushless inner rotor motors

DIX42(20W)

Overview

dia. 42 × L46 DC Brushless motor inner rotor type
Motor Type : 3 Phase DC Brushless Motor
Direction of Rotation : CW and CCW
Driver circuit built-in.
Speed control by PWM DUTY.
Compact, Light Weight and High Output
High Efficiency
Low Inertia
Overcurrent and Locked Rotor Protection
There is an encoder installation type and geared type. (DIA42B20)
There is an geared type.
The gear machined output, shaft type is available as an option.

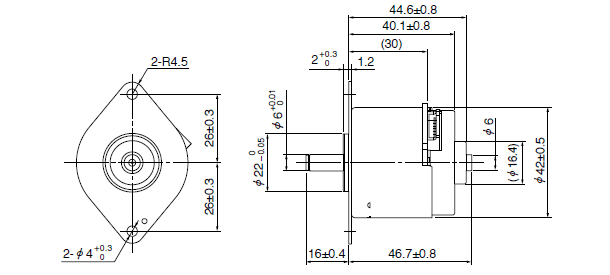

Overall View

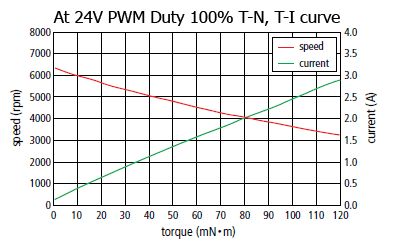

Major Characteristic Parameters

Operating Voltage (for Motor)
Min.
[VDC]
21.6
Operating Voltage (for Motor)
Nom.
[VDC]
24
Operating Voltage (for Motor)
Max.
[VDC]
26.4
Operating Voltage (for Circuit)
Min.
[VDC]
4.5
Operating Voltage (for Circuit)
Nom.
[VDC]
5
Operating Voltage (for Circuit)
Max.
[VDC]
5.5
Continuous Rating Power
Max.
[W]
12
Short Time Rating Power
Max.
[W]
20
Rotor Inertia (Reference Value)
Nom.
[g・cm2]
20
Operating Temperature
Min.
[deg.C]
0
Operating Temperature
Nom.
[deg.C]
20
Operating Temperature
Max.
[deg.C]
50
Operating Humidity
Min.
[%RH]
15
Operating Humidity
Max.
[%RH]
90
Usable Input PWM Duty
Min.
[%]
10
Usable Input PWM Duty
Max.
[%]
100
Motor Weight
Max.
[g]
185

Please contact our sales for detail specification & order lot QTY. (All custom product by customer's requirement)
