DIX42(7W)

Used for mechanical driving for paper feeds, and transfer for multiple function printer and ATM etc.
Possible to promote many application and various fields.
Developped energy saving design with small size and high efficiency technologies.

Overview

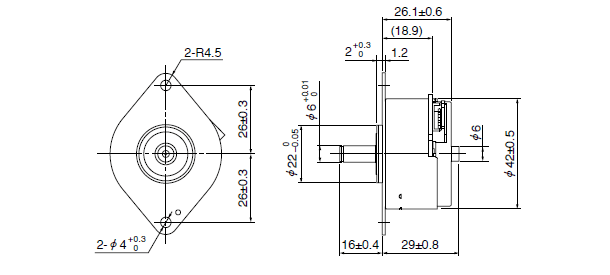

dia. 42 × L29 DC Brushless motor inner rotor type
Motor Type : 3 Phase DC Brushless Motor
Direction of Rotation : CW and CCW
Driver circuit built-in.
Speed control by PWM DUTY.
Compact, Light Weight and High Output
High Efficiency
Low Inertia
Overcurrent and Locked Rotor Protection
The gear machined output, shaft type is available as an option.

Operating Voltage (for Motor) Min. [VDC]	21.6
Operating Voltage (for Motor) Nom. [VDC]	24
Operating Voltage (for Motor) Max. [VDC]	26.4
Operating Voltage (for Circuit) Min. [VDC]	4.5
Operating Voltage (for Circuit) Nom. [VDC]	5
Operating Voltage (for Circuit) Max. [VDC]	5.5
Continuous Rating Power Max. [W]	3
Short Time Rating Power Max. [W]	7
Rotor Inertia (Reference Value) Nom. [g・cm2]	12
Operating Temperature Min. [deg.C]	0
Operating Temperature Nom. [deg.C]	20
Operating Temperature Max. [deg.C]	50
Operating Humidity Min. [%RH]	15
Operating Humidity Max. [%RH]	90
Usable Input PWM Duty Min. [%]	10
Usable Input PWM Duty Max. [%]	100
Motor Weight Max. [g]	120

Please contact our sales for detail specification & order lot QTY. (All custom product by customer's requirement)
