DNQ10M (Nd Mg)

These motors are used in mechanical driving for photoconductive drums, paper feeds, and toners in copiers and other OA equipment. Small-size, high-efficiency technology helps make equipment more compact and save more energy.
Nd Mg: Neodymium magnets type
Fe Mg: Ferrite magnet type
With plate, with plate and cover type are available for "for home appliance" models. Prease refer to the PDF.

Overview

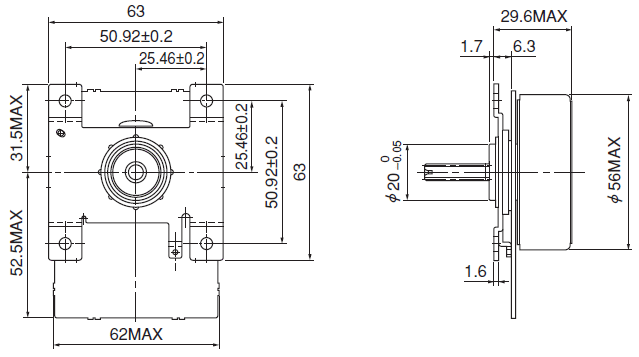

dia. 55 × L30 DC Brushless motor outer rotor type
Motor Type : 3 Phase DC Brushless Motor
Direction of Rotation : CW and CCW
Control-Driver circuit built-in.
Compact, Light Weight and High Output
High Efficiency
Low Noise
Overcurrent and Locked Rotor Protection
The gear machined output, shaft type is available as an option.

Operating Voltage Min. [VDC]	21.6
Operating Voltage Nom. [VDC]	24
Operating Voltage Max. [VDC]	26.4
Operating Speed Min. [min-1]	600
Operating Speed Max. [min-1]	3000
Continuous Rating Power Max. [W]	40
Rotor Inertia (Reference Value) Nom. [g・cm2]	565
Operating Temperature Min. [deg.C]	0
Operating Temperature Nom. [deg.C]	20
Operating Temperature Max. [deg.C]	50
Operating Humidity Min. [%RH]	15
Operating Humidity Max. [%RH]	90
Motor Weight Max. [g]	270

Please contact our sales for detail specification & order lot QTY. (All custom product by customer's requirement)

Associated Data
- PDF product catalog
