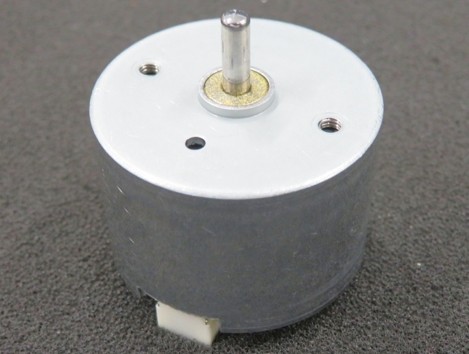

BKL10

These motors are used in driving and electrical components for digital AV equipment and PC peripheral devices. High-precision low vibration technology and bearing technology help to create faster equipment.

Overview

3 Phase outer rotor type DC Brushless Motor
Driver circuit built-in
Bearing : Can select Oil retaining bearing or Ball bearing

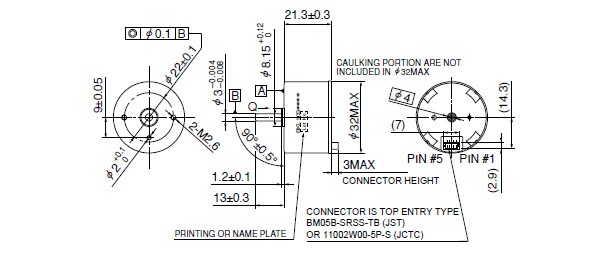

Connection : Connector TOP TYPE
JST : BM05B-SRSS-TB or JCTC : 11002W00-5P-S
SIDE TYPE
JST : SMO5B-SRSS-TB or JCTC : 11002W90-5P-S

Interface (5 terminals) Power Supply : 4.5 - 26.4V
GND : (Short to Frame)
FG : 6 pulses per rotation, 5V, square-wave
The switchable 1FG or 1/2FG or 1/3FG
VSP or PWM : Rotational speed adjustment terminal
VSP : 0V - 5V (1V> : stop, 4.4V< : Full acceleration)

PWM : 0 − 5V, 15 - 100kHz (ON-level : 2V - 5V)
(Duty3%> : stop, Duty100% : Full acceleration)

CW / CCW switch
0.8V> : CCW, 1.3V - 2.0V : Brake-mode, 2.5V< : CW

scroll

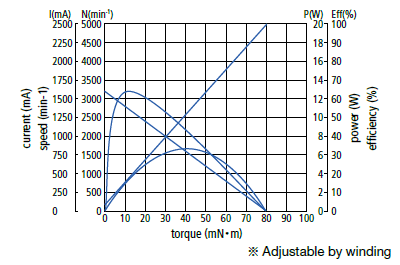

Outer Diameter [mm]	No load speed [r/min]	Starting torque [mN・m]	Maximum output power [W]	Starting torquey [%]	Speed at maximal efficiency [r/min]	Speed at max output power [r/min]	Life at 20 deg.C [hour]
32.0	3200	80.0	6.7(at 40mN·m)	65(at 12mN·m)	2700	1600	5000

*Major characteristic parameters at 12V.
Please contact our sales for detail specification & order lot QTY. (All custom product by customer's requirement)
