BKL9

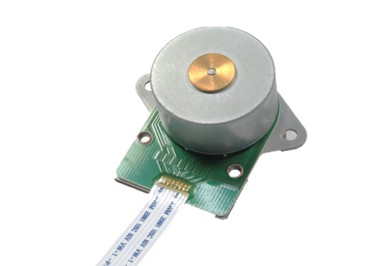

Product image of BKL9 | Small brushless motors

These motors are used in driving and electrical components for digital AV equipment and PC peripheral devices. High-precision low vibration technology and bearing technology help to create faster equipment.

Overview

3 Phase outer rotor type DC Brushless Motor
Interface Power Supply
GND
FG
VSP or PWM
CW / CCW switch

Connection : Connector
(JST : BM05B-SRSS-TB or JCTC : 11002W00-5P-S)

  • scroll

    Outer Diameter
    [mm]

    No load speed
    [r/min]

    Starting torque
    [mN・m]

    Maximum output power
    [W]

    Starting torquey
    [%]

    Speed at maximal efficiency
    [r/min]

    Speed at max output power
    [r/min]

    Life at 20 deg.C
    [hour]
    29.2 4050 71.0 7.5 60 3250 2200 3000
