DIX24

Product image of DIX24 | Small brushless motors

These motors are used in driving and electrical components for digital AV equipment and PC peripheral devices. High-precision low vibration technology and bearing technology help to create faster equipment.

Overview

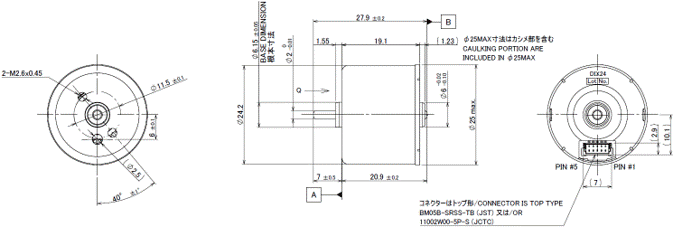

3 Phase outer rotor type DC Brushless Motor
Interface Power Supply
GND
FG
VSP or PWM
CW / CCW switch

Connection : Connector
(JST : BM05B-SRSS-TB or JCTC : 11002W00-5P-S)

  • scroll

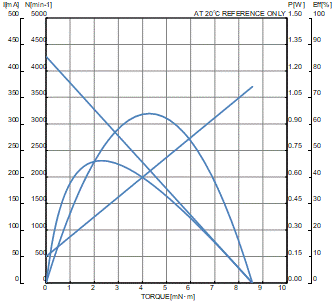

    Outer Diameter
    [mm]

    No load speed
    [r/min]

    Maximum output power
    [W]

    Starting torquey
    [%]

    Speed at maximal efficiency
    [r/min]

    Speed at max output power
    [r/min]

    Life at 20 deg.C
    [hour]
    24.2 4280 1(at 4.3mN・m) 46(at 2.3mN・m) 3135 2140 5000
