Electromagnetic clutches and brakes are control components that use electromagnetic force to instantly engage, disengage, and stop rotational power. Our lineup includes clutches to transmit power and brakes to stop and hold rotation. We offer a wide range of products, including compact tooth clutches that deliver exceptionally high torque, and spring actuated electromagnetic brakes that stop using only friction when power is disconnected.
-
-
-
-
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
Model
Max Speed
[min-1]Weight
[kg]Torque
[N･m]Coil 20deg.C Voltage DC
[V]Coil 20deg.C Wattage
[W]Coil 20deg.C Current
[A]Air Gap Clutch Open
[mm]ZCA16 5400 17.00 160 24 109.0 4.53 0.5 ZCA25 5000 22.00 250 24 104.0 4.34 0.5 ZCA40 4400 26.00 400 24 126.0 5.24 0.5 ZCA63 4000 36.00 630 24 145.0 6.03 0.5 ZCA100 3600 50.00 1000 110 142.0 1.29 0.5 ZCA160 3200 66.00 1600 110 197.0 1.79 1.0 ZCA250 2900 95.00 2500 110 255.0 2.32 1.0 ZCA400 2700 123.00 4000 110 295.0 2.68 1.0 ZCA630 2400 210.00 6300 110 275.0 2.50 1.0 ZCA1000 2000 257.00 10000 110 412.0 3.75 1.0 -
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
Model
Diameter A
[mm]Diameter B
[mm]Diameter D1 max H7
[mm]Diameter D2 max H7
[mm]Diameter F H7
[mm]Diameter G
[mm]Diameter H
[mm]Diameter U (Screw hole)
[mm]ZCA16 195 60.0 45 45 170 183 140 4-M6 ZCA25 210 63.0 50 50 180 197 150 4-M8 ZCA40 240 74.0 60 60 210 228 170 4-M8 ZCA63 262 86.0 70 70 230 250 190 6-M8 ZCA100 290 96.0 80 80 25 276 210 4-M10 ZCA160 320 106.0 90 90 280 302 230 6-M10 ZCA250 360 122.0 100 100 315 340 260 6-M12 ZCA400 400 131.0 110 110 350 380 290 8-M12 ZCA630 450 151.0 130 130 390 425 330 6-M16 ZCA1000 505 181.0 150 150 440 473 380 6-M16 -
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
Model
Length L
[mm]Length M
[mm]Length N
[mm]Length R
[mm]Length T
[mm]ZCA16 125.0 50.0 50.0 5.0 5.0 ZCA25 145.0 60.0 60.0 5.0 5.0 ZCA40 150.0 60.0 62.0 6.0 5.0 ZCA63 165.0 74.0 68.0 6.0 5.0 ZCA100 175.0 70.0 72.0 8.0 10.0 ZCA160 200.0 85.0 80.0 8.0 10.0 ZCA250 215.0 85.0 85.0 10.0 10.0 ZCA400 235.0 95.0 100.0 10.0 10.0 ZCA630 270.0 110.0 115.0 12.0 10.0 ZCA1000 300.0 125.0 130.0 12.0 10.0 -
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
Model
Moment of Inertia J Armature Side
[kg･m2]Moment of Inertia J Outer boss Side
[kg･m2]ZCA16 0.0100 0.0150 ZCA25 0.0200 0.0200 ZCA40 0.0325 0.0350 ZCA63 0.0525 0.0600 ZCA100 0.0750 0.0100 ZCA160 0.1375 0.1650 ZCA250 0.2500 0.3000 ZCA400 0.4250 0.4750 ZCA630 0.8500 0.8750 ZCA1000 1.5750 1.7000 -

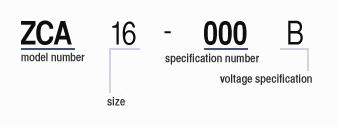

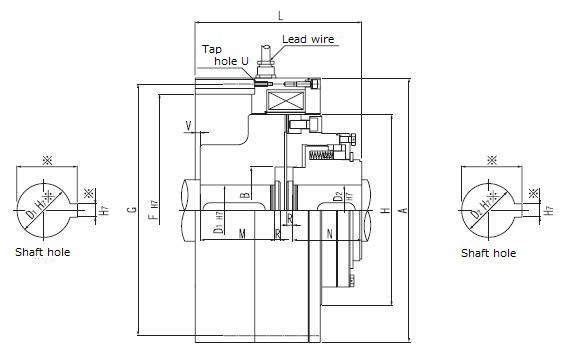

1.Please indicate dimension of the part marked. (If nothing is indicated, product with prepared hole shall be delivered).
2.In case quick response speed is required, power unit of over excitation type shall be utilized. (Which shall be ordered separately with reference to electromagnetic clutch / electric component for brake.)
