Application-specific PM stepping motors and custom solutions
Custom Motor Solutions for Your Design Challenges
Optimized Custom Motors
Dedicated Team for Technical Support and Prototyping!
Eliminating assembly parts for a compact design.
Reduces engineering effort and shortens lead time.
Product
PM stepping motor with integrated lead screw
Application
Head-up displays (HUD)
Custom Specifications
Customized for HUD applications by adding a screw, guide, and moving unit to the standard model. The shaft and lead screw are integrated into a single component. By eliminating coupling parts, it minimizes backlash, reduces component count, and enables a smaller footprint.
Benefits of customization
1. Space saving (compact design)
Reducing the number of components enables a more compact design.

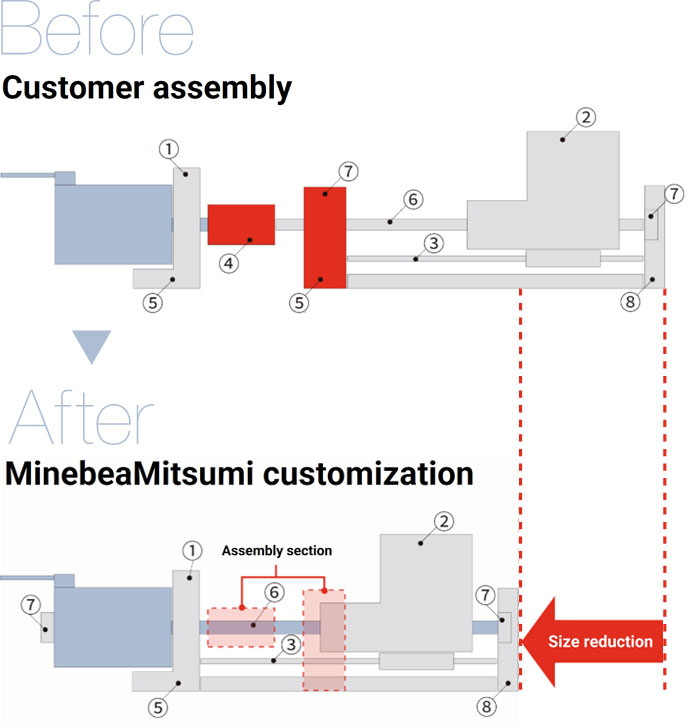

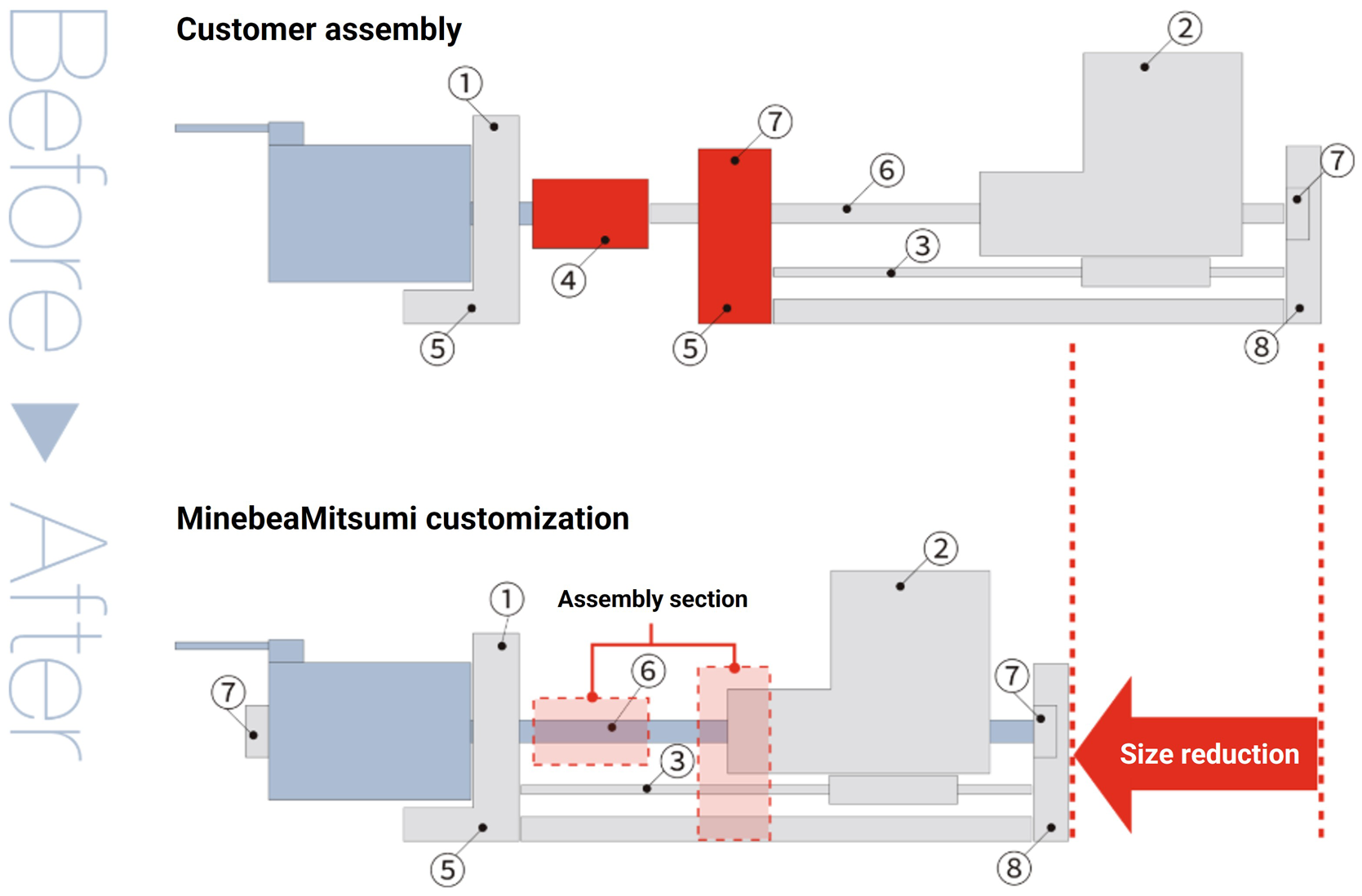

Benefits of space-saving customization
- Mounting plate
- Slider
- Guide shaft
- Coupling
- Front plate
- Lead screw
- Ball bearing
- End plate
Eliminating the intermediate assembly section significantly reduces the overall size,
achieving a highly compact, space-saving design.
2. Reduced design time
Eliminates the engineering time and effort required to design the assembly.
3. Unit warranty
Ensures reliability with a comprehensive warranty covering the entire assembled unit.

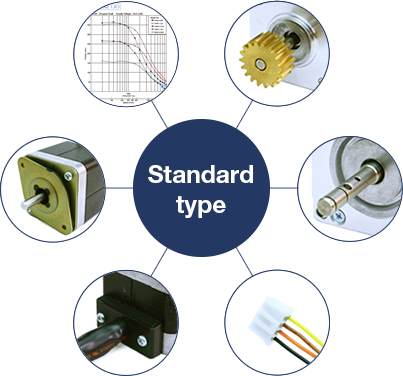

We can customize stepping motors according to your environment and required Specifications
We meet customer requests with customize products by providing Technical consultation, creating samples, offering optional functions, and providing other services.
- Torque characteristic
- We design the product to achieve the torque characteristic that meets your required Specifications.
- Dampers
- Anti-vibration dampers can be attached.
*Hybrid stepping motors only
- Simple waterproofing and dust resistance
- IP43 waterproof and dust-resistant finish is available.
*Hybrid stepping motors only
- Leads and Connectors
- We can process leads and connectors to the desired length and position them as specified.
- Shafts
- We can adjust the length of the shaft, and drill and cut the product before delivery.
- Gears and Pulleys
- We can deliver the product with customer-specified gears and pulleys mounted.
*Although we cannot meet all requests,please allow us to confirm the details through consultation.
Customization process
We offer product customization tailored to your specific challenges, supporting you through technical consultations, sample production, and optional feature integration.
-
01Requirement
confirmation -
02Sample
proposal - 03Quotation
-
04Delivery of
customized product
- Identifying needs and requests
- We begin by clarifying your needs, including desired specifications and projected lot sizes, to ensure we can provide a suitable customized solution.
- Sample provision
- We produce a sample based on your requirements, allowing you to evaluate it as an actual product.
- Estimate generation
- We Following your evaluation of the sample, we incorporate any necessary modifications and provide a formal quotation.
- Delivery of customized items
- Upon your approval of the final specifications and quotation, we initiate preparations for mass production.
We offer customization for various motors.
Contact us today to discuss your needs!
