PM stepping motors

Resistance Value

Product Catalog

Resistance value is restricted by service voltage and rise in motor temperature. Further, there are limitations on potential settings due to considerations of power conservation and restrictions on power supplies and motor drivers receiving power. Please pay due attention to these limitations when deciding settings. In addition, coil winding volume is restricted by motor size, so please refer to the following resistance value ranges when establishing settings. If priority is placed on torque, after taking temperature rise into account we can establish settings here by ourselves. In this case, please inform us of the drive conditions, the level of duty, the method of attachment, temperature conditions during use, and any or all other necessary specifications.

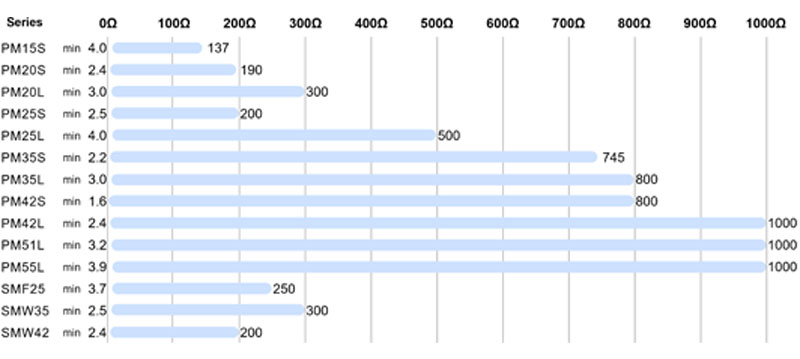

Resistance Value Range According to Motor Size
