Bearings
Miniature & small ball bearings
Deep groove ball bearings (basic type)
NMB Parts No. | ISO/JIS | Inner Diameter(d) [mm] |
Outer Diameter(D) [mm] |
Width(B) [mm] |
Dynamic Load Rating(Cr) [N] |
Static Load Rating(Cor) [N] |
Inner Diameter(d) [in] |
Outer Diameter(D) [in] |
CAD Data |
---|---|---|---|---|---|---|---|---|---|
DDRI-1634ZZ | - | 19.050 | 25.400 | 3.967 | 1203 | 894 | 0.7500 | 1.0000 | DDRI-1634ZZ |
DDRI-1634 | - | 19.050 | 25.400 | 3.967 | 1203 | 894 | 0.7500 | 1.0000 | DDRI-1634 |
DDRI-1458ZZ | - | 15.875 | 22.225 | 3.967 | 1093 | 742 | 0.6250 | 0.8750 | DDRI-1458ZZ |
RI-1812KK | - | 12.700 | 28.575 | 7.938 | 5113 | 2387 | 0.5000 | 1.1250 | RI-1812KK |
DDRI-1812ZZ | - | 12.700 | 28.575 | 7.938 | 4033 | 2003 | 0.5000 | 1.1250 | DDRI-1812ZZ |
DDRI-1812 | - | 12.700 | 28.575 | 6.350 | 4033 | 2003 | 0.5000 | 1.1250 | DDRI-1812 |
DDRI-1212ZZ | - | 12.700 | 19.050 | 3.967 | 1051 | 662 | 0.5000 | 0.7500 | DDRI-1212ZZ |
RI-1438SS | - | 9.525 | 22.225 | 7.142 | 3297 | 1368 | 0.3750 | 0.8750 | RI-1438SS |
RI-1438DD | - | 9.525 | 22.225 | 7.142 | 3297 | 1368 | 0.3750 | 0.8750 | RI-1438DD |
RI-1438KK | - | 9.525 | 22.225 | 7.142 | 3297 | 1368 | 0.3750 | 0.8750 | RI-1438KK |
RI-1438 | - | 9.525 | 22.225 | 5.558 | 3297 | 1368 | 0.3750 | 0.8750 | RI-1438 |
DDRI-1438ZZ | - | 9.525 | 22.225 | 7.142 | 3334 | 1413 | 0.3750 | 0.8750 | DDRI-1438ZZ |
DDRI-1438 | - | 9.525 | 22.225 | 5.558 | 3334 | 1413 | 0.3750 | 0.8750 | DDRI-1438 |
DDRI-1038ZZ | - | 9.525 | 15.875 | 3.967 | 906 | 477 | 0.3750 | 0.6250 | DDRI-1038ZZ |
DDRI-1038 | - | 9.525 | 15.875 | 3.967 | 906 | 477 | 0.3750 | 0.6250 | DDRI-1038 |
DDRI-8516ZZ | - | 7.938 | 12.700 | 3.967 | 878 | 419 | 0.3125 | 0.5000 | DDRI-8516ZZ |
DDRI-8516 | - | 7.938 | 12.700 | 3.967 | 878 | 419 | 0.3125 | 0.5000 | DDRI-8516 |
RI-1214ZZ | - | 6.350 | 19.050 | 7.142 | 2411 | 912 | 0.2500 | 0.7500 | RI-1214ZZ |
DDRI-1214ZZ | - | 6.350 | 19.050 | 7.142 | 2411 | 912 | 0.2500 | 0.7500 | DDRI-1214ZZ |
DDRI-1214 | - | 6.350 | 19.050 | 5.558 | 2411 | 912 | 0.2500 | 0.7500 | DDRI-1214 |
R-4SS | - | 6.350 | 15.875 | 4.978 | 1470 | 599 | 0.2500 | 0.6250 | R-4SS |
R-4DD | - | 6.350 | 15.875 | 4.978 | 1470 | 599 | 0.2500 | 0.6250 | R-4DD |
R-4KK | - | 6.350 | 15.875 | 4.978 | 1470 | 599 | 0.2500 | 0.6250 | R-4KK |
DDR-4SS | - | 6.350 | 15.875 | 4.978 | 1470 | 599 | 0.2500 | 0.6250 | DDR-4SS |
DDR-4HH | - | 6.350 | 15.875 | 4.978 | 1470 | 599 | 0.2500 | 0.6250 | DDR-4HH |
DDR-4 | - | 6.350 | 15.875 | 4.978 | 1470 | 599 | 0.2500 | 0.6250 | DDR-4 |
RI-814ZZ | - | 6.350 | 12.700 | 4.762 | 828 | 374 | 0.2500 | 0.5000 | RI-814ZZ |
DDRI-814ZZ | - | 6.350 | 12.700 | 4.762 | 828 | 374 | 0.2500 | 0.5000 | DDRI-814ZZ |
DDRI-814 | - | 6.350 | 12.700 | 3.175 | 828 | 374 | 0.2500 | 0.5000 | DDRI-814 |
DDRI-614ZZ | - | 6.350 | 9.525 | 3.175 | 417 | 205 | 0.2500 | 0.3750 | DDRI-614ZZ |
DDRI-614 | - | 6.350 | 9.525 | 3.175 | 417 | 205 | 0.2500 | 0.3750 | DDRI-614 |
R-3DD | - | 4.762 | 12.700 | 4.978 | 1306 | 487 | 0.1875 | 0.5000 | R-3DD |
R-3HH | - | 4.762 | 12.700 | 4.978 | 1306 | 487 | 0.1875 | 0.5000 | R-3HH |
DDR-3ZZ | - | 4.762 | 12.700 | 4.978 | 1306 | 487 | 0.1875 | 0.5000 | DDR-3ZZ |
DDR-3 | - | 4.762 | 12.700 | 3.967 | 1306 | 487 | 0.1875 | 0.5000 | DDR-3 |
RI-6632ZZ | - | 4.762 | 9.525 | 3.175 | 712 | 271 | 0.1875 | 0.3750 | RI-6632ZZ |
DDRI-6632ZZ | - | 4.762 | 9.525 | 3.175 | 712 | 271 | 0.1875 | 0.3750 | DDRI-6632ZZ |
DDRI-6632 | - | 4.762 | 9.525 | 3.175 | 712 | 271 | 0.1875 | 0.3750 | DDRI-6632 |
DDRI-5632ZZ | - | 4.762 | 7.938 | 3.175 | 391 | 142 | 0.1875 | 0.3125 | DDRI-5632ZZ |
DDRI-5632 | - | 4.762 | 7.938 | 2.779 | 391 | 142 | 0.1875 | 0.3125 | DDRI-5632 |
DDRI-5532ZZ | - | 3.967 | 7.938 | 3.175 | 391 | 142 | 0.1562 | 0.3125 | DDRI-5532ZZ |
DDRI-5532 | - | 3.967 | 7.938 | 2.779 | 391 | 142 | 0.1562 | 0.3125 | DDRI-5532 |
DDRI-618ZZ | - | 3.175 | 9.525 | 3.571 | 563 | 183 | 0.1250 | 0.3750 | DDRI-618ZZ |
DDRI-618 | - | 3.175 | 9.525 | 2.779 | 563 | 183 | 0.1250 | 0.3750 | DDRI-618 |
R-2DD | - | 3.175 | 9.525 | 3.967 | 641 | 226 | 0.1250 | 0.3750 | R-2DD |
R-2KK1 | - | 3.175 | 9.525 | 3.967 | 641 | 226 | 0.1250 | 0.3750 | R-2KK1 |
DDR-2ZZ | - | 3.175 | 9.525 | 3.967 | 641 | 226 | 0.1250 | 0.3750 | DDR-2ZZ |
DDR-2 | - | 3.175 | 9.525 | 3.967 | 641 | 226 | 0.1250 | 0.3750 | DDR-2 |
DDRI-518ZZ | - | 3.175 | 7.938 | 3.571 | 563 | 183 | 0.1250 | 0.3125 | DDRI-518ZZ |
DDRI-518 | - | 3.175 | 7.938 | 2.779 | 563 | 183 | 0.1250 | 0.3125 | DDRI-518 |
DDRI-418ZZ | - | 3.175 | 6.350 | 2.779 | 285 | 97 | 0.1250 | 0.2500 | DDRI-418ZZ |
DDRI-418 | - | 3.175 | 6.350 | 2.380 | 285 | 97 | 0.1250 | 0.2500 | DDRI-418 |
DDRI-5ZZ | - | 2.380 | 7.938 | 3.571 | 563 | 183 | 0.0937 | 0.3125 | DDRI-5ZZ |
DDRI-5 | - | 2.380 | 7.938 | 2.779 | 563 | 183 | 0.0937 | 0.3125 | DDRI-5 |
DDRI-3332ZZ | - | 2.380 | 4.762 | 2.380 | 187 | 59 | 0.0937 | 0.1875 | DDRI-3332ZZ |
DDRI-3332 | - | 2.380 | 4.762 | 1.588 | 187 | 59 | 0.0937 | 0.1875 | DDRI-3332 |
DDRI-4ZZ | - | 1.984 | 6.350 | 3.571 | 330 | 99 | 0.0781 | 0.2500 | DDRI-4ZZ |
DDRI-4 | - | 1.984 | 6.350 | 2.380 | 330 | 99 | 0.0781 | 0.2500 | DDRI-4 |
DDRI-3ZZ | - | 1.397 | 4.762 | 2.779 | 264 | 71 | 0.0550 | 0.1875 | DDRI-3ZZ |
DDRI-3 | - | 1.397 | 4.762 | 1.984 | 264 | 71 | 0.0550 | 0.1875 | DDRI-3 |
DDRI-2X2 | - | 1.016 | 3.175 | 1.191 | 106 | 28 | 0.0400 | 0.1250 | DDRI-2X2 |
DDA-2520ZZ | - | 20.000 | 25.000 | 4.000 | 1012 | 691 | 0.7874 | 0.9843 | DDA-2520ZZ |
DDA-2520 | - | 20.000 | 25.000 | 4.000 | 1012 | 691 | 0.7874 | 0.9843 | DDA-2520 |
DDA-2418 | - | 18.000 | 24.000 | 4.000 | 988 | 654 | 0.7087 | 0.9449 | DDA-2418 |
DDA-2216SS | - | 16.000 | 22.000 | 4.000 | 969 | 619 | 0.6299 | 0.8661 | DDA-2216SS |
DDA-2216ZZ | - | 16.000 | 22.000 | 4.000 | 969 | 619 | 0.6299 | 0.8661 | DDA-2216ZZ |
DDA-2216 | - | 16.000 | 22.000 | 4.000 | 969 | 619 | 0.6299 | 0.8661 | DDA-2216 |
DDA-2115DD | - | 15.000 | 21.000 | 4.000 | 938 | 581 | 0.5906 | 0.7874 | DDA-2115DD |
DDA-2115 | - | 15.000 | 21.000 | 3.500 | 938 | 581 | 0.5906 | 0.7874 | DDA-2115 |
DDA-2015ZZ | - | 15.000 | 20.000 | 4.500 | 944 | 582 | 0.5906 | 0.7874 | DDA-2015ZZ |
DDA-2015 | - | 15.000 | 20.000 | 3.500 | 944 | 582 | 0.5906 | 0.7874 | DDA-2015 |
DDR-2412X3DD | 6901DD | 12.000 | 24.000 | 6.000 | 3082 | 1433 | 0.4724 | 0.9449 | DDR-2412X3DD |
DDR-2412X3ZZ | 6901ZZ | 12.000 | 24.000 | 6.000 | 3082 | 1433 | 0.4724 | 0.9449 | DDR-2412X3ZZ |
DDL-2112SS | 6801SS | 12.000 | 21.000 | 5.000 | 1917 | 1042 | 0.4724 | 0.8268 | DDL-2112SS |
DDL-2112DD | 6801DD | 12.000 | 21.000 | 5.000 | 1917 | 1042 | 0.4724 | 0.8268 | DDL-2112DD |
DDL-2112 | 6801 | 12.000 | 21.000 | 5.000 | 1917 | 1042 | 0.4724 | 0.8268 | DDL-2112 |
DDR-2210X2HH | 6900ZZ | 10.000 | 22.000 | 6.000 | 2697 | 1273 | 0.3937 | 0.8661 | DDR-2210X2HH |
DDR-2210X2 | 6900 | 10.000 | 22.000 | 6.000 | 2697 | 1273 | 0.3937 | 0.8661 | DDR-2210X2 |
DDL-1910DD | - | 10.000 | 19.000 | 7.000 | 2123 | 985 | 0.3937 | 0.7480 | DDL-1910DD |
DDL-1910DDY05 | 6800DD | 10.000 | 19.000 | 5.000 | 2123 | 985 | 0.3937 | 0.7480 | DDL-1910DDY05 |
DDL-1910ZZY05 | 6800ZZ | 10.000 | 19.000 | 5.000 | 2123 | 985 | 0.3937 | 0.7480 | DDL-1910ZZY05 |
DDL-1910ZZ | - | 10.000 | 19.000 | 7.000 | 2123 | 985 | 0.3937 | 0.7480 | DDL-1910ZZ |
DDL-1910 | 6800 | 10.000 | 19.000 | 5.000 | 2123 | 985 | 0.3937 | 0.7480 | DDL-1910 |
DDA-1510ZZ | - | 10.000 | 15.000 | 4.000 | 857 | 435 | 0.3937 | 0.5906 | DDA-1510ZZ |
DDA-1510 | 6700 | 10.000 | 15.000 | 3.000 | 857 | 435 | 0.3937 | 0.5906 | DDA-1510 |
DDL-2090ZZ | 699ZZ | 9.000 | 20.000 | 6.000 | 2123 | 985 | 0.3543 | 0.7874 | DDL-2090ZZ |
DDL-2090 | 699 | 9.000 | 20.000 | 6.000 | 2123 | 985 | 0.3543 | 0.7874 | DDL-2090 |
DDL-1790DD | - | 9.000 | 17.000 | 5.000 | 1724 | 813 | 0.3543 | 0.6693 | DDL-1790DD |
DDL-1790ZZ | - | 9.000 | 17.000 | 5.000 | 1724 | 813 | 0.3543 | 0.6693 | DDL-1790ZZ |
DDL-1790 | 689 | 9.000 | 17.000 | 4.000 | 1724 | 813 | 0.3543 | 0.6693 | DDL-1790 |
DDR-2280DD | 608DD | 8.000 | 22.000 | 7.000 | 3297 | 1368 | 0.3150 | 0.8661 | DDR-2280DD |
DDR-2280HH | 608ZZ | 8.000 | 22.000 | 7.000 | 3297 | 1368 | 0.3150 | 0.8661 | DDR-2280HH |
DDR-2280 | 608 | 8.000 | 22.000 | 7.000 | 3297 | 1368 | 0.3150 | 0.8661 | DDR-2280 |
DDR-1980DD | 698DD | 8.000 | 19.000 | 6.000 | 2463 | 1059 | 0.3150 | 0.7480 | DDR-1980DD |
DDR-1980ZZ | 698ZZ | 8.000 | 19.000 | 6.000 | 2240 | 912 | 0.3150 | 0.7480 | DDR-1980ZZ |
DDR-1980 | 698 | 8.000 | 19.000 | 6.000 | 2240 | 912 | 0.3150 | 0.7480 | DDR-1980 |
DDL-1680DD | - | 8.000 | 16.000 | 5.000 | 1606 | 712 | 0.3150 | 0.6299 | DDL-1680DD |
DDL-1680HH | - | 8.000 | 16.000 | 5.000 | 1606 | 712 | 0.3150 | 0.6299 | DDL-1680HH |
DDL-1680 | 688 | 8.000 | 16.000 | 4.000 | 1606 | 712 | 0.3150 | 0.6299 | DDL-1680 |
DDL-1480ZZ | - | 8.000 | 14.000 | 4.000 | 819 | 386 | 0.3150 | 0.5512 | DDL-1480ZZ |
DDL-1480 | - | 8.000 | 14.000 | 3.500 | 819 | 386 | 0.3150 | 0.5512 | DDL-1480 |
DDL-1280ZZ | - | 8.000 | 12.000 | 3.500 | 506 | 249 | 0.3150 | 0.4724 | DDL-1280ZZ |
DDL-1280 | 678 | 8.000 | 12.000 | 2.500 | 506 | 249 | 0.3150 | 0.4724 | DDL-1280 |
DDR-2270HH | 627ZZ | 7.000 | 22.000 | 7.000 | 3297 | 1368 | 0.2756 | 0.8661 | DDR-2270HH |
DDR-2270 | 627 | 7.000 | 22.000 | 7.000 | 3297 | 1368 | 0.2756 | 0.8661 | DDR-2270 |
DDR-1970ZZ | 607ZZ | 7.000 | 19.000 | 6.000 | 2240 | 912 | 0.2756 | 0.7480 | DDR-1970ZZ |
DDR-1970 | 607 | 7.000 | 19.000 | 6.000 | 2240 | 912 | 0.2756 | 0.7480 | DDR-1970 |
DDL-1470ZZ | - | 7.000 | 14.000 | 5.000 | 1175 | 511 | 0.2756 | 0.5512 | DDL-1470ZZ |
DDL-1470 | 687 | 7.000 | 14.000 | 3.500 | 1175 | 511 | 0.2756 | 0.5512 | DDL-1470 |
DDL-1370ZZ | - | 7.000 | 13.000 | 4.000 | 880 | 414 | 0.2756 | 0.5118 | DDL-1370ZZ |
DDL-1370 | - | 7.000 | 13.000 | 3.000 | 880 | 414 | 0.2756 | 0.5118 | DDL-1370 |
DDL-1170DD | - | 7.000 | 11.000 | 3.000 | 449 | 199 | 0.2756 | 0.4331 | DDL-1170DD |
DDL-1170ZZ | - | 7.000 | 11.000 | 3.000 | 449 | 199 | 0.2756 | 0.4331 | DDL-1170ZZ |
DDL-1170 | 677 | 7.000 | 11.000 | 2.500 | 449 | 199 | 0.2756 | 0.4331 | DDL-1170 |
DDR-1960DD | 626DD | 6.000 | 19.000 | 6.000 | 2805 | 1060 | 0.2362 | 0.7480 | DDR-1960DD |
DDR-1960ZZ | 626ZZ | 6.000 | 19.000 | 6.000 | 2805 | 1060 | 0.2362 | 0.7480 | DDR-1960ZZ |
DDR-1960 | 626 | 6.000 | 19.000 | 6.000 | 2805 | 1060 | 0.2362 | 0.7480 | DDR-1960 |
DDR-1760X2DD | 606DD | 6.000 | 17.000 | 6.000 | 2265 | 839 | 0.2362 | 0.6693 | DDR-1760X2DD |
DDR-1760X2ZZ | 606ZZ | 6.000 | 17.000 | 6.000 | 2265 | 839 | 0.2362 | 0.6693 | DDR-1760X2ZZ |
DDR-1760X2 | 606 | 6.000 | 17.000 | 6.000 | 2265 | 839 | 0.2362 | 0.6693 | DDR-1760X2 |
DDR-1660HH | - | 6.000 | 16.000 | 5.000 | 1735 | 671 | 0.2362 | 0.6299 | DDR-1660HH |
DDR-1560DD | 696DD | 6.000 | 15.000 | 5.000 | 1735 | 671 | 0.2362 | 0.5906 | DDR-1560DD |
DDR-1560ZZ | 696ZZ | 6.000 | 15.000 | 5.000 | 1735 | 671 | 0.2362 | 0.5906 | DDR-1560ZZ |
DDR-1560 | 696 | 6.000 | 15.000 | 5.000 | 1735 | 671 | 0.2362 | 0.5906 | DDR-1560 |
DDL-1360DD | - | 6.000 | 13.000 | 5.000 | 1083 | 438 | 0.2362 | 0.5118 | DDL-1360DD |
DDL-1360ZZ | - | 6.000 | 13.000 | 5.000 | 1083 | 438 | 0.2362 | 0.5118 | DDL-1360ZZ |
DDL-1360 | 686 | 6.000 | 13.000 | 3.500 | 1083 | 438 | 0.2362 | 0.5118 | DDL-1360 |
DDL-1260X2DD | - | 6.000 | 12.000 | 4.000 | 831 | 363 | 0.2362 | 0.4724 | DDL-1260X2DD |
DDL-1260ZZ | - | 6.000 | 12.000 | 4.000 | 831 | 363 | 0.2362 | 0.4724 | DDL-1260ZZ |
DDL-1260 | - | 6.000 | 12.000 | 3.000 | 831 | 363 | 0.2362 | 0.4724 | DDL-1260 |
DDL-1060DD | - | 6.000 | 10.000 | 3.000 | 457 | 194 | 0.2362 | 0.3937 | DDL-1060DD |
DDL-1060ZZ | - | 6.000 | 10.000 | 3.000 | 457 | 194 | 0.2362 | 0.3937 | DDL-1060ZZ |
DDL-1060 | 676 | 6.000 | 10.000 | 2.500 | 457 | 194 | 0.2362 | 0.3937 | DDL-1060 |
DDR-1950ZZ | 635ZZ | 5.000 | 19.000 | 6.000 | 2805 | 1060 | 0.1969 | 0.7480 | DDR-1950ZZ |
DDR-1950 | 635 | 5.000 | 19.000 | 6.000 | 2805 | 1060 | 0.1969 | 0.7480 | DDR-1950 |
DDR-1650DD | 625DD | 5.000 | 16.000 | 5.000 | 1735 | 671 | 0.1969 | 0.6299 | DDR-1650DD |
DDR-1650HH | 625ZZ | 5.000 | 16.000 | 5.000 | 1735 | 671 | 0.1969 | 0.6299 | DDR-1650HH |
DDR-1650 | 625 | 5.000 | 16.000 | 5.000 | 1735 | 671 | 0.1969 | 0.6299 | DDR-1650 |
DDR-1450ZZ | 605ZZ | 5.000 | 14.000 | 5.000 | 1329 | 508 | 0.1969 | 0.5512 | DDR-1450ZZ |
DDR-1450 | 605 | 5.000 | 14.000 | 5.000 | 1329 | 508 | 0.1969 | 0.5512 | DDR-1450 |
DDR-1350ZZ | 695ZZ | 5.000 | 13.000 | 4.000 | 1074 | 422 | 0.1969 | 0.5118 | DDR-1350ZZ |
DDR-1350 | 695 | 5.000 | 13.000 | 4.000 | 1306 | 487 | 0.1969 | 0.5118 | DDR-1350 |
DDL-1150ZZY04 | - | 5.000 | 11.000 | 4.000 | 714 | 276 | 0.1969 | 0.4331 | DDL-1150ZZY04 |
DDL-1150W04 | - | 5.000 | 11.000 | 4.000 | 714 | 276 | 0.1969 | 0.4331 | DDL-1150W04 |
DDL-1150ZZ | - | 5.000 | 11.000 | 5.000 | 714 | 276 | 0.1969 | 0.4331 | DDL-1150ZZ |
DDL-1150 | 685 | 5.000 | 11.000 | 3.000 | 714 | 276 | 0.1969 | 0.4331 | DDL-1150 |
DDL-1050SS | - | 5.000 | 10.000 | 4.000 | 714 | 276 | 0.1969 | 0.3937 | DDL-1050SS |
DDL-1050ZZ | - | 5.000 | 10.000 | 4.000 | 714 | 276 | 0.1969 | 0.3937 | DDL-1050ZZ |
DDL-1050 | - | 5.000 | 10.000 | 3.000 | 714 | 276 | 0.1969 | 0.3937 | DDL-1050 |
DDL-950ZZ | - | 5.000 | 9.000 | 3.000 | 495 | 207 | 0.1969 | 0.3543 | DDL-950ZZ |
DDL-950 | - | 5.000 | 9.000 | 2.500 | 495 | 207 | 0.1969 | 0.3543 | DDL-950 |
DDL-850ZZ | - | 5.000 | 8.000 | 2.500 | 274 | 130 | 0.1969 | 0.3150 | DDL-850ZZ |
DDL-850 | 675 | 5.000 | 8.000 | 2.000 | 274 | 130 | 0.1969 | 0.3150 | DDL-850 |
DDR-1340DD | 624DD | 4.000 | 13.000 | 5.000 | 1306 | 487 | 0.1575 | 0.5118 | DDR-1340DD |
DDR-1340ZZ | 624ZZ | 4.000 | 13.000 | 5.000 | 1306 | 487 | 0.1575 | 0.5118 | DDR-1340ZZ |
DDR-1340 | 624 | 4.000 | 13.000 | 5.000 | 1306 | 487 | 0.1575 | 0.5118 | DDR-1340 |
DDR-1240ZZ | 604ZZ | 4.000 | 12.000 | 4.000 | 959 | 347 | 0.1575 | 0.4724 | DDR-1240ZZ |
DDR-1240 | 604 | 4.000 | 12.000 | 4.000 | 959 | 347 | 0.1575 | 0.4724 | DDR-1240 |
DDR-1140ZZ | 694ZZ | 4.000 | 11.000 | 4.000 | 714 | 276 | 0.1575 | 0.4331 | DDR-1140ZZ |
DDR-1140 | 694 | 4.000 | 11.000 | 4.000 | 714 | 276 | 0.1575 | 0.4331 | DDR-1140 |
DDL-1040ZZ | - | 4.000 | 10.000 | 4.000 | 708 | 266 | 0.1575 | 0.3937 | DDL-1040ZZ |
DDL-1040 | - | 4.000 | 10.000 | 3.000 | 708 | 266 | 0.1575 | 0.3937 | DDL-1040 |
DDL-940ZZ | - | 4.000 | 9.000 | 4.000 | 641 | 226 | 0.1575 | 0.3543 | DDL-940ZZ |
DDL-940 | 684 | 4.000 | 9.000 | 2.500 | 641 | 226 | 0.1575 | 0.3543 | DDL-940 |
DDL-840ZZ | - | 4.000 | 8.000 | 3.000 | 391 | 140 | 0.1575 | 0.3150 | DDL-840ZZ |
DDL-840 | - | 4.000 | 8.000 | 2.000 | 391 | 140 | 0.1575 | 0.3150 | DDL-840 |
DDL-740ZZ | - | 4.000 | 7.000 | 2.500 | 252 | 106 | 0.1575 | 0.2756 | DDL-740ZZ |
DDL-740 | 674 | 4.000 | 7.000 | 2.000 | 252 | 106 | 0.1575 | 0.2756 | DDL-740 |
DDR-1030ZZ | 623ZZ | 3.000 | 10.000 | 4.000 | 641 | 226 | 0.1181 | 0.3937 | DDR-1030ZZ |
DDR-1030 | 623 | 3.000 | 10.000 | 4.000 | 641 | 226 | 0.1181 | 0.3937 | DDR-1030 |
DDR-930ZZY04 | - | 3.000 | 9.000 | 4.000 | 634 | 219 | 0.1181 | 0.3543 | DDR-930ZZY04 |
DDR-930ZZ | - | 3.000 | 9.000 | 5.000 | 634 | 219 | 0.1181 | 0.3543 | DDR-930ZZ |
DDR-930 | 603 | 3.000 | 9.000 | 3.000 | 634 | 219 | 0.1181 | 0.3543 | DDR-930 |
DDR-830ZZ | - | 3.000 | 8.000 | 4.000 | 553 | 176 | 0.1181 | 0.3150 | DDR-830ZZ |
DDR-830 | 693 | 3.000 | 8.000 | 3.000 | 553 | 176 | 0.1181 | 0.3150 | DDR-830 |
DDL-730ZZ | - | 3.000 | 7.000 | 3.000 | 384 | 129 | 0.1181 | 0.2756 | DDL-730ZZ |
DDL-730 | 683 | 3.000 | 7.000 | 2.000 | 384 | 129 | 0.1181 | 0.2756 | DDL-730 |
DDL-630ZZ | - | 3.000 | 6.000 | 2.500 | 206 | 73 | 0.1181 | 0.2362 | DDL-630ZZ |
DDL-630 | 673 | 3.000 | 6.000 | 2.000 | 206 | 73 | 0.1181 | 0.2362 | DDL-630 |
DDR-825ZZ | - | 2.500 | 8.000 | 4.000 | 553 | 176 | 0.0984 | 0.3150 | DDR-825ZZ |
DDR-825 | 60/2.5 | 2.500 | 8.000 | 2.800 | 553 | 176 | 0.0984 | 0.3150 | DDR-825 |
DDR-725ZZ | - | 2.500 | 7.000 | 3.500 | 380 | 126 | 0.0984 | 0.2756 | DDR-725ZZ |
DDR-725 | 69/2.5 | 2.500 | 7.000 | 2.500 | 380 | 126 | 0.0984 | 0.2756 | DDR-725 |
DDL-625ZZ | - | 2.500 | 6.000 | 2.600 | 206 | 73 | 0.0984 | 0.2362 | DDL-625ZZ |
DDL-625 | 68/2.5 | 2.500 | 6.000 | 1.800 | 206 | 73 | 0.0984 | 0.2362 | DDL-625 |
DDR-720ZZY03 | - | 2.000 | 7.000 | 3.000 | 380 | 126 | 0.0787 | 0.2756 | DDR-720ZZY03 |
DDR-720ZZ | - | 2.000 | 7.000 | 3.500 | 380 | 126 | 0.0787 | 0.2756 | DDR-720ZZ |
DDR-720 | 602 | 2.000 | 7.000 | 2.800 | 380 | 126 | 0.0787 | 0.2756 | DDR-720 |
DDR-620ZZ | - | 2.000 | 6.000 | 3.000 | 330 | 99 | 0.0787 | 0.2362 | DDR-620ZZ |
DDR-620ZZY52 | - | 2.000 | 6.000 | 2.500 | 330 | 99 | 0.0787 | 0.2362 | DDR-620ZZY52 |
DDR-620W52 | - | 2.000 | 6.000 | 2.500 | 330 | 99 | 0.0787 | 0.2362 | DDR-620W52 |
DDR-620ZZY32 | 692ZZ | 2.000 | 6.000 | 2.300 | 279 | 89 | 0.0787 | 0.2362 | DDR-620ZZY32 |
DDR-620 | 692 | 2.000 | 6.000 | 2.300 | 279 | 89 | 0.0787 | 0.2362 | DDR-620 |
DDL-520ZZW52 | - | 2.000 | 5.000 | 2.500 | 187 | 59 | 0.0787 | 0.1969 | DDL-520ZZW52 |
DDL-520W52 | - | 2.000 | 5.000 | 2.500 | 187 | 59 | 0.0787 | 0.1969 | DDL-520W52 |
DDL-520ZZ | - | 2.000 | 5.000 | 2.300 | 187 | 59 | 0.0787 | 0.1969 | DDL-520ZZ |
DDL-520 | 682 | 2.000 | 5.000 | 1.500 | 187 | 59 | 0.0787 | 0.1969 | DDL-520 |
DDL-420 | 672 | 2.000 | 4.000 | 1.200 | 125 | 41 | 0.0787 | 0.1575 | DDL-420 |
DDR-615ZZ | - | 1.500 | 6.000 | 3.000 | 324 | 97 | 0.0591 | 0.2362 | DDR-615ZZ |
DDR-615 | 60/1.5 | 1.500 | 6.000 | 2.500 | 324 | 97 | 0.0591 | 0.2362 | DDR-615 |
DDR-515ZZ | - | 1.500 | 5.000 | 2.600 | 184 | 57 | 0.0591 | 0.1969 | DDR-515ZZ |
DDR-515 | 69/1.5 | 1.500 | 5.000 | 2.000 | 184 | 57 | 0.0591 | 0.1969 | DDR-515 |
DDL-415ZZ | - | 1.500 | 4.000 | 2.000 | 125 | 38 | 0.0591 | 0.1575 | DDL-415ZZ |
DDL-415 | 68/1.5 | 1.500 | 4.000 | 1.200 | 125 | 38 | 0.0591 | 0.1575 | DDL-415 |
DDR-412 | - | 1.200 | 4.000 | 1.800 | 158 | 44 | 0.0472 | 0.1575 | DDR-412 |
DDR-410XZZ | - | 1.000 | 4.000 | 2.000 | 125 | 38 | 0.0394 | 0.1575 | DDR-410XZZ |
DDR-410 | 691 | 1.000 | 4.000 | 1.600 | 158 | 44 | 0.0394 | 0.1575 | DDR-410 |
DDL-310 | 681 | 1.000 | 3.000 | 1.000 | 80 | 23 | 0.0394 | 0.1181 | DDL-310 |
R-2412X3DD | 6901DD | 12.000 | 24.000 | 6.000 | 3082 | 1433 | 0.4724 | 0.9449 | R-2412X3DD |
R-2412X3KK | 6901ZZ | 12.000 | 24.000 | 6.000 | 3082 | 1433 | 0.4724 | 0.9449 | R-2412X3KK |
R-2412X3 | 6901 | 12.000 | 24.000 | 6.000 | 3082 | 1433 | 0.4724 | 0.9449 | R-2412X3 |
L-2112SS | 6801SS | 12.000 | 21.000 | 5.000 | 1917 | 1042 | 0.4724 | 0.8268 | L-2112SS |
L-2112DD | 6801DD | 12.000 | 21.000 | 5.000 | 1917 | 1042 | 0.4724 | 0.8268 | L-2112DD |
L-2112KK | 6801ZZ | 12.000 | 21.000 | 5.000 | 1917 | 1042 | 0.4724 | 0.8268 | L-2112KK |
L-2112 | 6801 | 12.000 | 21.000 | 5.000 | 1917 | 1042 | 0.4724 | 0.8268 | L-2112 |
6000SS | 6000SS | 10.000 | 26.000 | 8.000 | 4578 | 1970 | 0.3937 | 1.0236 | 6000SS |
6000DD | 6000DD | 10.000 | 26.000 | 8.000 | 4578 | 1970 | 0.3937 | 1.0236 | 6000DD |
6000ZZ | 6000ZZ | 10.000 | 26.000 | 8.000 | 4578 | 1970 | 0.3937 | 1.0236 | 6000ZZ |
6000 | 6000 | 10.000 | 26.000 | 8.000 | 4578 | 1970 | 0.3937 | 1.0236 | 6000 |
R-2210X3SS | 6900SS | 10.000 | 22.000 | 6.000 | 2697 | 1273 | 0.3937 | 0.8661 | R-2210X3SS |
R-2210X3DD | 6900DD | 10.000 | 22.000 | 6.000 | 2697 | 1273 | 0.3937 | 0.8661 | R-2210X3DD |
R-2210X3KK | 6900ZZ | 10.000 | 22.000 | 6.000 | 2697 | 1273 | 0.3937 | 0.8661 | R-2210X3KK |
L-1910DDY05 | 6800DD | 10.000 | 19.000 | 5.000 | 2123 | 985 | 0.3937 | 0.7480 | L-1910DDY05 |
L-1910KKY05 | 6800ZZ | 10.000 | 19.000 | 5.000 | 2123 | 985 | 0.3937 | 0.7480 | L-1910KKY05 |
L-1910DD | - | 10.000 | 19.000 | 7.000 | 2123 | 985 | 0.3937 | 0.7480 | L-1910DD |
L-1910 | 6800 | 10.000 | 19.000 | 5.000 | 2123 | 985 | 0.3937 | 0.7480 | L-1910 |
629SSSD61 | 629SS | 9.000 | 26.000 | 8.000 | 4578 | 1970 | 0.3543 | 1.0236 | 629SSSD61 |
629DDSD61 | 629DD | 9.000 | 26.000 | 8.000 | 4578 | 1970 | 0.3543 | 1.0236 | 629DDSD61 |
629ZZSD61 | 629ZZ | 9.000 | 26.000 | 8.000 | 4578 | 1970 | 0.3543 | 1.0236 | 629ZZSD61 |
609SS | 609SS | 9.000 | 24.000 | 7.000 | 3297 | 1368 | 0.3543 | 0.9449 | 609SS |
609DD | 609DD | 9.000 | 24.000 | 7.000 | 3297 | 1368 | 0.3543 | 0.9449 | 609DD |
609ZZ | 609ZZ | 9.000 | 24.000 | 7.000 | 3297 | 1368 | 0.3543 | 0.9449 | 609ZZ |
609 | 609 | 9.000 | 24.000 | 7.000 | 3297 | 1368 | 0.3543 | 0.9449 | 609 |
L-2090KK | 699ZZ | 9.000 | 20.000 | 6.000 | 2123 | 985 | 0.3543 | 0.7874 | L-2090KK |
L-2090 | 699 | 9.000 | 20.000 | 6.000 | 2123 | 985 | 0.3543 | 0.7874 | L-2090 |
L-1790DD | - | 9.000 | 17.000 | 5.000 | 1724 | 813 | 0.3543 | 0.6693 | L-1790DD |
L-1790ZZ | - | 9.000 | 17.000 | 5.000 | 1724 | 813 | 0.3543 | 0.6693 | L-1790ZZ |
L-1790 | 689 | 9.000 | 17.000 | 4.000 | 1724 | 813 | 0.3543 | 0.6693 | L-1790 |
R-2480KK | 628ZZ | 8.000 | 24.000 | 8.000 | 3297 | 1368 | 0.3150 | 0.9449 | R-2480KK |
R-2480 | 628 | 8.000 | 24.000 | 8.000 | 3297 | 1368 | 0.3150 | 0.9449 | R-2480 |
608SS | 608SS | 8.000 | 22.000 | 7.000 | 3297 | 1368 | 0.3150 | 0.8661 | 608SS |
608DD | 608DD | 8.000 | 22.000 | 7.000 | 3297 | 1368 | 0.3150 | 0.8661 | 608DD |
608ZZ | 608ZZ | 8.000 | 22.000 | 7.000 | 3297 | 1368 | 0.3150 | 0.8661 | 608ZZ |
608 | 608 | 8.000 | 22.000 | 7.000 | 3297 | 1368 | 0.3150 | 0.8661 | 608 |
R-1980SS | 698SS | 8.000 | 19.000 | 6.000 | 2463 | 1059 | 0.3150 | 0.7480 | R-1980SS |
R-1980DD | 698DD | 8.000 | 19.000 | 6.000 | 2463 | 1059 | 0.3150 | 0.7480 | R-1980DD |
R-1980KK | 698ZZ | 8.000 | 19.000 | 6.000 | 2463 | 1059 | 0.3150 | 0.7480 | R-1980KK |
R-1980 | 698 | 8.000 | 19.000 | 6.000 | 2463 | 1059 | 0.3150 | 0.7480 | R-1980 |
L-1680DD | - | 8.000 | 16.000 | 5.000 | 1606 | 712 | 0.3150 | 0.6299 | L-1680DD |
L-1680KK | - | 8.000 | 16.000 | 5.000 | 1606 | 712 | 0.3150 | 0.6299 | L-1680KK |
L-1680 | 688 | 8.000 | 16.000 | 4.000 | 1606 | 712 | 0.3150 | 0.6299 | L-1680 |
L-1480DD | - | 8.000 | 14.000 | 4.000 | 819 | 386 | 0.3150 | 0.5512 | L-1480DD |
L-1480ZZ | - | 8.000 | 14.000 | 4.000 | 819 | 386 | 0.3150 | 0.5512 | L-1480ZZ |
L-1280DD | - | 8.000 | 12.000 | 3.500 | 506 | 249 | 0.3150 | 0.4724 | L-1280DD |
L-1280ZZ | - | 8.000 | 12.000 | 3.500 | 506 | 249 | 0.3150 | 0.4724 | L-1280ZZ |
627SS | 627SS | 7.000 | 22.000 | 7.000 | 3297 | 1368 | 0.2756 | 0.8661 | 627SS |
627DD | 627DD | 7.000 | 22.000 | 7.000 | 3297 | 1368 | 0.2756 | 0.8661 | 627DD |
627ZZ | 627ZZ | 7.000 | 22.000 | 7.000 | 3297 | 1368 | 0.2756 | 0.8661 | 627ZZ |
627 | 627 | 7.000 | 22.000 | 7.000 | 3297 | 1368 | 0.2756 | 0.8661 | 627 |
607SS | 607SS | 7.000 | 19.000 | 6.000 | 2614 | 1053 | 0.2756 | 0.7480 | 607SS |
607DD | 607DD | 7.000 | 19.000 | 6.000 | 2614 | 1053 | 0.2756 | 0.7480 | 607DD |
607ZZ | 607ZZ | 7.000 | 19.000 | 6.000 | 2614 | 1053 | 0.2756 | 0.7480 | 607ZZ |
607 | 607 | 7.000 | 19.000 | 6.000 | 2614 | 1053 | 0.2756 | 0.7480 | 607 |
L-1470KK | - | 7.000 | 14.000 | 5.000 | 1175 | 511 | 0.2756 | 0.5512 | L-1470KK |
L-1470 | 687 | 7.000 | 14.000 | 3.500 | 1175 | 511 | 0.2756 | 0.5512 | L-1470 |
L-1370ZZ | - | 7.000 | 13.000 | 4.000 | 880 | 414 | 0.2756 | 0.5118 | L-1370ZZ |
626SS | 626SS | 6.000 | 19.000 | 6.000 | 2614 | 1053 | 0.2362 | 0.7480 | 626SS |
626DD | 626DD | 6.000 | 19.000 | 6.000 | 2614 | 1053 | 0.2362 | 0.7480 | 626DD |
626ZZ | 626ZZ | 6.000 | 19.000 | 6.000 | 2614 | 1053 | 0.2362 | 0.7480 | 626ZZ |
626 | 626 | 6.000 | 19.000 | 6.000 | 2614 | 1053 | 0.2362 | 0.7480 | 626 |
R-1760X2DD | 606DD | 6.000 | 17.000 | 6.000 | 2265 | 839 | 0.2362 | 0.6693 | R-1760X2DD |
R-1760X2KK | 606ZZ | 6.000 | 17.000 | 6.000 | 2265 | 839 | 0.2362 | 0.6693 | R-1760X2KK |
R-1760X2 | 606 | 6.000 | 17.000 | 6.000 | 2265 | 839 | 0.2362 | 0.6693 | R-1760X2 |
R-1660DD | - | 6.000 | 16.000 | 5.000 | 1735 | 671 | 0.2362 | 0.6299 | R-1660DD |
R-1660HH | - | 6.000 | 16.000 | 5.000 | 1735 | 671 | 0.2362 | 0.6299 | R-1660HH |
R-1560X13DD | 696DD | 6.000 | 15.000 | 5.000 | 1735 | 671 | 0.2362 | 0.5906 | R-1560X13DD |
R-1560X13KK | 696ZZ | 6.000 | 15.000 | 5.000 | 1735 | 671 | 0.2362 | 0.5906 | R-1560X13KK |
L-1360DD | - | 6.000 | 13.000 | 5.000 | 1083 | 438 | 0.2362 | 0.5118 | L-1360DD |
L-1360ZZ | - | 6.000 | 13.000 | 5.000 | 1083 | 438 | 0.2362 | 0.5118 | L-1360ZZ |
L-1360 | 686 | 6.000 | 13.000 | 3.500 | 1083 | 438 | 0.2362 | 0.5118 | L-1360 |
L-1260X2DD | - | 6.000 | 12.000 | 4.000 | 831 | 363 | 0.2362 | 0.4724 | L-1260X2DD |
L-1260ZZ | - | 6.000 | 12.000 | 4.000 | 831 | 363 | 0.2362 | 0.4724 | L-1260ZZ |
L-1260 | - | 6.000 | 12.000 | 3.000 | 831 | 363 | 0.2362 | 0.4724 | L-1260 |
L-1060SS | - | 6.000 | 10.000 | 3.000 | 457 | 194 | 0.2362 | 0.3937 | L-1060SS |
L-1060DD | - | 6.000 | 10.000 | 3.000 | 457 | 194 | 0.2362 | 0.3937 | L-1060DD |
L-1060ZZ | - | 6.000 | 10.000 | 3.000 | 457 | 194 | 0.2362 | 0.3937 | L-1060ZZ |
L-1060 | 676 | 6.000 | 10.000 | 2.500 | 457 | 194 | 0.2362 | 0.3937 | L-1060 |
635ZZ | 635ZZ | 5.000 | 19.000 | 6.000 | 2614 | 1053 | 0.1969 | 0.7480 | 635ZZ |
635 | 635 | 5.000 | 19.000 | 6.000 | 2614 | 1053 | 0.1969 | 0.7480 | 635 |
R-1650SS | 625SS | 5.000 | 16.000 | 5.000 | 1735 | 671 | 0.1969 | 0.6299 | R-1650SS |
R-1650DD | 625DD | 5.000 | 16.000 | 5.000 | 1735 | 671 | 0.1969 | 0.6299 | R-1650DD |
R-1650HH | 625ZZ | 5.000 | 16.000 | 5.000 | 1735 | 671 | 0.1969 | 0.6299 | R-1650HH |
R-1650 | 625 | 5.000 | 16.000 | 5.000 | 1735 | 671 | 0.1969 | 0.6299 | R-1650 |
R-1450ZZ | 605ZZ | 5.000 | 14.000 | 5.000 | 1329 | 508 | 0.1969 | 0.5512 | R-1450ZZ |
R-1450 | 605 | 5.000 | 14.000 | 5.000 | 1329 | 508 | 0.1969 | 0.5512 | R-1450 |
R-1350X2SS | 695SS | 5.000 | 13.000 | 4.000 | 1074 | 422 | 0.1969 | 0.5118 | R-1350X2SS |
R-1350X2DD | 695DD | 5.000 | 13.000 | 4.000 | 1074 | 422 | 0.1969 | 0.5118 | R-1350X2DD |
R-1350X2ZZ | 695ZZ | 5.000 | 13.000 | 4.000 | 1074 | 422 | 0.1969 | 0.5118 | R-1350X2ZZ |
R-1350DD | 695DD | 5.000 | 13.000 | 4.000 | 1074 | 422 | 0.1969 | 0.5118 | R-1350DD |
R-1350ZZ | 695ZZ | 5.000 | 13.000 | 4.000 | 1074 | 422 | 0.1969 | 0.5118 | R-1350ZZ |
R-1350 | 695 | 5.000 | 13.000 | 4.000 | 1074 | 422 | 0.1969 | 0.5118 | R-1350 |
L-1150ZZY04 | - | 5.000 | 11.000 | 4.000 | 714 | 276 | 0.1969 | 0.4331 | L-1150ZZY04 |
L-1150ZZ | - | 5.000 | 11.000 | 5.000 | 714 | 276 | 0.1969 | 0.4331 | L-1150ZZ |
L-1150 | 685 | 5.000 | 11.000 | 3.000 | 714 | 276 | 0.1969 | 0.4331 | L-1150 |
L-1050SS | - | 5.000 | 10.000 | 4.000 | 714 | 276 | 0.1969 | 0.3937 | L-1050SS |
L-1050ZZ | - | 5.000 | 10.000 | 4.000 | 714 | 276 | 0.1969 | 0.3937 | L-1050ZZ |
L-1050 | - | 5.000 | 10.000 | 3.000 | 714 | 276 | 0.1969 | 0.3937 | L-1050 |
L-950ZZ | - | 5.000 | 9.000 | 3.000 | 495 | 207 | 0.1969 | 0.3543 | L-950ZZ |
L-850ZZ | - | 5.000 | 8.000 | 2.500 | 274 | 130 | 0.1969 | 0.3150 | L-850ZZ |
L-850 | 675 | 5.000 | 8.000 | 2.000 | 274 | 130 | 0.1969 | 0.3150 | L-850 |
R-1640DD | 634DD | 4.000 | 16.000 | 5.000 | 1735 | 671 | 0.1575 | 0.6299 | R-1640DD |
R-1640HH | 634ZZ | 4.000 | 16.000 | 5.000 | 1735 | 671 | 0.1575 | 0.6299 | R-1640HH |
R-1640 | 634 | 4.000 | 16.000 | 5.000 | 1735 | 671 | 0.1575 | 0.6299 | R-1640 |
R-1340DD | 624DD | 4.000 | 13.000 | 5.000 | 1306 | 487 | 0.1575 | 0.5118 | R-1340DD |
R-1340HH | 624ZZ | 4.000 | 13.000 | 5.000 | 1306 | 487 | 0.1575 | 0.5118 | R-1340HH |
R-1340 | 624 | 4.000 | 13.000 | 5.000 | 1306 | 487 | 0.1575 | 0.5118 | R-1340 |
R-1240KK1 | 604ZZ | 4.000 | 12.000 | 4.000 | 959 | 347 | 0.1575 | 0.4724 | R-1240KK1 |
R-1240 | 604 | 4.000 | 12.000 | 4.000 | 959 | 347 | 0.1575 | 0.4724 | R-1240 |
R-1140ZZ | 694ZZ | 4.000 | 11.000 | 4.000 | 714 | 276 | 0.1575 | 0.4331 | R-1140ZZ |
R-1140 | 694 | 4.000 | 11.000 | 4.000 | 714 | 276 | 0.1575 | 0.4331 | R-1140 |
L-1040X2ZZ | - | 4.000 | 10.000 | 4.000 | 708 | 266 | 0.1575 | 0.3937 | L-1040X2ZZ |
L-1040X2 | - | 4.000 | 10.000 | 3.000 | 708 | 266 | 0.1575 | 0.3937 | L-1040X2 |
L-940ZZ | - | 4.000 | 9.000 | 4.000 | 641 | 226 | 0.1575 | 0.3543 | L-940ZZ |
L-940 | 684 | 4.000 | 9.000 | 2.500 | 641 | 226 | 0.1575 | 0.3543 | L-940 |
L-840ZZ | - | 4.000 | 8.000 | 3.000 | 391 | 140 | 0.1575 | 0.3150 | L-840ZZ |
L-740ZZ | 674ZZ | 4.000 | 7.000 | 2.500 | 252 | 106 | 0.1575 | 0.2756 | L-740ZZ |
R-1030ZZ | 623ZZ | 3.000 | 10.000 | 4.000 | 641 | 226 | 0.1181 | 0.3937 | R-1030ZZ |
R-1030 | 623 | 3.000 | 10.000 | 4.000 | 641 | 226 | 0.1181 | 0.3937 | R-1030 |
R-930ZZY04 | - | 3.000 | 9.000 | 4.000 | 634 | 219 | 0.1181 | 0.3543 | R-930ZZY04 |
R-830X10ZZ | - | 3.000 | 8.000 | 4.000 | 553 | 176 | 0.1181 | 0.3150 | R-830X10ZZ |
R-830ZZ | - | 3.000 | 8.000 | 4.000 | 553 | 176 | 0.1181 | 0.3150 | R-830ZZ |
R-830 | 693 | 3.000 | 8.000 | 3.000 | 553 | 176 | 0.1181 | 0.3150 | R-830 |
L-730ZZ | - | 3.000 | 7.000 | 3.000 | 384 | 129 | 0.1181 | 0.2756 | L-730ZZ |
L-730 | 683 | 3.000 | 7.000 | 2.000 | 384 | 129 | 0.1181 | 0.2756 | L-730 |
L-630ZZ | - | 3.000 | 6.000 | 2.500 | 206 | 73 | 0.1181 | 0.2362 | L-630ZZ |
L-630 | 673 | 3.000 | 6.000 | 2.000 | 206 | 73 | 0.1181 | 0.2362 | L-630 |
R-825ZZ | - | 2.500 | 8.000 | 4.000 | 553 | 176 | 0.0984 | 0.3150 | R-825ZZ |
R-725ZZ | - | 2.500 | 7.000 | 3.500 | 380 | 126 | 0.0984 | 0.2756 | R-725ZZ |
L-625ZZ | - | 2.500 | 6.000 | 2.600 | 206 | 73 | 0.0984 | 0.2362 | L-625ZZ |
R-720ZZ | - | 2.000 | 7.000 | 3.500 | 380 | 126 | 0.0787 | 0.2756 | R-720ZZ |
R-620ZZY52 | - | 2.000 | 6.000 | 2.500 | 330 | 99 | 0.0787 | 0.2362 | R-620ZZY52 |
R-620W52 | - | 2.000 | 6.000 | 2.500 | 330 | 99 | 0.0787 | 0.2362 | R-620W52 |
R-620ZZ | - | 2.000 | 6.000 | 3.000 | 330 | 99 | 0.0787 | 0.2362 | R-620ZZ |
L-520X9ZZW52 | - | 2.000 | 5.000 | 2.500 | 186 | 58 | 0.0787 | 0.1969 | L-520X9ZZW52 |
L-520ZZW52 | - | 2.000 | 5.000 | 2.500 | 187 | 59 | 0.0787 | 0.1969 | L-520ZZW52 |
L-520W52 | - | 2.000 | 5.000 | 2.500 | 187 | 59 | 0.0787 | 0.1969 | L-520W52 |
L-520ZZ | - | 2.000 | 5.000 | 2.300 | 187 | 59 | 0.0787 | 0.1969 | L-520ZZ |
L-520 | 682 | 2.000 | 5.000 | 1.500 | 187 | 59 | 0.0787 | 0.1969 | L-520 |
L-415X5ZZ | 68/1.5ZZ | 1.500 | 4.000 | 2.000 | 113 | 34 | 0.0591 | 0.1575 | L-415X5ZZ |
L-415 | 68/1.5 | 1.500 | 4.000 | 1.200 | 125 | 38 | 0.0591 | 0.1575 | L-415 |
L-310 | 681 | 1.000 | 3.000 | 1.000 | 80 | 23 | 0.0394 | 0.1181 | L-310 |
Flanged deep groove ball bearings
NMB Parts No. | ISO/JIS | Inner Diameter(d) [mm] |
Outer Diameter(D) [mm] |
Width(B) [mm] |
Dynamic Load Rating(Cr) [N] |
Static Load Rating(Cor) [N] |
Inner Diameter(d) [in] |
Outer Diameter(D) [in] |
CAD Data |
---|---|---|---|---|---|---|---|---|---|
RIF-1438DD | - | 9.525 | 22.225 | 7.142 | 3297 | 1368 | 0.3750 | 0.8750 | RIF-1438DD |
RIF-1438KK | - | 9.525 | 22.225 | 7.142 | 3297 | 1368 | 0.3750 | 0.8750 | RIF-1438KK |
DDRIF-1438ZZ | - | 9.525 | 22.225 | 7.142 | 3297 | 1368 | 0.3750 | 0.8750 | DDRIF-1438ZZ |
DDRIF-8516ZZ | - | 7.938 | 12.700 | 3.967 | 878 | 419 | 0.3125 | 0.5000 | DDRIF-8516ZZ |
DDRIF-8516 | - | 7.938 | 12.700 | 3.967 | 878 | 419 | 0.3125 | 0.5000 | DDRIF-8516 |
RF-4HH | - | 6.350 | 15.875 | 4.978 | 1470 | 599 | 0.2500 | 0.6250 | RF-4HH |
DDRF-4HH | - | 6.350 | 15.875 | 4.978 | 1470 | 599 | 0.2500 | 0.6250 | DDRF-4HH |
DDRIF-814ZZ | - | 6.350 | 12.700 | 4.762 | 828 | 374 | 0.2500 | 0.5000 | DDRIF-814ZZ |
DDRIF-814 | - | 6.350 | 12.700 | 3.175 | 828 | 374 | 0.2500 | 0.5000 | DDRIF-814 |
DDRIF-614ZZ | - | 6.350 | 9.525 | 3.175 | 417 | 205 | 0.2500 | 0.3750 | DDRIF-614ZZ |
DDRIF-614 | - | 6.350 | 9.525 | 3.175 | 417 | 205 | 0.2500 | 0.3750 | DDRIF-614 |
DDRF-3ZZ | - | 4.762 | 12.700 | 4.978 | 1306 | 487 | 0.1875 | 0.5000 | DDRF-3ZZ |
DDRF-3 | - | 4.762 | 12.700 | 3.967 | 1306 | 487 | 0.1875 | 0.5000 | DDRF-3 |
DDRIF-6632ZZ | - | 4.762 | 9.525 | 3.175 | 712 | 271 | 0.1875 | 0.3750 | DDRIF-6632ZZ |
DDRIF-6632 | - | 4.762 | 9.525 | 3.175 | 712 | 271 | 0.1875 | 0.3750 | DDRIF-6632 |
DDRIF-5632ZZ | - | 4.762 | 7.938 | 3.175 | 391 | 142 | 0.1875 | 0.3125 | DDRIF-5632ZZ |
DDRIF-5632 | - | 4.762 | 7.938 | 2.779 | 391 | 142 | 0.1875 | 0.3125 | DDRIF-5632 |
DDRIF-5532ZZ | - | 3.967 | 7.938 | 3.175 | 391 | 142 | 0.1562 | 0.3125 | DDRIF-5532ZZ |
DDRIF-618ZZ | - | 3.175 | 9.525 | 3.571 | 563 | 183 | 0.1250 | 0.3750 | DDRIF-618ZZ |
DDRIF-618 | - | 3.175 | 9.525 | 2.779 | 563 | 183 | 0.1250 | 0.3750 | DDRIF-618 |
DDRF-2ZZ | - | 3.175 | 9.525 | 3.967 | 641 | 226 | 0.1250 | 0.3750 | DDRF-2ZZ |
DDRF-2 | - | 3.175 | 9.525 | 3.967 | 641 | 226 | 0.1250 | 0.3750 | DDRF-2 |
DDRIF-518ZZ | - | 3.175 | 7.938 | 3.571 | 563 | 183 | 0.1250 | 0.3125 | DDRIF-518ZZ |
DDRIF-518 | - | 3.175 | 7.938 | 2.779 | 563 | 183 | 0.1250 | 0.3125 | DDRIF-518 |
DDRIF-418ZZ | - | 3.175 | 6.350 | 2.779 | 285 | 97 | 0.1250 | 0.2500 | DDRIF-418ZZ |
DDRIF-418 | - | 3.175 | 6.350 | 2.380 | 285 | 97 | 0.1250 | 0.2500 | DDRIF-418 |
DDRIF-5ZZ | - | 2.380 | 7.938 | 3.571 | 563 | 183 | 0.0937 | 0.3125 | DDRIF-5ZZ |
DDRIF-5 | - | 2.380 | 7.938 | 2.779 | 563 | 183 | 0.0937 | 0.3125 | DDRIF-5 |
DDRIF-3332ZZ | - | 2.380 | 4.762 | 2.380 | 187 | 59 | 0.0937 | 0.1875 | DDRIF-3332ZZ |
DDRIF-3332 | - | 2.380 | 4.762 | 1.588 | 187 | 59 | 0.0937 | 0.1875 | DDRIF-3332 |
DDRIF-4ZZ | - | 1.984 | 6.350 | 3.571 | 330 | 99 | 0.0781 | 0.2500 | DDRIF-4ZZ |
DDRIF-4 | - | 1.984 | 6.350 | 2.380 | 330 | 99 | 0.0781 | 0.2500 | DDRIF-4 |
DDRIF-3 | - | 1.397 | 4.762 | 1.984 | 264 | 71 | 0.0550 | 0.1875 | DDRIF-3 |
DDRIF-2X2 | - | 1.016 | 3.175 | 1.191 | 106 | 28 | 0.0400 | 0.1250 | DDRIF-2X2 |
DDRF-2210X2HH | F6900ZZ | 10.000 | 22.000 | 6.000 | 2697 | 1273 | 0.3937 | 0.8661 | DDRF-2210X2HH |
DDLF-1910ZZ | - | 10.000 | 19.000 | 7.000 | 2123 | 985 | 0.3937 | 0.7480 | DDLF-1910ZZ |
DDLF-1790ZZ | - | 9.000 | 17.000 | 5.000 | 1724 | 813 | 0.3543 | 0.6693 | DDLF-1790ZZ |
DDLF-1790 | F689 | 9.000 | 17.000 | 4.000 | 1724 | 813 | 0.3543 | 0.6693 | DDLF-1790 |
RF-2280HH | F608ZZ | 8.000 | 22.000 | 7.000 | 3297 | 1368 | 0.3150 | 0.8661 | RF-2280HH |
RF-2280 | F608 | 8.000 | 22.000 | 7.000 | 3297 | 1368 | 0.3150 | 0.8661 | RF-2280 |
DDRF-2280HH | F608ZZ | 8.000 | 22.000 | 7.000 | 3297 | 1368 | 0.3150 | 0.8661 | DDRF-2280HH |
DDRF-2280 | F608 | 8.000 | 22.000 | 7.000 | 3297 | 1368 | 0.3150 | 0.8661 | DDRF-2280 |
DDRF-1980DD | F698DD | 8.000 | 19.000 | 6.000 | 2463 | 1059 | 0.3150 | 0.7480 | DDRF-1980DD |
DDRF-1980ZZ | F698ZZ | 8.000 | 19.000 | 6.000 | 2240 | 912 | 0.3150 | 0.7480 | DDRF-1980ZZ |
DDRF-1980 | F698 | 8.000 | 19.000 | 6.000 | 2240 | 912 | 0.3150 | 0.7480 | DDRF-1980 |
LF-1680HH | - | 8.000 | 16.000 | 5.000 | 1606 | 712 | 0.3150 | 0.6299 | LF-1680HH |
DDLF-1680HH | - | 8.000 | 16.000 | 5.000 | 1606 | 712 | 0.3150 | 0.6299 | DDLF-1680HH |
DDLF-1680 | F688 | 8.000 | 16.000 | 4.000 | 1606 | 712 | 0.3150 | 0.6299 | DDLF-1680 |
LF-1480DD | - | 8.000 | 14.000 | 4.000 | 819 | 386 | 0.3150 | 0.5512 | LF-1480DD |
LF-1480X3ZZ | - | 8.000 | 14.000 | 4.000 | 878 | 419 | 0.3150 | 0.5512 | LF-1480X3ZZ |
DDLF-1480ZZ | - | 8.000 | 14.000 | 4.000 | 819 | 386 | 0.3150 | 0.5512 | DDLF-1480ZZ |
DDLF-1480 | - | 8.000 | 14.000 | 3.500 | 819 | 386 | 0.3150 | 0.5512 | DDLF-1480 |
DDLF-1280DD | - | 8.000 | 12.000 | 3.500 | 506 | 249 | 0.3150 | 0.4724 | DDLF-1280DD |
DDLF-1280ZZ | - | 8.000 | 12.000 | 3.500 | 506 | 249 | 0.3150 | 0.4724 | DDLF-1280ZZ |
DDLF-1280 | F678 | 8.000 | 12.000 | 2.500 | 506 | 249 | 0.3150 | 0.4724 | DDLF-1280 |
DDRF-2270HH | F627ZZ | 7.000 | 22.000 | 7.000 | 3297 | 1368 | 0.2756 | 0.8661 | DDRF-2270HH |
DDRF-2270 | F627 | 7.000 | 22.000 | 7.000 | 3297 | 1368 | 0.2756 | 0.8661 | DDRF-2270 |
DDRF-1970DD | F607DD | 7.000 | 19.000 | 6.000 | 2240 | 912 | 0.2756 | 0.7480 | DDRF-1970DD |
DDRF-1970ZZ | F607ZZ | 7.000 | 19.000 | 6.000 | 2240 | 912 | 0.2756 | 0.7480 | DDRF-1970ZZ |
DDLF-1470ZZ | - | 7.000 | 14.000 | 5.000 | 1175 | 511 | 0.2756 | 0.5512 | DDLF-1470ZZ |
DDLF-1470 | F687 | 7.000 | 14.000 | 3.500 | 1175 | 511 | 0.2756 | 0.5512 | DDLF-1470 |
DDLF-1370ZZ | - | 7.000 | 13.000 | 4.000 | 880 | 414 | 0.2756 | 0.5118 | DDLF-1370ZZ |
DDLF-1370 | - | 7.000 | 13.000 | 3.000 | 880 | 414 | 0.2756 | 0.5118 | DDLF-1370 |
DDLF-1170ZZ | - | 7.000 | 11.000 | 3.000 | 449 | 199 | 0.2756 | 0.4331 | DDLF-1170ZZ |
DDLF-1170 | F677 | 7.000 | 11.000 | 2.500 | 449 | 199 | 0.2756 | 0.4331 | DDLF-1170 |
RF-1960ZZ | F626ZZ | 6.000 | 19.000 | 6.000 | 2805 | 1060 | 0.2362 | 0.7480 | RF-1960ZZ |
DDRF-1960ZZ | F626ZZ | 6.000 | 19.000 | 6.000 | 2805 | 1060 | 0.2362 | 0.7480 | DDRF-1960ZZ |
DDRF-1960 | F626 | 6.000 | 19.000 | 6.000 | 2805 | 1060 | 0.2362 | 0.7480 | DDRF-1960 |
RF-1760X2ZZ | F606ZZ | 6.000 | 17.000 | 6.000 | 2265 | 839 | 0.2362 | 0.6693 | RF-1760X2ZZ |
DDRF-1760X2ZZ | F606ZZ | 6.000 | 17.000 | 6.000 | 2265 | 839 | 0.2362 | 0.6693 | DDRF-1760X2ZZ |
DDRF-1760X2 | F606 | 6.000 | 17.000 | 6.000 | 2265 | 839 | 0.2362 | 0.6693 | DDRF-1760X2 |
DDRF-1560ZZ | F696ZZ | 6.000 | 15.000 | 5.000 | 1735 | 671 | 0.2362 | 0.5906 | DDRF-1560ZZ |
DDRF-1560 | F696 | 6.000 | 15.000 | 5.000 | 1735 | 671 | 0.2362 | 0.5906 | DDRF-1560 |
LF-1360ZZ | - | 6.000 | 13.000 | 5.000 | 1083 | 438 | 0.2362 | 0.5118 | LF-1360ZZ |
DDLF-1360ZZ | - | 6.000 | 13.000 | 5.000 | 1083 | 438 | 0.2362 | 0.5118 | DDLF-1360ZZ |
DDLF-1360 | F686 | 6.000 | 13.000 | 3.500 | 1083 | 438 | 0.2362 | 0.5118 | DDLF-1360 |
LF-1260ZZ | - | 6.000 | 12.000 | 4.000 | 831 | 363 | 0.2362 | 0.4724 | LF-1260ZZ |
DDLF-1260ZZ | - | 6.000 | 12.000 | 4.000 | 831 | 363 | 0.2362 | 0.4724 | DDLF-1260ZZ |
DDLF-1260 | - | 6.000 | 12.000 | 3.000 | 831 | 363 | 0.2362 | 0.4724 | DDLF-1260 |
LF-1060ZZ | - | 6.000 | 10.000 | 3.000 | 457 | 194 | 0.2362 | 0.3937 | LF-1060ZZ |
DDLF-1060ZZ | - | 6.000 | 10.000 | 3.000 | 457 | 194 | 0.2362 | 0.3937 | DDLF-1060ZZ |
DDLF-1060 | F676 | 6.000 | 10.000 | 2.500 | 457 | 194 | 0.2362 | 0.3937 | DDLF-1060 |
DDRF-1950ZZ | F635ZZ | 5.000 | 19.000 | 6.000 | 2805 | 1060 | 0.1969 | 0.7480 | DDRF-1950ZZ |
DDRF-1950 | F635 | 5.000 | 19.000 | 6.000 | 2805 | 1060 | 0.1969 | 0.7480 | DDRF-1950 |
DDRF-1650HH | F625ZZ | 5.000 | 16.000 | 5.000 | 1735 | 671 | 0.1969 | 0.6299 | DDRF-1650HH |
DDRF-1650 | F625 | 5.000 | 16.000 | 5.000 | 1735 | 671 | 0.1969 | 0.6299 | DDRF-1650 |
RF-1450ZZ | F605ZZ | 5.000 | 14.000 | 5.000 | 1329 | 508 | 0.1969 | 0.5512 | RF-1450ZZ |
DDRF-1450ZZ | F605ZZ | 5.000 | 14.000 | 5.000 | 1329 | 508 | 0.1969 | 0.5512 | DDRF-1450ZZ |
DDRF-1450 | F605 | 5.000 | 14.000 | 5.000 | 1329 | 508 | 0.1969 | 0.5512 | DDRF-1450 |
DDRF-1350ZZ | F695ZZ | 5.000 | 13.000 | 4.000 | 1074 | 422 | 0.1969 | 0.5118 | DDRF-1350ZZ |
DDRF-1350 | F695 | 5.000 | 13.000 | 4.000 | 1074 | 422 | 0.1969 | 0.5118 | DDRF-1350 |
LF-1150ZZ | - | 5.000 | 11.000 | 5.000 | 714 | 276 | 0.1969 | 0.4331 | LF-1150ZZ |
DDLF-1150ZZ | - | 5.000 | 11.000 | 5.000 | 714 | 276 | 0.1969 | 0.4331 | DDLF-1150ZZ |
DDLF-1150 | F685 | 5.000 | 11.000 | 3.000 | 714 | 276 | 0.1969 | 0.4331 | DDLF-1150 |
LF-1050ZZ | - | 5.000 | 10.000 | 4.000 | 714 | 276 | 0.1969 | 0.3937 | LF-1050ZZ |
DDLF-1050ZZ | - | 5.000 | 10.000 | 4.000 | 714 | 276 | 0.1969 | 0.3937 | DDLF-1050ZZ |
DDLF-1050 | - | 5.000 | 10.000 | 3.000 | 714 | 276 | 0.1969 | 0.3937 | DDLF-1050 |
DDLF-950ZZ | - | 5.000 | 9.000 | 3.000 | 495 | 207 | 0.1969 | 0.3543 | DDLF-950ZZ |
DDLF-950 | - | 5.000 | 9.000 | 2.500 | 495 | 207 | 0.1969 | 0.3543 | DDLF-950 |
DDLF-850ZZ | - | 5.000 | 8.000 | 2.500 | 274 | 130 | 0.1969 | 0.3150 | DDLF-850ZZ |
DDLF-850 | F675 | 5.000 | 8.000 | 2.000 | 274 | 130 | 0.1969 | 0.3150 | DDLF-850 |
DDRF-1640ZZ | F634ZZ | 4.000 | 16.000 | 5.000 | 1735 | 671 | 0.1575 | 0.6299 | DDRF-1640ZZ |
DDRF-1340ZZ | F624ZZ | 4.000 | 13.000 | 5.000 | 1306 | 487 | 0.1575 | 0.5118 | DDRF-1340ZZ |
DDRF-1340 | F624 | 4.000 | 13.000 | 5.000 | 1306 | 487 | 0.1575 | 0.5118 | DDRF-1340 |
DDRF-1240ZZ | F604ZZ | 4.000 | 12.000 | 4.000 | 959 | 347 | 0.1575 | 0.4724 | DDRF-1240ZZ |
DDRF-1240 | F604 | 4.000 | 12.000 | 4.000 | 959 | 347 | 0.1575 | 0.4724 | DDRF-1240 |
DDRF-1140ZZ | F694ZZ | 4.000 | 11.000 | 4.000 | 714 | 276 | 0.1575 | 0.4331 | DDRF-1140ZZ |
DDLF-1040ZZ | - | 4.000 | 10.000 | 4.000 | 708 | 266 | 0.1575 | 0.3937 | DDLF-1040ZZ |
DDLF-1040 | - | 4.000 | 10.000 | 3.000 | 708 | 266 | 0.1575 | 0.3937 | DDLF-1040 |
DDLF-940ZZ | - | 4.000 | 9.000 | 4.000 | 641 | 226 | 0.1575 | 0.3543 | DDLF-940ZZ |
DDLF-940 | F684 | 4.000 | 9.000 | 2.500 | 641 | 226 | 0.1575 | 0.3543 | DDLF-940 |
DDLF-840ZZ | - | 4.000 | 8.000 | 3.000 | 391 | 140 | 0.1575 | 0.3150 | DDLF-840ZZ |
DDLF-840 | - | 4.000 | 8.000 | 2.000 | 391 | 140 | 0.1575 | 0.3150 | DDLF-840 |
DDLF-740ZZ | - | 4.000 | 7.000 | 2.500 | 252 | 106 | 0.1575 | 0.2756 | DDLF-740ZZ |
DDLF-740 | F674 | 4.000 | 7.000 | 2.000 | 252 | 106 | 0.1575 | 0.2756 | DDLF-740 |
DDRF-1030ZZ | F623ZZ | 3.000 | 10.000 | 4.000 | 641 | 226 | 0.1181 | 0.3937 | DDRF-1030ZZ |
DDRF-930ZZ | - | 3.000 | 9.000 | 5.000 | 634 | 219 | 0.1181 | 0.3543 | DDRF-930ZZ |
DDRF-830ZZ | - | 3.000 | 8.000 | 4.000 | 553 | 176 | 0.1181 | 0.3150 | DDRF-830ZZ |
DDRF-830 | F693 | 3.000 | 8.000 | 3.000 | 553 | 176 | 0.1181 | 0.3150 | DDRF-830 |
DDLF-730ZZ | - | 3.000 | 7.000 | 3.000 | 384 | 129 | 0.1181 | 0.2756 | DDLF-730ZZ |
DDLF-730 | F683 | 3.000 | 7.000 | 2.000 | 384 | 129 | 0.1181 | 0.2756 | DDLF-730 |
DDLF-630ZZ | - | 3.000 | 6.000 | 2.500 | 206 | 73 | 0.1181 | 0.2362 | DDLF-630ZZ |
DDLF-630 | F673 | 3.000 | 6.000 | 2.000 | 206 | 73 | 0.1181 | 0.2362 | DDLF-630 |
DDRF-825ZZ | - | 2.500 | 8.000 | 4.000 | 553 | 176 | 0.0984 | 0.3150 | DDRF-825ZZ |
DDRF-725ZZ | - | 2.500 | 7.000 | 3.500 | 380 | 126 | 0.0984 | 0.2756 | DDRF-725ZZ |
DDLF-625ZZ | - | 2.500 | 6.000 | 2.600 | 206 | 73 | 0.0984 | 0.2362 | DDLF-625ZZ |
DDRF-720ZZ | - | 2.000 | 7.000 | 3.500 | 380 | 126 | 0.0787 | 0.2756 | DDRF-720ZZ |
DDRF-620ZZ | - | 2.000 | 6.000 | 3.000 | 330 | 99 | 0.0787 | 0.2362 | DDRF-620ZZ |
DDRF-620 | F692 | 2.000 | 6.000 | 2.300 | 279 | 89 | 0.0787 | 0.2362 | DDRF-620 |
DDLF-520ZZ | - | 2.000 | 5.000 | 2.300 | 187 | 59 | 0.0787 | 0.1969 | DDLF-520ZZ |
DDLF-520 | F682 | 2.000 | 5.000 | 1.500 | 187 | 59 | 0.0787 | 0.1969 | DDLF-520 |
DDRF-615ZZ | - | 1.500 | 6.000 | 3.000 | 324 | 97 | 0.0591 | 0.2362 | DDRF-615ZZ |
DDRF-515ZZ | - | 1.500 | 5.000 | 2.600 | 184 | 57 | 0.0591 | 0.1969 | DDRF-515ZZ |
DDRF-515 | F69/1.5 | 1.500 | 5.000 | 2.000 | 184 | 57 | 0.0591 | 0.1969 | DDRF-515 |
DDLF-415ZZ | - | 1.500 | 4.000 | 2.000 | 125 | 38 | 0.0591 | 0.1575 | DDLF-415ZZ |
DDLF-415 | F68/1.5 | 1.500 | 4.000 | 1.200 | 125 | 38 | 0.0591 | 0.1575 | DDLF-415 |
DDLF-310 | F681 | 1.000 | 3.000 | 1.000 | 80 | 23 | 0.0394 | 0.1181 | DDLF-310 |
Deep groove ball bearings with locating snap ring
NMB Parts No. | ISO/JIS | Inner Diameter(d) [mm] |
Outer Diameter(D) [mm] |
Width(B) [mm] |
Dynamic Load Rating(Cr) [N] |
Static Load Rating(Cor) [N] |
Inner Diameter(d) [in] |
Outer Diameter(D) [in] |
CAD Data |
---|---|---|---|---|---|---|---|---|---|
RNR-2412X3KK | 6901ZZNR | 12.000 | 24.000 | 6.000 | 3082 | 1433 | 0.4724 | 0.9449 | RNR-2412X3KK |
RNR-2210X9KKSD21 | 6900ZZNR | 10.000 | 22.000 | 6.000 | 2697 | 1273 | 0.3937 | 0.8661 | RNR-2210X9KKSD21 |
608DDNRSD06 | 608DDNR | 8.000 | 22.000 | 7.000 | 3297 | 1368 | 0.3150 | 0.8661 | 608DDNRSD06 |
608ZZNRSD06 | 608ZZNR | 8.000 | 22.000 | 7.000 | 3297 | 1368 | 0.3150 | 0.8661 | 608ZZNRSD06 |
LNR-1680DD | - | 8.000 | 16.000 | 5.000 | 1606 | 712 | 0.3150 | 0.6299 | LNR-1680DD |
LNR-1680KK | - | 8.000 | 16.000 | 5.000 | 1606 | 712 | 0.3150 | 0.6299 | LNR-1680KK |
RNR-4KK | - | 6.350 | 15.875 | 4.978 | 1470 | 599 | 0.2500 | 0.6250 | RNR-4KK |
626DDNR | 626DDNR | 6.000 | 19.000 | 6.000 | 2614 | 1053 | 0.2362 | 0.7480 | 626DDNR |
626ZZNR | 626ZZNR | 6.000 | 19.000 | 6.000 | 2614 | 1053 | 0.2362 | 0.7480 | 626ZZNR |
RNR-1760X2DD | 606DDNR | 6.000 | 17.000 | 6.000 | 2265 | 839 | 0.2362 | 0.6693 | RNR-1760X2DD |
RNR-1760X2ZZ | 606ZZNR | 6.000 | 17.000 | 6.000 | 2265 | 839 | 0.2362 | 0.6693 | RNR-1760X2ZZ |
RNR-1560DD | 696DDNR | 6.000 | 15.000 | 5.000 | 1735 | 671 | 0.2362 | 0.5906 | RNR-1560DD |
RNR-1560ZZ | 696ZZNR | 6.000 | 15.000 | 5.000 | 1735 | 671 | 0.2362 | 0.5906 | RNR-1560ZZ |
LNR-1360X3ZZ | 686ZZNR | 6.000 | 13.000 | 5.000 | 831 | 363 | 0.2362 | 0.5118 | LNR-1360X3ZZ |
RNR-1350DD | 695DDNR | 5.000 | 13.000 | 4.000 | 1074 | 422 | 0.1969 | 0.5118 | RNR-1350DD |
RNR-1350ZZ | 695ZZNR | 5.000 | 13.000 | 4.000 | 1074 | 422 | 0.1969 | 0.5118 | RNR-1350ZZ |
Rotary Components
FDB Motor
Parts | Rated Voltage [V] |
Rated Speed [rpm] |
Power at rated speed [W] |
Friction Torque at rated speed [mN・m] |
Current at rated Speed (without load) [A] |
|
---|---|---|---|---|---|---|
BLDC FDB SP2B | 5 | 3600 | 0.45 | 1.19 | 0.18 |
Fan Motors
AC fan motors
AC fan motors
Parts | Size (W) [mm] |
Size (H) [mm] |
Thickness(L) [mm] |
Rating Voltage [V] |
Max. Air Flow lower limit [m3/min] |
Max. Air Flow upper limit [m3/min] |
Max. Static Pressure lower limit [Pa] |
Max. Static Pressure upper limit [Pa] |
|
---|---|---|---|---|---|---|---|---|---|
11938SB | 119 | 119 | 38 | 100, 115, 200, 220, 230, 240 | 2.60 | 3.00 | 94.0 | 100.0 | |
11938MB Special Edition | 119 | 119 | 38 | 100, 115, 200, 220, 230, 240 | 2.50 | 2.90 | 63.8 | 76.5 | |
11938MB | 119 | 119 | 38 | 100, 115, 200, 220, 230, 240 | 2.50 | 2.90 | 63.8 | 76.5 | |
11925PB | 119 | 119 | 25 | 100, 115, 200, 220, 230, 240 | 1.70 | 2.00 | 41.2 | 41.2 | |
09238SB | 92 | 92 | 38 | 100, 115, 200, 220, 230, 240 | 1.05 | 1.25 | 63.0 | 80.0 | |
09225PB | 92 | 92 | 25 | 100, 115, 200, 220, 230, 240 | 0.80 | 0.98 | 43.1 | 60.9 | |
08038PB | 80 | 80 | 38 | 100, 115, 200, 220, 230, 240 | 0.75 | 0.90 | 34.4 | 49.1 | |
08025MB | 80 | 80 | 25 | 100, 115, 200, 220, 230, 240 | 0.57 | 0.68 | 39.0 | 55.0 | |
06030PB | 60 | 60 | 30 | 100, 115 | 0.20 | 0.26 | 13.7 | 22.6 |
AC fan motors for industrial use
Parts | Power lower limit [W] |
Power upper limit [W] |
rated speed lower limit [min-1] |
rated speed upper limit [min-1] |
Max. Air Flow lower limit [m3/min] |
Max. Air Flow upper limit [m3/min] |
Max. Static Pressure lower limit [Pa] |
Max. Static Pressure upper limit [Pa] |
---|---|---|---|---|---|---|---|---|
PT13839 | 73 | 114 | 1350 | 1600 | 26.20 | 34.30 | 143.0 | 196.0 |
PT9833 | 103 | 190 | 2600 | 3100 | 17.70 | 23.50 | 166.0 | 305.0 |
PT8330 | 35 | 82 | 2500 | 3050 | 12.00 | 14.30 | 108.0 | 244.0 |
PT7126 | 37 | 75 | 2660 | 3250 | 7.60 | 10.00 | 130.0 | 220.0 |
RT6925 | 49 | 95 | 2450 | 3250 | 4.00 | 5.50 | 240.0 | 365.0 |
RT6323 | 35 | 58 | 2050 | 2900 | 3.10 | 4.20 | 170.0 | 243.0 |
PT5921 | 22 | 33 | 2500 | 3200 | 3.30 | 4.50 | 90.0 | 156.0 |
RT5318 | 27 | 35 | 2450 | 2950 | 1.60 | 2.30 | 155.0 | 223.0 |
PT4720 | 25 | 30 | 2550 | 3050 | 1.70 | 2.70 | 48.0 | 70.0 |
DC fan motors
General purpose
Parts | Size (W) [mm] |
Size (H) [mm] |
Thickness(L) [mm] |
Rating Voltage [V] |
Max. Air Flow lower limit [m3/min] |
Max. Air Flow upper limit [m3/min] |
Max. Static Pressure lower limit [Pa] |
Max. Static Pressure upper limit [Pa] |
Associated Data |
---|---|---|---|---|---|---|---|---|---|
11938KA | 119 | 119 | 38 | 12, 24, 48 | 3.070 | 3.680 | 68.1 | 110.0 | PDF product catalog |
11925SA | 119 | 119 | 25 | 12, 24 | 1.900 | 3.630 | 28.5 | 89.0 | PDF product catalog |
09225SA | 92 | 92 | 25 | 12, 24 | 1.130 | 1.840 | 29.0 | 73.0 | PDF product catalog |
08025SA | 80 | 80 | 25 | 12, 24 | 0.860 | 1.700 | 21.5 | 82.0 | PDF product catalog |
06025SA | 60 | 60 | 25 | 12, 24 | 0.480 | 1.070 | 35.0 | 158.5 | PDF product catalog |
Industrial
Parts | Size (W) [mm] |
Size (H) [mm] |
Thickness(L) [mm] |
Rating Voltage [V] |
Max. Air Flow lower limit [m3/min] |
Max. Air Flow upper limit [m3/min] |
Max. Static Pressure lower limit [Pa] |
Max. Static Pressure upper limit [Pa] |
Associated Data |
---|---|---|---|---|---|---|---|---|---|
06025VA | 60 | 60 | 25 | 24 | 0.680 | 1.110 | 107.0 | 244.0 | PDF product catalog |
06020VA | 60 | 60 | 20 | 24 | 0.700 | 0.700 | 100.0 | 100.0 | PDF product catalog |
06015VA | 60 | 60 | 15 | 12, 24 | 0.450 | 0.550 | 48.3 | 67.7 | PDF product catalog |
04020VA | 40 | 40 | 20 | 12, 24 | 0.250 | 0.380 | 58.8 | 165.0 | PDF product catalog |
Semiconductors
Power Supply IC > Reset ICs
Series name | Absolute maximum rating [V] |
Recommended operating voltage Min. [V] |
Recommended operating voltage Max. [V] |
Detection voltage Min. [V] |
Detection voltage Max. [V] |
Detection voltage accuracy [%] |
Consumption current [μA] |
---|---|---|---|---|---|---|---|
PST810 | 7.0 | 1.10 | 6.00 | 1.6 | 5.0 | ±1 | 0.50 |
PST809 | 7.0 | 1.10 | 6.00 | 1.6 | 5.0 | ±1 | 0.50 |
PST804 | 7.0 | 1.10 | 6.00 | 1.6 | 5.0 | ±1 | 0.50 |
PST803 | 7.0 | 1.10 | 6.00 | 1.6 | 5.0 | ±1 | 0.50 |
PST88xR | 6.0 | 1.20 | 5.50 | 1.6 | 4.6 | ±1.5 | 1.00 |
PST87xR | 6.0 | 1.20 | 5.50 | 1.6 | 4.6 | ±1.5 | 1.00 |
PST88xA | 6.0 | 1.20 | 5.50 | 1.6 | 4.6 | ±1.5 | 1.00 |
PST87xA | 6.0 | 1.20 | 5.50 | 1.6 | 4.6 | ±1.5 | 1.00 |
IC-PST598 | 12.0 | 12.00 | 2.3 | 4.5 | ±15mV | 15.00 | |
IC-PST597 | 12.0 | 12.00 | 2.3 | 4.5 | ±15mV | 15.00 | |
IC-PST596 | 12.0 | 12.00 | 2.3 | 4.5 | ±15mV | 15.00 | |
PST11D | 40.0 | 2.70 | 20.00 | 5.0 | 10.0 | ±2 | 1.70 |
PST114 | 40.0 | 2.70 | 20.00 | 5.0 | 10.0 | ±2 | 1.70 |
PST854A | 6.5 | 0.70 | 6.00 | 0.8 | 5.2 | ±1 | 0.35 |
PST853A | 6.5 | 0.70 | 6.00 | 0.8 | 5.2 | ±1 | 0.35 |
PST894R | 6.5 | 0.70 | 6.00 | 0.8 | 5.2 | ±1 | 0.35 |
PST893R | 6.5 | 0.70 | 6.00 | 0.8 | 5.2 | ±1 | 0.35 |
PST894B | 7.0 | 0.95 | 6.50 | 1.6 | 5.2 | ±1 | 0.35 |
PST893B | 7.0 | 0.95 | 6.50 | 1.6 | 5.2 | ±1 | 0.35 |
PST89EA | 7.0 | 0.95 | 6.50 | 1.2 | 5.2 | ±1 | 0.35 |
PST89DA | 7.0 | 0.95 | 6.50 | 1.2 | 5.2 | ±1 | 0.35 |
PST894A | 7.0 | 0.95 | 6.50 | 1.2 | 5.2 | ±1 | 0.35 |
PST893A | 7.0 | 0.95 | 6.50 | 1.2 | 5.2 | ±1 | 0.35 |
IC-PST84 | 12.0 | 0.70 | 10.00 | 0.8 | 6.0 | ±0.5 | 0.35 |
IC-PST83 | 12.0 | 0.70 | 10.00 | 0.8 | 6.0 | ±0.5 | 0.35 |
PST122D | 40.0 | 2.70 | 20.00 | 5.0 | 10.0 | ±2 | 3.70 |
PST122C | 40.0 | 3.70 | 20.00 | 5.0 | 10.0 | ±2 | 3.00 |
PST122B | 40.0 | 3.00 | 20.00 | 5.0 | 10.0 | ±2 | 3.00 |
PST122A | 40.0 | 2.70 | 20.00 | 5.0 | 10.0 | ±2 | 2.70 |
PST852A | 12.0 | 0.70 | 10.00 | 0.8 | 6.0 | ±0.5 | 0.35 |
PST851A | 12.0 | 0.70 | 10.00 | 0.8 | 6.0 | ±0.5 | 0.35 |
IC-PST86 | 7.0 | 0.95 | 6.50 | 1.2 | 5.2 | ±1 | 0.25 |
IC-PST82 | 12.0 | 0.70 | 10.00 | 0.8 | 6.0 | ±0.5 | 0.25 |
IC-PST81 | 12.0 | 0.70 | 10.00 | 0.8 | 6.0 | ±0.5 | 0.25 |
Power Supply IC > Shunt Regulator
Series name | Associated Data | Absolute maximum rating | Cathode to Anode voltage Min. [V] |
Cathode to Anode voltage Max. [V] |
Cathode current Min. [mA] |
Cathode current Max. [mA] |
Reference voltage Typ. [V] |
Reference voltage accuracy Typ. [%] |
Minimum cathode current Typ. [mA] |
Off-state cathode current Typ. [μA] |
Dynamic impedance Typ. [Ω] |
Package |
---|---|---|---|---|---|---|---|---|---|---|---|---|
MM1530JN | PDF product catalog | 13 | VREF | 12 | 0.08 | 30 | 1.240 | ±0.5 | 0.05 | 0.1 | 0.2 | SOT-23A |
MM1530EN | PDF product catalog | 12 | VREF | 12 | 0.30 | 15 | 1.270 | ±0.8 | 0.15 | 0.1 | 0.4 | SOT-23A |
MM1530DN | PDF product catalog | 12 | VREF | 12 | 0.30 | 30 | 1.240 | ±0.5 | 0.15 | 0.1 | 0.2 | SOT-23A |
MM1530DU | PDF product catalog | 12 | VREF | 12 | 0.30 | 30 | 1.250 | ±0.8 | 0.15 | 0.1 | 0.4 | SC-82ABB |
MM1530CU | PDF product catalog | 12 | VREF | 12 | 0.30 | 15 | 1.270 | ±0.8 | 0.15 | 0.1 | 0.4 | SC-82ABB |
MM1431GN | PDF product catalog | 35 | VREF | 35 | 0.60 | 50 | 2.495 | ±0.8 | 0.30 | 0.1 | 0.4 | SOT-23A |
MM1431FN | PDF product catalog | 35 | VREF | 35 | 0.60 | 50 | 2.495 | ±0.5 | 0.30 | 0.1 | 0.4 | SOT-23A |
MM1431EN | PDF product catalog | 35 | VREF | 35 | 0.60 | 50 | 2.495 | ±0.8 | 0.30 | 0.1 | 0.4 | SOT-23A |
MM1431DN | PDF product catalog | 35 | VREF | 35 | 0.60 | 50 | 2.495 | ±0.4 | 0.30 | 0.1 | 0.4 | SOT-23A |
MM1431DU | PDF product catalog | 35 | VREF | 35 | 0.60 | 50 | 2.495 | ±0.4 | 0.30 | 0.1 | 0.4 | SC-82ABB |
MM1431CU | PDF product catalog | 35 | VREF | 35 | 0.60 | 50 | 2.495 | ±0.8 | 0.30 | 0.1 | 0.4 | SC-82ABB |
Power Supply IC > AC input detection IC
Parts | Associated Data | Absolute maximum rating [V] |
Recommended operating voltage Min. [V] |
Recommended operating voltage Max. [V] |
Package |
---|---|---|---|---|---|
MM3313 | PDF product catalog | 33.0 | 4.0 | 30.0 | SOP-8D |
Power Supply IC > Linear regulator (LDO)
Series name | Output current [mA] |
Absolute maximum rating [V] |
Recommended operating voltage Min. [V] |
Recommended operating voltage Max. [V] |
Output voltage Min. [V] |
Output voltage Max. [V] |
Output voltage accuracy [%] |
No-Load Input Current [μA] |
Dropout Voltage [V] |
PSRR [dB] |
Output capacitor [μF] |
---|---|---|---|---|---|---|---|---|---|---|---|
MM4066 | 200 | 7.0 | 1.70 | 6.0 | 1.20 | 5.00 | ±1.0 | 7.5 | 0.35 | 50 | |
MM4047 | 450 | 6.0 | 2.20 | 5.5 | 1.80 | 4.50 | ±2.0 | 14.0 | 0.16 | 80 | 2.20 |
MM3871 | 300 | 7.0 | 2.00 | 6.5 | 1.00 | 5.00 | ±1.0 | 25.0 | 0.62 | 70 | 0.47 |
MM3866 | 200 | 7.0 | 1.70 | 6.0 | 1.20 | 5.00 | ±1.0 | 0.9 | 0.35 | 50 | |
MM3864 | 300 | 7.0 | 2.00 | 6.5 | 1.00 | 5.00 | ±1.0 | 20.0 | 0.24 | 75 | 1.00 |
MM3847 | 250 | 6.0 | 2.20 | 5.5 | 1.20 | 4.50 | ±2.0 | 14.0 | 0.09 | 80 | 2.20 |
MM3823 | 500 | 7.0 | 1.60 | 6.5 | 1.00 | 5.00 | ±1.0 | 60.0 | 0.25 | 65 | 1.00 |
MM3816 | 200 | 6.5 | 1.70 | 5.5 | 1.00 | 5.00 | ±1.0 | 42.0 | 0.30 | 75 | 1.00 |
MM3764 | 200 | 7.0 | 1.60 | 6.5 | 0.80 | 5.00 | ±1.0 | 20.0 | 0.08 | 75 | 1.00 |
MM3763 | 200 | 7.0 | 1.80 | 6.5 | 0.80 | 5.00 | ±1.0 | 25.0 | 0.40 | 70 | 0.47 |
MM3755 | 150 | 7.0 | 1.70 | 6.0 | 1.20 | 5.00 | ±0.8 | 0.9 | 0.28 | 50 | 0.10 |
MM3703 | 1000 | 7.0 | 1.60 | 6.5 | 1.00 | 5.00 | ±1.0 | 60.0 | 0.46 | 65 | 1.00 |
MM3702 | 1000 | 7.0 | 1.60 | 6.5 | 1.00 | 5.00 | ±1.0 | 60.0 | 0.46 | 65 | 1.00 |
MM3615 | 300 | 7.0 | 1.80 | 6.5 | 0.80 | 5.00 | ±1.0 | 90.0 | 0.24 | 70 | 1.00 |
MM3608 | 300 | 7.0 | 1.80 | 6.5 | 0.80 | 5.00 | ±1.0 | 90.0 | 0.24 | 70 | 1.00 |
MM3571 | 300 | 7.0 | 2.00 | 6.5 | 1.00 | 5.00 | ±1.0 | 25.0 | 0.62 | 70 | 0.47 |
MM3566 | 200 | 7.0 | 1.70 | 6.0 | 1.20 | 5.00 | ±1.0 | 0.9 | 0.35 | 50 | |
MM3534 | 150 | 7.0 | 1.70 | 6.0 | 1.20 | 5.00 | ±0.8 | 0.9 | 0.28 | 50 | 0.10 |
MM3532T | 150 | 7.0 | 1.60 | 6.0 | 1.20 | 5.00 | ±1.0 | 50.0 | 0.13 | 70 | 1.00 |
MM3532A | 500 | 6.5 | 1.60 | 6.0 | 1.20 | 5.00 | ±1.0 | 50.0 | 0.07 | 70 | 1.00 |
MM3529 | 1000 | 6.5 | 1.60 | 6.0 | 1.20 | 5.00 | ±1.0 | 50.0 | 0.50 | 70 | 1.00 |
MM3526 | 500 | 6.5 | 1.60 | 6.0 | 1.20 | 5.00 | ±1.0 | 50.0 | 0.25 | 70 | 1.00 |
MM3479 | 1000 | 6.5 | 1.60 | 6.0 | 1.20 | 5.00 | ±1.0 | 50.0 | 0.50 | 70 | 1.00 |
MM3478 | 500 | 6.5 | 1.60 | 6.0 | 1.20 | 5.00 | ±1.0 | 50.0 | 0.25 | 70 | 1.00 |
MM3464 | 300 | 7.0 | 2.00 | 6.5 | 1.00 | 5.00 | ±1.0 | 20.0 | 0.24 | 75 | 1.00 |
MM3416 | 200 | 6.5 | 1.70 | 5.5 | 1.00 | 5.00 | ±1.0 | 42.0 | 0.30 | 75 | 0.47 |
MM3411 | 200 | 7.0 | 1.80 | 6.5 | 0.80 | 5.00 | ±1.0 | 25.0 | 0.40 | 70 | 0.47 |
MM3404 | 200 | 7.0 | 1.60 | 6.5 | 0.80 | 5.00 | ±1.0 | 20.0 | 0.08 | 75 | 1.00 |
MM3376 | 150 | 6.5 | 1.10 | 6.0 | 0.80 | 5.00 | ±2.0 | 1.7 | 0.05 | 0.10 | |
MM312x | 250 | 12.0 | 10.0 | 1.80 | 6.00 | ±2.0 | 1.0 | 0.40 | 0.10 | ||
MM1998 | 200 | -12.0 | -10.00 | -2.0 | -5.00 | -1.10 | ±1.0 | 160.0 | 0.50 | 70 | 1.00 |
MM1937 | 300 | 16.0 | 6.50 | 14.0 | 3.00 | 10.00 | ±2.0 | 300.0 | 0.30 | 70 | 2.20 |
MM1936 | 100 | 16.0 | 3.40 | 14.0 | 3.00 | 8.00 | ±2.0 | 400.0 | 0.20 | 70 | 2.20 |
MM1926 | 250 | 16.0 | 2.50 | 14.0 | 3.00 | 10.00 | ±2.0 | 200.0 | 0.20 | 70 | 2.20 |
MM1920 | 150 | 6.5 | 1.10 | 6.0 | 0.40 | 1.50 | 170.0 | 65 | 1.00 | ||
MM1899 | 300 | 15.0 | 2.00 | 14.0 | 1.50 | 5.40 | ±1.0 | 140.0 | 0.35 | 70 | 1.00 |
MM1898 | 200 | -12.0 | -10.00 | -2.0 | -5.00 | -0.90 | ±1.0 | 160.0 | 0.50 | 70 | 1.00 |
MM1890 | 300 | 16.0 | 9.00 | 14.0 | 8.00 | 10.00 | ±2.0 | 75.0 | 0.45 | 60 | 1.00 |
MM1886 | 300 | 16.0 | 1.80 | 14.0 | 1.50 | 5.00 | ±2.0 | 75.0 | 0.45 | 70 | 1.00 |
MM1877 | 1000 | 15.0 | 2.20 | 14.0 | 1.50 | 5.00 | ±2.0 | 2000.0 | 0.25 | 70 | 1.00 |
MM1870 | 1500 | 12.0 | 1.20 | 10.0 | 0.90 | 5.00 | ±2.0 | 1000.0 | 0.26 | 65 | 1.00 |
MM1868 | 1000 | 12.0 | 1.15 | 10.0 | 0.90 | 2.00 | ±2.0 | 1000.0 | 0.18 | 65 | 1.00 |
MM1866 | 1000 | 12.0 | 2.20 | 10.0 | 1.50 | 5.00 | ±2.0 | 2500.0 | 0.20 | 65 | 1.00 |
MM1856 | 200 | 15.0 | 1.80 | 14.0 | 1.50 | 5.00 | ±2.0 | 75.0 | 0.30 | 70 | 1.00 |
MM1849 | 300 | 16.0 | 9.00 | 14.0 | 8.00 | 10.00 | ±2.0 | 75.0 | 0.45 | 60 | 1.00 |
MM1839 | 200 | 16.0 | 1.80 | 14.0 | 1.50 | 5.00 | ±2.0 | 85.0 | 0.30 | 70 | 1.00 |
MM1836 | 200 | 15.0 | 1.80 | 14.0 | 1.50 | 5.00 | ±2.0 | 75.0 | 0.30 | 70 | 1.00 |
Motor IC > FAN Motor Driver IC
Product Name | Operating Supply Voltage lower limit [V] |
Operating supply voltage upper limit [V] |
Operating temperature lower limit [deg.C] |
Operating temperature upper limit [deg.C] |
Associated Data |
---|---|---|---|---|---|
MM1784 | 2.8 | 14 | -40 | 90 | PDF Catalog |
Analog-to-digital convertor / Analog Front End IC > Analog Front End IC
Analog Front End IC
Parts | Number of input channels [ch] |
Resolution [bit] |
Package | |
---|---|---|---|---|
MM3609ARRE | Resistance 2CH | 24 | PLP-24 | PDF product catalog |
Analog-to-digital convertor / Analog Front End IC > Analog to Digital Converter IC
SAR type analog-to-digital converter IC
Semiconductor Sensor
6-axis force torque sensor
Product name | Associated Data | Power Supply [V] |
Operating Temperature Range [deg.C] |
Load rating (Force) [N] |
Load rating (Moment) [N・m] |
Accuracy [%F.S.] |
Interface | Package Size [mm] | Weight [g] |
---|---|---|---|---|---|---|---|---|---|
MMS101 | PDF product catalog | VDD:3.8 to 14.0V/ VDDIO:1.14 to 3.6V |
5 to 45 | ±40 | ±0.4 | ±5 | SPI | Φ9.6 × 9.0 | 3g |
Temperature Switch IC
Parts | Outline | Operating Supply Voltage lower limit [V] |
Operating Supply Voltage upper limit [V] |
Operating Ambient Temperature lower limit [deg.C] |
Operating Ambient Temperature upper limit [deg.C] |
Detecting Temperature Accuracy lower limit [deg.C] |
Detecting Temperature Accuracy upper limit [deg.C] |
Supply current Typ. [μA] |
---|---|---|---|---|---|---|---|---|
MM3688 | The MM3688 series has a detection temperature of + 60 ° C ≤ TDET ≤ + 90 ° C, and is being developed in steps of 1.0 ° C. This product achieves an ultra-low current consumption of 0.12 μA typ., Which is ideal for mobile products that are concerned about power consumption. |
1.6 | 5.0 | -40 | 125 | -2 | 2 | 0.12 |
MM3588 | The MM3588 series has a detection temperature of + 60 ° C ≤ TDET ≤ + 90 ° C, and is being developed in steps of 1.0 ° C. This product has a control terminal (CE terminal) for turning the output on and off. |
1.6 | 5.0 | -30 | 125 | -2 | 2 | 1.50 |
MM3488 | The MM3488 series has a detection temperature in the range of high temperature detection type: + 25 ° C ≤ TDET ≤ + 90 ° C, low temperature detection type: -20 ≤ TDET ≤ + 24 ° C. We are developing products in steps of 1.0 ° C. |
1.6 | 5.0 | -30 | 105 | -2 | 2 | 1.50 |
Analog Temperature sensor IC
Parts | Operating Supply Voltage lower limit [V] |
Operating Supply Voltage upper limit [V] |
Operating Ambient Temperature lower limit [deg.C] |
Operating Ambient Temperature upper limit [deg.C] |
Detecting Temperature Accuracy lower limit [deg.C] |
Detecting Temperature Accuracy upper limit [deg.C] |
Temperature sensitivity [mV/°C] |
Load Regulation(0~200μA) [mV] |
Package | Package2 |
---|---|---|---|---|---|---|---|---|---|---|
MM3154 | 2.4 | 6.5 | -40 | 100 | -2.5 | 2.5 | -8.2 | 0 to 1.0 | SC-82ABB | SSON-4B |
Digital Temperature sensor IC
Parts | Resolution(1) [deg.C] |
Resolution(2) [bit] |
Data Update time [ms] |
Operating Voltage lower limit [V] |
Operating Voltage upper limit [V] |
Ambient operating temperature lower limit [deg.C] |
Ambient operating temperature upper limit [deg.C] |
Package | Package2 |
---|---|---|---|---|---|---|---|---|---|
MM3286 | 0.5 | 9 | 2 | 3 | 5.5 | -40 | 125 | SOP-8D | |
MM3285 | 0.5 | 9 | 2 | 3 | 5.5 | -40 | 125 | SOT-26A | SOT-25A |
Sensing Devices
Load cell > Compression type for industrial weighing systems

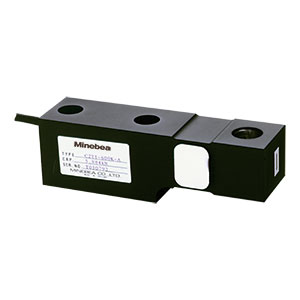

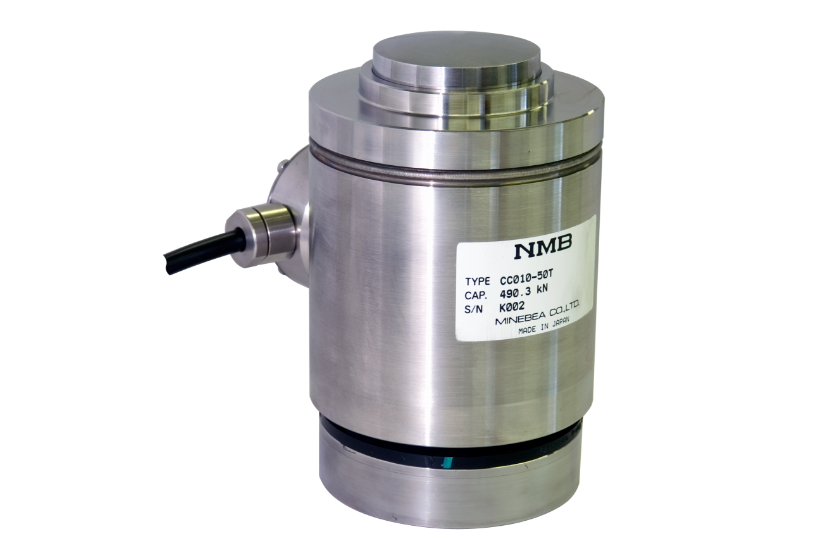

Parts | External view | Features | Rated capacity |
---|---|---|---|
Beam type load cell CBC1-※ series | Suitable for the weighing systems of which mounting space is limited. | 49.03 N {5 kgf}~19.61 kN {2 tf} | |
Low profile shear-web type CWV1-※ series | Shear-web type structure and strong in lateral load. | 19.61 kN {2 tf}~980.7 kN {100 tf} | |
High overload capacity compression type CCR1(B)-※ series | Canister type load cell with safe overload capacity. | 4.903 kN {500 kgf}~196.1 kN {20 tf} | |
Explosion-proof canister type load cell CCP1-※-Z series | Suitable for high explosion risk envitonment such as with flammable liquid or gas. | 1.961 kN {200 kgf}~196.1 kN {20 tf} | |
Accurate canister type load cell CCP1(A)-※ series | Ideal for the weighing system of hopper & tank scales, etc. | 490.3 N {50 kgf}~196.1 kN{20 tf} | |
Accurate compression type load cell CMP1-※ series | Precise low profile load cell with all stainless steel structure. | 2.452 kN {250 kgf}~196.1 kN {20 tf} | |
Compact size compression type load cell CMM1J-※ series | Compact size, light weight load cell with all stainless steel construction. | 490.3 N {50 kgf}~19.61 kN {2 tf} | |
Compact size compression type load cell CMM1R-※ series | Compact size, light weight load cell with all stainless steel construction. | 490.3 N {50 kgf}~19.61 kN {2 tf} | |
Beam type load cell CBE1- ※ series (General Spec.) | Beam type load cell with all stainless structure. | 49.03 N {5 kgf}~1.961 kN {200 kgf} | |
Beam type accurate load cell CBE1-C3- ※ series (OIML spec.) | Beam type load cell with all stainless structure. Rated capacity : CBE1-C3 (OIML standard) 5 kg ~ 200 kg |
10kg~200kg | |
Square beam type load cell C2B1B-※ series (General Spec.) | Ideal for weighing system of floor / tank / hopper scale. | 200 kg (1.961 kN) ~ 2 ton (19.61 kN) | |
Square beam type load cell C2B1B-*-C3 series (OIML spec.) | Ideal for weighing system of floor / tank / hopper scale. Available for OIML R60 Class C3 certified model. C2B1B (General Spec.) 200 kg {1.961 kN} ~ 2 t {19.61 kN} |
200kg~2t | |
Square beam type load cell C3B1-*-NS series (General spec.) | Ideal for the measuring system of floor scale, tank scale and hopper. | 1.961 kN {200 kgf}~49.03 kN {5 tf} | |
Square beam type accurate load C3B1-* series (OIML spec.) | Ideal for the measuring system of floor scale, tank scale and hopper. Available for OIML R60 Class C4 certified model. |
200kg~5t | |
Double convex type compression service load cell CC010 series (General spec.) | Double convex mechanism. All stainless steel hermetic sealed structure. | 4.903 kN {500 kgf}~490.3 kN{50 tf} | |
Double convex type compression service load cell CC010-C3 series (OIML spec.) | Double convex mechanism. All stainless steel hermetic sealed structure. Available for OIML R60 Class C3 certified model. |
2t~50t |
Load cell > For commercial scale

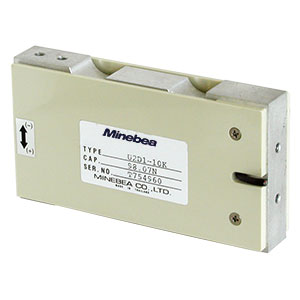

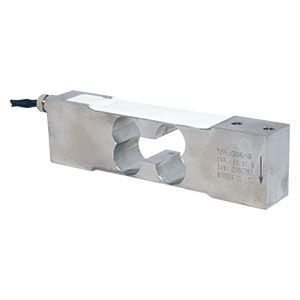

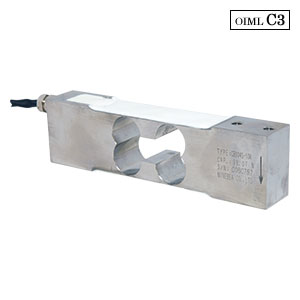

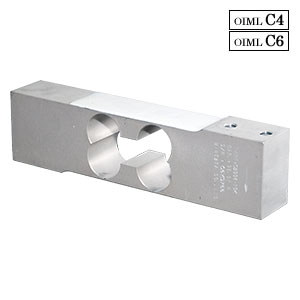

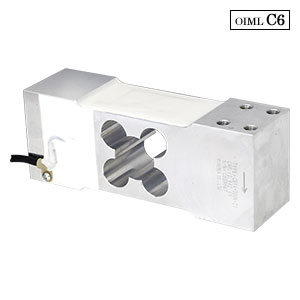

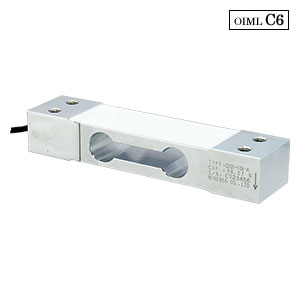

Parts | External view | Outline | Rated capacity |
---|---|---|---|
Middle capacity scale for commercial scale | Applied for multi-point method platform scale. | 2.942 kN{300 kgf}~68.65 kN{7 tf} | |
For commercial scale C2D1-* General standard | Available to multi-point application. Approved OIML R60 Class C4. | 100kg~800kg | |
For commercial scale U2D1-* General standard | Middle capacity for electrical scale. | 29.42 N{3 kgf}~980.7 N{100 kgf} | |
For commercial scale U2D1-*-C3 OIML standard | Middle capacity for electrical scale. OIML R60 certification | 6kg~25kg | |
For commercial scale CB14-*-21 General standard | Suitable for health meter. | 980.7 N{100 kgf}~4.903 kN{500 kgf} | |
For commercial scale CB14-*-C6 OIML standard | Suitable for health meter. OIML R60 certification. | 100kg~500kg | |
Middle capacity for commercial scale (General spec) CB004S-* General standard | Middle capacity stainless steel construction, | 98.07 N{10 kgf}~980.7 N{100 kgf} | |
For commercial scale CB004S-*-C3 OIML standard | Middle capacity stainless steel construction, OIML R60 certification. | 10kg~100kg | |
Middle capacity for commercial scale CB004-* General standard | Middle capacity for electrical scale. | 98.07 N{10 kgf}~980.7 N{100 kgf} | |
Middle capacity for commercial scale CB004-*-C4/-C6 OIML standard | Middle capacity for electrical scale. OIML R60 certification. | 10kg~100kg | |
Middle capacity for commercial scale C2G1-*-A-C6 OIML standard | Middle capacity for electrical scale. OIML R60 certification. | 6kg~50kg |
Load cell > For special application

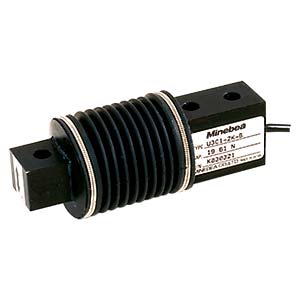

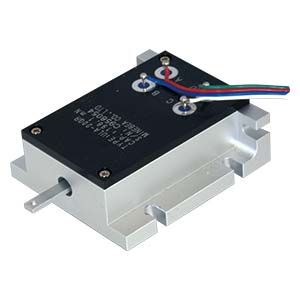

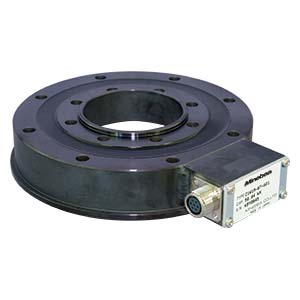

Parts | External view | Outline | Rated capacity |
---|---|---|---|
Load beam bending type U3C1-B | Suitable for the weighing systems of which mounting space is limited. | 49.03 N {5 kgf}~980.7 N {100 kgf} | |
Small capacity bending beam type UTA | The rated capacity is little higher than the UL series'. | 980.7 mN {100 gf}~19.61 N {2 kgf} | |
Small capacity bending beam type UL/ULA | Excellent in small force measurement such as tension of yarn. | 19.61 mN {2 gf}~980.7 mN {100 gf} | |
Centre hole type C1W1M | Developed for injection molding machines. | 58.84 kN {6 tf}~490.3 kN {50 tf} | |
Miniature type LSMS | Miniture type load cell with 5 mm at height and 7 mmat diameter. | 196.1 N {20 kgf}~490.3 N {50 kgf} | |
Miniature type LSM - B | 12mm~21mm of diameter and suitable for use where space is limited. | 4.903 N {500 gf}~19.61 kN {2 tf} | |
Miniature type CM085 | High accurate, compact and thin type compression service load cell with stopper. | 2 N ~ 2 kN | |
Low profile shear-web type UWV1 | Shear-web type structure and strong in lateral load. | 19.61 kN {2 tf}~980.7 kN {100 tf} |
Load cell > Hygienic Weighing Module
Parts | Product outline image | Features |
---|---|---|
Contego PR6041 Series | ■Hygienic integrated mount(EHEDG compliant) with built-in high-accuracy load cell(PR6241 type) ■Hygienic design(EHEDG compliant) ■highly corrosion-resistant top/bottom plates(AlSl316L ■FDA complianr silicone rubber sides ■Completely waterproof IP68/IP69K ■Cable outlet available in 2 direcyions(Horizontal:A、vertical:B) ■Base plate optionally available |
Load cell > Compression Type Ulyra-High Accuracy Hygienic Stainless Steel Load cell
Parts | Product outline image | Features |
---|---|---|
PR6202 Series | ■Highly corrosion-resistant housing material AlSl316L ■Average surface roughness less than 1μm ■Completely waterproof IP68/69K ■Completely water-draining structure(EHEDG compliant) ■Automatic alignment function ■Wide operating temperature range:-40 to +95℃ ■Completely water-draining mounting FlexLock PR6002 type available ■Registered design EU 000 210 349-0001/-0002 Japan 2005-478 US 22/222,249 |
Load cell > Compression Type Stainless Steel Load Cell
Parts | Product outline image | Features |
---|---|---|
PR6212 Series Compression Type Compact Stainless Steel Load Cell | ■Gage is applied using sputtering technology to dramatically improve strength and accuracy. High temperature(LT:rated 500kg~5t)version is available for up tp 180℃ ■Stainless steel housing:SUS630 equivalent ■Completely waterproof IP68 ■Lateral load relief mechanism |
|
PR6211 Series Compression Type Compact Stainless Steel Load Cell | ■Gage is applied using sputtering technology to dramatically improve strength and accuracy.PR6211(rated 30~300kg)maximum allowable load>500kg.High temperature(LT:rated 500kg~5t)version is available for up tp 180℃ ■Stainless steel housing:SUS630 equivalent ■Completely waterproof IP68 ■Lateral load relief mechanism |
|
PR6241 Series Compression Type Ultra-High Accuracy 1/12500 Stainless Steel Load Cell | ■Compact,high-performance load cell.Individual accuracy:Achieves 1/12500! Ideal for production of high-accuracy tank scales and platform scales ■Stainless steel housing:SUS630 equivalent ■Completely waterproof IP68 ■Ultra-high accuracy,C6:1/12500 |
|
PR6201 DB Series Double Output Compression Type Stainless Steel Load Cell | ■2 strain gages are applied within the load cell for double output. ■For use at steel plants, etc., enabling 1 cable to continue output even if the other cable is damagrd. |
|

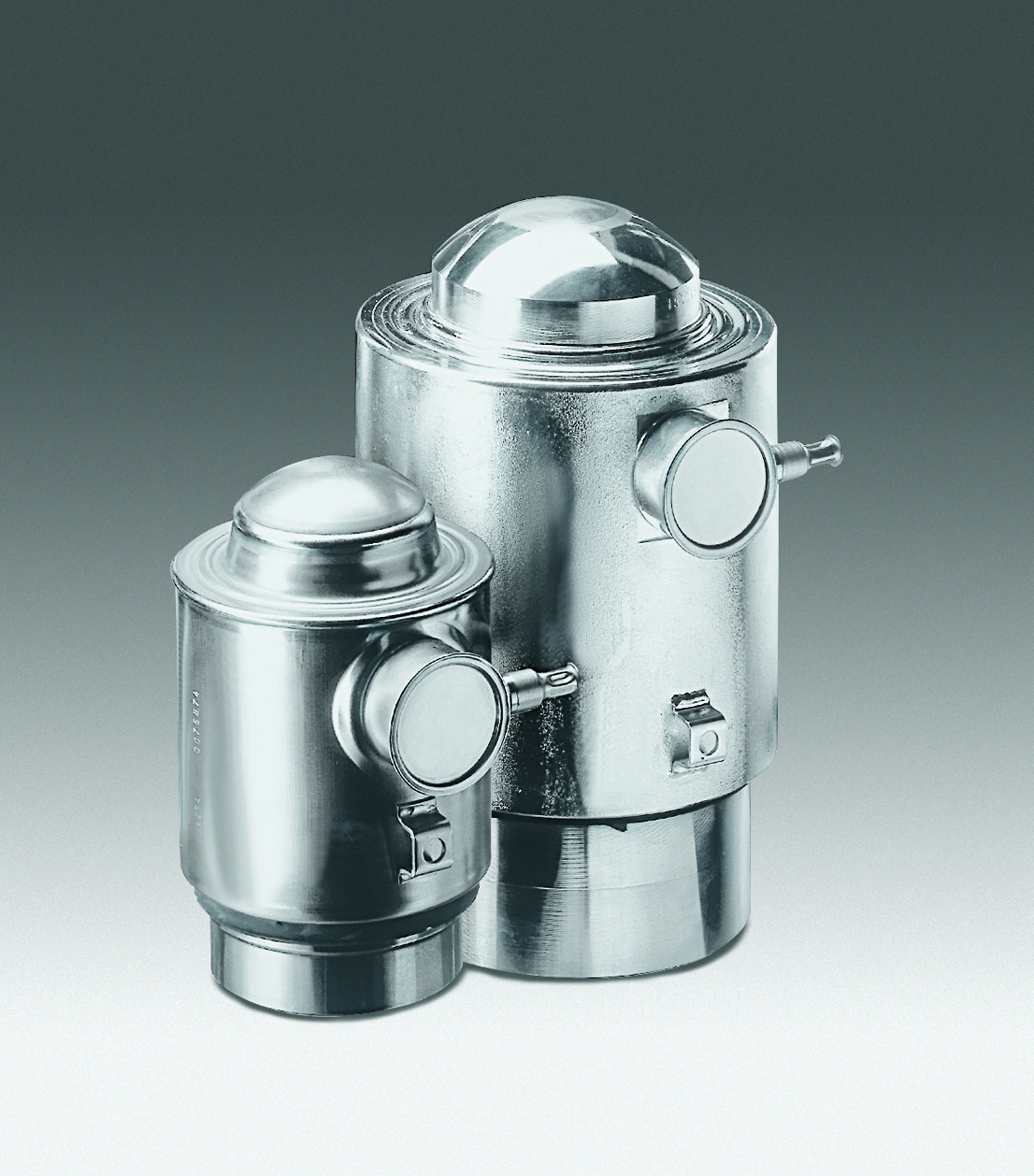

PR6201 Series Compression Type High Accuracy Standard Stainless Steel Load Cell | ■Stainless steel load cells for high capacity ■Stainless steel housing:SUS304 equivalent ■Completely waterproof IP68 |
|
PR6203 Series Compression Type High Precision Standard Stainless Steel Load Cell | ■Load cell with automatic alignment function ■Stainless steel housing:SUS304 equivalent ■Completely waterproof IP68 ■Wide range of accuracy supported:D1(E)~C6(E) |
Load cell > Tension Type Ultra-High Accuracy Stainless Steel Load cell

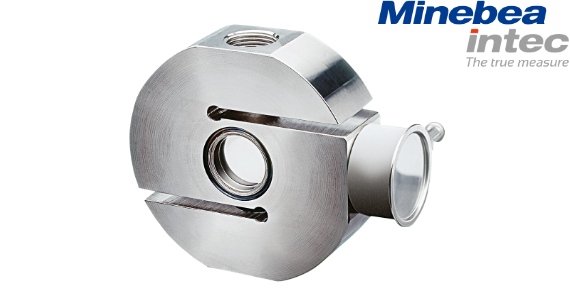

Parts | Product outline image | Features |
---|---|---|
PR6246Series | ■Stainless steel housing:SUS630 equivalent ■Completely waterpriif IP68 ■Ultra-high accuracy,C6:1/12500 |
Load cell > Beam Type Stainless Steel Load Cell

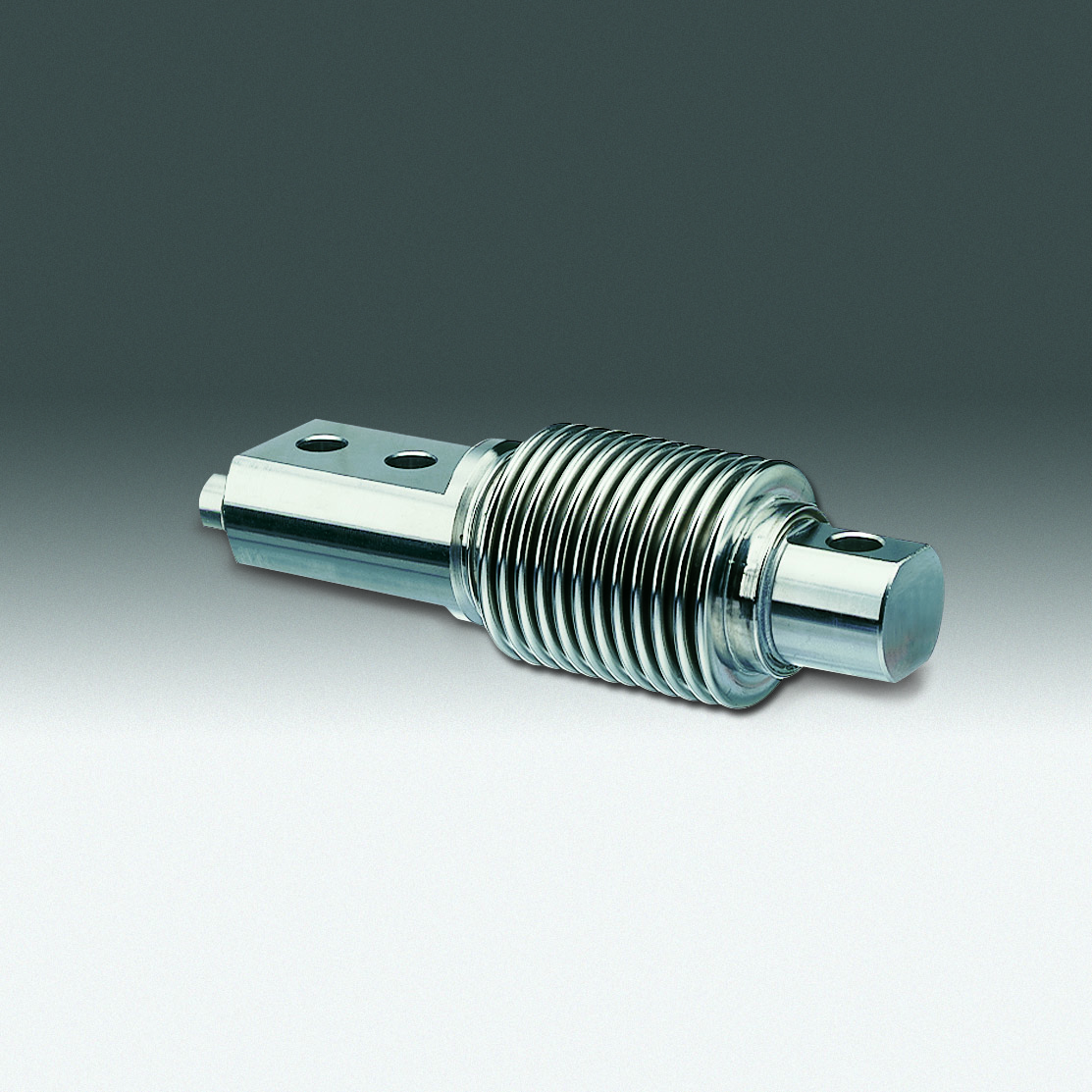

Parts | Product outline image | Features |
---|---|---|
PR6207 Series | ■Stainless steel housing:1.4122 ■Completely waterpriif IP67 |
Load cell > Process Digital Load Cell
Parts | Product outline image | Features |
---|---|---|
PR6204 Series | ■Stainless steel housing with completely sealed structure(IP68/IP69K) ■Accuracy class:C3 0.015%/C6 0.008%(25t,50t) ■Rated output:200,000 digits(25t:400,000) ■2-wire RS485 communication allows connection of up to 8 units ■Connectable devices:PR5200/5230 Transmitter、PR5410 Process Indicator、PR5900 Maxxis5 Process Controller |
Load cell > Force Sensor
Parts | Product image | Features |
---|---|---|
CF059 series | Stainless steel, and full bridge type Rated capacity : 1.961 N {0.2 kgf} ~ 39.22 N {4 kgf} |
|
CF054 series | Aluminum roberval method sensor, full bridge type Rated capacity : 0.294 kN {30 kgf} ~ 1.961 kN {200 kgf} |
|
FSV series | Aluminum element, Roverval method sensor, full bridge type Rated capacity : 0.981 N{100 gf} ~ 2.942 N {300 gf} |
|
FSU series | Aluminum alloy. Roverbal type and full bridge type Rated capacity : 4.903 N {0.5 kgf}~147.1 N {15 kgf} |
|
FSI series | Aluminum alloy. Full bridge type. Rated capacity : 19.61 N {2 kgf}~196.1 N {20 kgf} |
|
FSA series | Stainless steel. 2 type of half bridge type and full bridge type. Rated capacity : 22.24 N{5 lb} ~ 177.9 N {40 lb} |
Load cell > Load cell Applications
Sensing Device Product Accessories
Parts | Product image | Outline |
---|---|---|
Explosion proof storage case for digital indicator B-309Z | Storage case for digital indicator with explosion proof structure. | |
Explosion proof summing box B - 304Z | Used when flameproof construction Load Cell is added parallel in the hazardous area where the explosion-proof construction is needed | |
Summing type junctin box SB - 321 | Possible to sum the signals from upto 4 load cells. Strainless steel structure. Class of protection : IP69K | |
Summing type junctin box SB-320 | Possible to sum the signals from upto 4 load cells. Strainless steel structure. | |
Summing type junctin box SB-310 | Possible to sum the signals from upto 4 load cells. | |
Small size summing type junction box for digital load cell DB- 307 | Connections for upto 4 digital load cells. Equipped with an output adjustment trimmer for each load cell. | |
Small size summing type junction box B-307 | Connections for upto 4 load cells. Equipped with an output adjustment trimmer for each load cell. | |
Extension junction box B-304B | Junction box for extending the signal cable of load cells | |
Zener barrier Z961-TC20162/Z964-TC20163 (after 2012) | Safety barrier for intrinsic safety explosion-proof weighing systems to be used with load cells. The type of Z951/Z964 to be applied is different in the model passed before 2011 and the model passed after 2012. | |
Zener barrier Z961/Z964 (before 2011) | Safety barrier for intrinsic safety explosion-proof weighing systems to be used with load cells. The type of Z951/Z964 to be applied is different in the model passed before 2011 and the model passed after 2012. |
Minebea Intec Products Applications
Parts | Product image | Outline |
---|---|---|
PR6130 | ●Up to 4 load cell units can be connected ●No problems even if jet spray adheres to the board surface ●Flame arrestor equipped as standard |
|
PR5110 | ●Serial communication means there is no display error relative to the indicator ●Selectable between board mounting types and wall/tabletop mounting types ●Up to 8 indicator units can be connected |
|
PR5220 | ●TCP/IP connection,calibration and setting can be configured via PC ●High internal resolution:4,800,000 ●External display 10,000e(OIMLR76 compliant) ●High accuracy analog output,0/4-20mA ●RS485/422 outputs available ●24 VDC power supply ●Waterproof IP20,DIN rail mountable |
|
PR5230 | ●Stainless steel housing:IP66 ●Ethernet/Modbus TCP service interface equipped as standard(calibration/setting enabled via the service interface) ●RoHS compliant ●Input/Output 3 contacts equipped as standard |
|
PR1626 | ●Intrinsically safe explosion-proof interface developed especially for load cells ●Load cell output changes due to temperature effects are minimal,enabling high accuracy measurement ●Dedicated interface for load cells installed in hazardous locations ●The PR1626/60 can connect up to four 650Ω load cells ●The PR1626/61 can be connected to load cell type explosion-proof scales and connect up to eight 650Ω load cells ●W&M Approval OIML R76 class Ⅲ |
Pressure Sensor
SOS type pressure transmitter
Parts | External view | Overview | Rated capacity |
---|---|---|---|
Compact size & High-accuracy type pressure transmitter NS320 series New Model | Temperature compensation range is wide as -30 ~ 125 degree-C, and this can use to the various applications. (High accurate model: Improve the performance for temperature compensation range between 0 and 50 degree-C).Performance of signal response: 2 kHz | 200 kPa ~ 30 MPa | |
High-accuracy with long term stability pressure transmitter NS115 series | Accuracy 0.1%R.O., Excellent in a long term stability, solidity and a surge pressure measurement. Zero point adjustment is available. Rated capacity : 500 kPa~10 MPa(NS115P / High-accuracy type), 5 MPa~50 MPa (NS115 / Standard type) |
5 MPa~50 MPa | |
High-accuracy with long term stability pressure transmitter NS115P series | Accuracy 0.1%R.O., Excellent in a long term stability, solidity and a surge pressure measurement. Zero point adjustment is available. | 500 kPa~10 Mpa | |
High-accuracy, negative/absolute pressure use pressure transmitter NS100A series | Accuracy 0.2 %R.O., Possible to measure the compound pressure and absolute pressure accurately. Comformed to CE standard (only for voltage output) | 200 kPa ~ 50 Mpa |
Strain Gage type pressure transmitter
Parts | External view | Overview | Rated capacity |
---|---|---|---|
High endurance type pressure transducer PRN01 / PRN02 series | Total aAccuracy : ±1.0 %F.S., ASIC amplifier is mounted, High performance type with excellent feature in temperature effect and a noise. | 5 Mpa ~ 100 Mpa | |
High endurance type pressure transmitter PRN01 / PRN02 series | Total aAccuracy : ±1.0 %F.S., ASIC amplifier is mounted, High performance type with excellent feature in temperature effect and a noise. | 5 MPa~100 Mpa |
SOS type pressure transducer
Parts | External view | Overview | Rated capacity |
---|---|---|---|
High temperature type pressure transducer NS30T series for compound pressure measurement | Small size and light weight pressure transmitter with accuracy 0.2 %R.O., Possible to measure the compound pressure with high-accuracy and high response. Natural frequency : 72 kHz~566 kHz | 200 kPa~10 MPa | |
High temperature type pressure transducer NS10T series for compound pressure measurement | Accuracy 0.2 %R.O., Possible to measure the compound pressure with high-accuracy and high responce. Natural frequency : 72 kHz~1 278 kHz | 200 kPa~50 MPa |
Strain Gage type pressure transducer
Parts | External view | Overview | Rated capacity |
---|---|---|---|
Flash diaphragm type pressure transducer PRO series | Compact and light weight type. Screw M10 x P1.0 High response, No need to bleed air in the pressure inlet | 2 MPa ~ 20 Mpa | |
High pressure type pressure transducer STD series | For high pressure range, The pressure receiving diaphragm is an integration structure with screw | 200 MPa ~ 500 Mpa | |
Small type pressure transducer PRJ series for high / low temperature measurement | For high temperature (150 ℃) to low temperature (-40℃), small size and light weight, easy to attach and remove. | 1 MPa~10 MPa | |
Small and high responce type pressure transducer PRC series | Flash diaphragm method high response type. small size, light weight, easy to attach and remove. | 1 MPa~100 Mpa | |
High reliability standard type pressure transducer PRB series | Small size and light weight. Easy to attach and remove. Plentiful product line with wide pressure range. | 1 MPa~100 Mpa |
Digital Indicator/Transmitters > Digital Indicator
Parts | Product image | Outline | Non-linearity [%F.S.] |
Sampling speed [times/s] |
I/O icon |
---|---|---|---|---|---|
PR5410 Process Indicator | ●PR5410 is a weighing module that achieves 10000e Class Ⅲ level accuracy ●High speed conversion enables response times from 10 ms ●A 10/100 Mbits/s LAN adapter is built in ●Load cell,control input/output optocoupler,LAN adapter connector and RS232C interfaces are mounted on the back panel ●Enables actual load adjustment using weights,calibration of numerical input in mV/V,and load cell date input(smart calibration) ●Large display(height 18mm),cleary visible backlight LCD display ●OIML R76 10,000e ●Internal resolution:1/4,000,000 |
||||
Digital Moment limitter DML-802C | The hanging load and the operating radius are displayed and the alarm has been output. Japan Crane Association accepted product. | 2 | |||
Digital indicator model TMD-100 for tension meter system | Space saving instrument combines multiple system functions in system control panel to conserve wiring, and miniaturize the control panel. | 0.01 | 100 | ||
Digital indicator for digital load cell CSD-401 | Digital indicator for digital load cell. Compact size. Equipped with RS-232C as a standard. | 15 | |||
PCB type digital indicator CSD-581-15/74 | DC24 V power supply voltage. Broad range of calibration function. CSD-581-15 : BCD digital output, CSD-581-74 : RS-232C interface. |
0.01 | 100 | ||
Digital Peak Holder CSD-819C | Compact size and light weight. High sampling rate (2 000 times/s). Range of peak mode settings. CE mark applied. | 2000 | |||
Digital Peak Holder CSD-709 | Compact size and light weight. High sampling rate (4 000 times/s). Waveform display and condition setting by PC. Simplified calibration, Various interface. | 0.02 | 4000 | ||
Digital indicator CSD-701B | Compact size (48 mm x 96 mm) with peak hold function. BCD output as an option. |
20 | |||
Digital Indicator CSD-815B | Conpact size (96 mm x 96 mm) digital indicator for strain gage applied transducer with peak hold function, CC-Link interface and CE mark applied. | 100 | |||
Weight conversion module CSD-892B series | High performance and palmtop size. Smart and fit model in FA system. Best for high speed and high resolution application. Equipped with CC-Link interface, RS-232C interface, RS-422/485 interface, current / voltage output and USB 2.0/1.1 interface. Built-in control panel type. CE mark applied.JIS B 7611-2:2015 Annex C (Environmental Test Level H/Level L). |
0.01 | 500 | ||
Built-in control panel type digital indicator CSD-891B | Broad range of computer and sequencer interfaces are included. Correspond to CC-Link. |
0.01 | 200 | ||
Digital indicator CSD-814B | Clear, large fluorescent tube display with 22 mm charactrer height, Ratio of load vs. rated capacity is clearly indicated with 11 dots bar indicator. | 0.01 | 100 | ||
Digital indicator CSD-904-EX | Best for high accuracy (6 000 div.) scale application (More than 5 micro-volts per division minimum input.) Built-in linearizer (up to 3 points) | 0.01 | 15 | ||
Digital Indicator CSD-903-EX | Active standard that succeeds to measurement knowhow cultivated by CSD-912 without regrettably. Controlable in variegated sequence mode. Compact size and light weight. (depth: 136.5 mm), CE mark applied. | 0.01 | 200 | ||
Graphic Digital Indicator CSD-912B-EX | 6.2 inches liquid crystal touch panel display with excellent visibility TFT color and wide viewing angle. Waveform display of weighing status. 100 kinds of recipe measurement can be memorized in brand memory. 1000 times/s of high speed A/D conversion. RS-485 / serial interface as a standard function. CE mark applied. | 0.01 | 1000 |
Digital Indicator/Transmitters > Transmitters
Parts | Product image | Outline |
---|---|---|
Transmitter for optical transmission method torque meter OPT-563B | The calibration data for four torque meters can be recorded and changed. Digital compensation of asymmetry, linearize and twist direction reversing can be executed. | |
Transmitter for optical transmission method torque transducer CSA-562B | 4-1/2 digit digital monitor. Exclusive use for optical transmission method non-contact flange type torque transducer | |
Transmitter for transformer method torque transducer CSA-561C | Special transmitter for transformer method torque transducer TMNR(-ME) series. Input and output isolation, Digital switch for strain setting, | |
High response type transmitter CSA-522B | Achieved space saving when a multi channel is applied. Optional case is available to mount and it provide an easy exchange for maintenance. | |
Transmitter CSA-528 | Most suitable direct-current amplifier for measurements of the load, pressure, the torque, and displacement, etc. Automatic zero function equipped as an option. CE mark applied product. | |
PCB type Transmitter CSA-521 | Compact size and light weight, Simple design, Lower price | |
Transmitter CSA-507C | Compact size and light weight, Simple design, Lower price, Trimmer to adjust the current output is equipped. | |
PCB type Transmitter CSA-504S-1B | Printed circuit board type,1CH and 2CH | |
PCB type Transmitter CSA-504SB | Printed circuit board type,1CH and 2CH | |
Transmitter CSA-503C | Internal remote sensing circuit, Automatic zero function (Option), Equipped CALIB function (0.3 mV/V) and CHECK function |
Strain Amplifier
Parts | Product image | Outline |
---|---|---|
Precision Calibrator PSC-350 | 350 ohm precision calibrator, The output can be calibrated by connecting this unit to a digital indicator, a transmitter, or dynamic strain instrumentation, etc., for strain gage based transducers. | |
Static Strain Digital Indicator PSD-704 | Easily check output of strain gage based transducers in mV/V. Also measure I/O resistance of strain gage based transducers. Insulation resistance between main body and each cable wire is also available. | |
DC type dynamic strain amplifier DAS-406C | Frequency characteristic : DC ~ 200 kHz, Optional standard equivalent strain setting using 4 digit switch and 3 digit and 1/2 digital display |
Industrial Scales > Flat-bed Scales IF Series

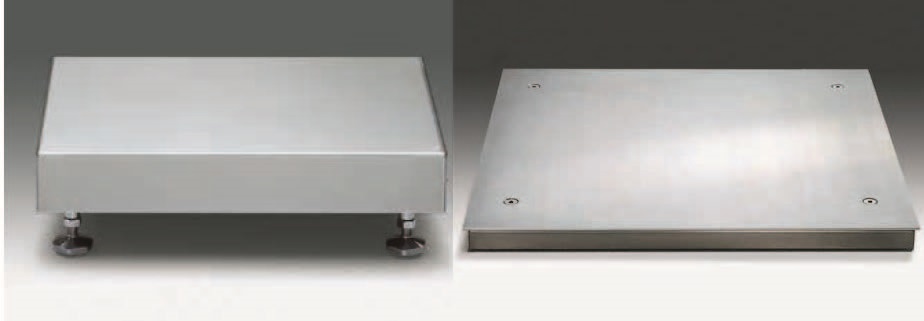

Parts | Product outline image | Features |
---|---|---|
IF Series | ●Wide range of weighing capacities and platform sizes Non-explosion-proof:59 types,explosion-proof:48 types ●Various options are available based on the operating method ●Made entirely of stainless steel(AlSl304 SUS304 equvalent Bead blasted finish,seamless machining ●Accuracy:1/3000(Uses 1/6000 load cell type) ●Max.display resolution :1/30000(When combined with a CAIS type display.However,resolution is 1/15000 if T8 option is used) ●Completely water proof IP67 and IP68 ●Separable weighing part and display part.Display can be selected based on the application. ●Display connection cable 6m ●Single-sided slope equipped as standard(Double slopes available as options)【Explosion-priif type】 ●Intrinsically safe explosion-proof structure Ex ib ⅡC T4(Explotion-proof international standard ATEX accredited.Supported with IFXS types) ●Select among 3 types:Power supply for installation in explotion-proof areas,power supply for installation in safe areas,and battery type. |
Industrial Scales > Fully Stainless Platform Scales Combics Series

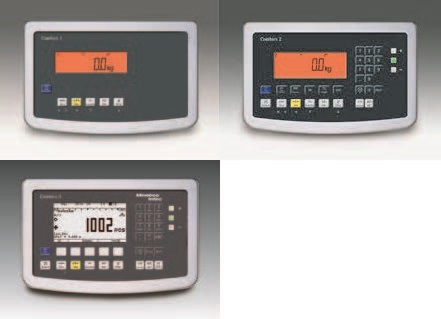

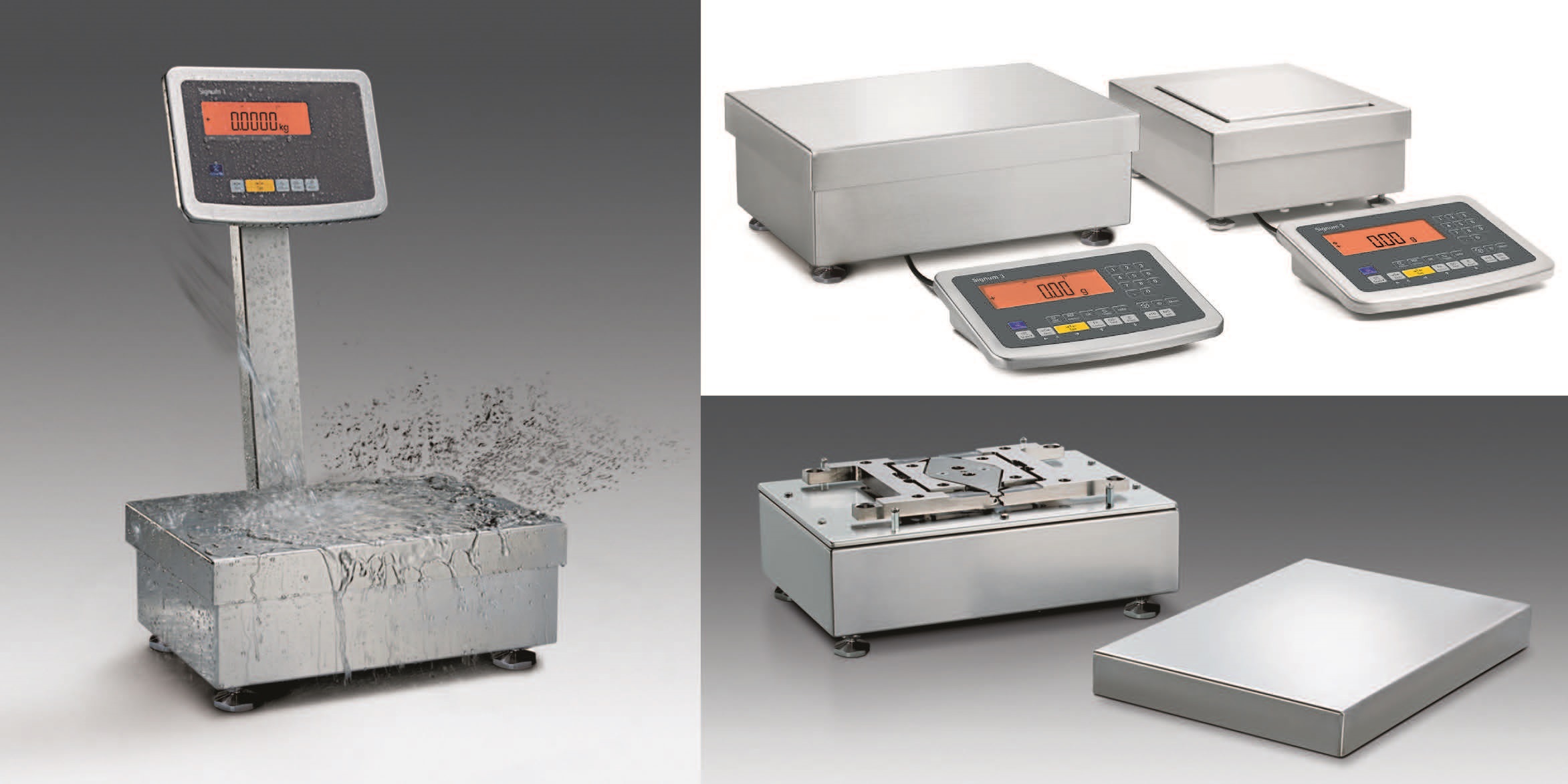

Parts | Product outline image | Features |
---|---|---|
Combics Series | ●Various weighing ranges and plate sizes.Explosion-proof and non-explosion-proof include 46 types each ●High accuracy:1/6000 ●Max.display resolution:1/30000(combined with our indicator) ●Completely waterproof IP67 and IP68 ●RS232 equipped as standard(explosion-proof types require YDI05-Z barrier) ●Separable weighing part and display part(refer to pages 53~54 for display details).Display can be selected based on the application.(Non-explosion-proof:3 types,explosion-proof:1 type)(DC ED FE GF IG sizes are 3m.other are 6m.However,600kg range IG size types include 6m)【Explosion-proof type】 ●Intrinsically safe explosion-proof structure Ex ib ⅡC T4(explosion-proof standard ATEX accredited.Supported with CAPXS types) ●Select among 3 types:Power supply for installation in explosion-proof areas,power supply for installation in safe areas,and battery type |
Industrial Scales > Electromagnetic Platform Scales IS Series
Parts | Product outline image | Features |
---|---|---|
IS Series | ●Weighing range:16kg~300kg ●Select among 3 Types of indicators based on the application ●Max.display resolution:1/640,000 ●Electromagnetic type adopted for high accuracy ●Built-in weighing part and display part ●Main unit cable length 16/34/64kg: 3m (6m for ISFEG only),、150/300kg: 6m |
Industrial Scales > Signum Series Compact Platform Scale
Parts | Product outline image | Features |
---|---|---|
Regular/Adbanced Type | ●Max.300kg overload protection function equipped ●max.resolition:620,000 ●Dustproof/waterproof structure Standard is IP43,with optional upgrade to IP65 available ●Plate material SUS specification(AlSl304) ●Fully stainless steel specification also available ●Supreme types available with an optional internal weight ●In addition to standard RS422,analog 4-20mA,EtherNet,Profibus,etc. ●2m cable is equipped as standard between the display and platform |
Industrial Scales > Signum Series Supreme Type
Parts | Product outline image | Features |
---|---|---|
Supreme Type(Monolithic Balance Type) | ●High resolution weighing scale with aluminum monolithic balance comparable to analytical balances ●Lineup of 0.62kg~35kg weighing range ●Optional internal weight available ●Optional weight available |
Industrial Scales > Signum Series Supreme Stainless Steel Type
Parts | Product outline image | Features |
---|---|---|
Supreme Stainless Steel Type(Monolithic Balance Type) | ●High resolution weighing scale with aluminum monolithic balance ●Lineup of 3.1kg~35kg weighing capacity ●Fully stainless steel specification IP65 ●Optional internal weight available(Specified measuring instrument specifications internal weight as standard equipment) |
Industrial Scales > Signum-Ex Series

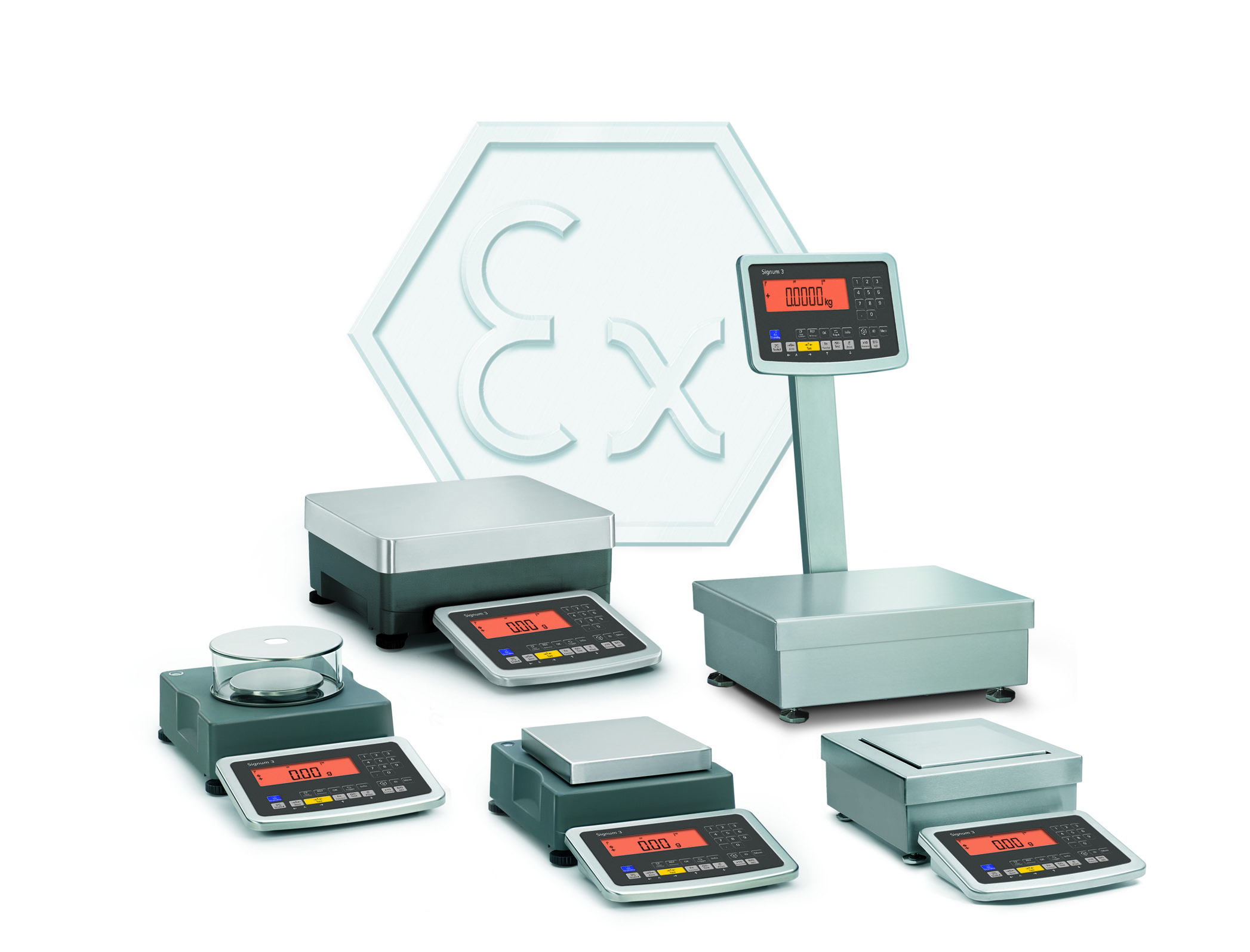

Parts | Product outline image | Features |
---|---|---|
SIWXS | ●Overload protection f300kg ●max.resolition:620,000 ●Dustproof/waterproof structure ●Plate material SUS specification(AlSl304) ●Fully stainless steel specification also available |
Industrial Scales > Industrial Scale Applications
Parts | Product outline image | Features |
---|---|---|
Tabletop Display | ●This product is a weight display that supports both tabletop and stand mounted use ●The panel mounting option allows it to be mounted onto panels ●Capable of displaying weight for both load cell type(standard) and electromagnetic type(optional) measuring instruments ●The CAIS series supports dust/waterproofing of IP68&IP69 ●The CAISL series is dustproof and waterproof IP44/gusset connector specification ●Select among「1・2・3」 based on the required function |
|
Tabletop Type Intrinsically Safe Explosion-Proof Display | ●This product is a weight display that supports both tabletop and stand mounted use ●Intrinsically safe explosion-proof structure makes it possible to be used as a display in hazardous areas ●Dust/waterproofing IP68&69K supported ●Intrinsically safe bench scales (Comics-Ex, IU-Ex, IF-Ex and Ex-load cells) |
|
Communication barrier | ●RS-232C to RS-232C bidirectional RS-232C standard distance communication barrier ●RS-422 to RS-232 bi-directional long-distance communication barrier (max. 1000m) ●Can be changed to RS-485 specification |
|
Intrinsically Safe Explosion-Proof Power Supply for Installation in Safe Areas | ●Safe area installation type | |
Intrinsically Safe Explosion-Proof Power Supply for Installation in Hazardous Areas | ●Hazardous area installation type | |
Desktop Printer | ●Data printer for use with our digital indicators/electronic balances for bench scales ●Plain paper printer ●Can print date,time,serial number and statistical calculations |
Freefall metal > Conveyor system

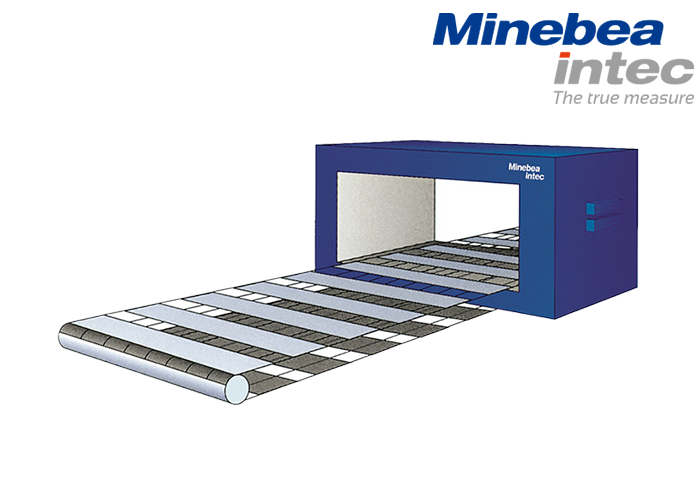

Parts | Product outline image | Features |
---|---|---|
Vistus-C | ■Various coil sizes ■Multi-frequency technology ■Tracking technology ■Automatic learn function ■Registers up to 200 products ■Protection class IP65(Option:IP69k) |
Freefall metal > Freefall metal
Parts | Product outline image | Features |
---|---|---|
Vistus-RS Series | ■Safe detection of metallic foreign objects with the highest detection sensitivity ■Exceptionally space saving ■Simple installation and operation ■Protection class IP65 |
|
Vistus-RMFZ Series | ■Selectable combinations of coil, tube and separator ■Multi-frequency technology ■Tracking technology ■Automatic learn function ■Registers up to 200 products ■Protection class IP65 |
|
Vistus-R Series | ■Selectable combinations of coil, tube and separator ■Multi-frequency technology ■Tracking technology ■Automatic learn function ■Registers up to 200 products ■Protection class IP65 |
Freefall metal > For Industrial use
Parts | Product outline image | Features |
---|---|---|
Secus-U | ■Various coil sizes ■Tracking technology ■5.7” color touch screen display ■Robust design ■Memory for 200 types of products ■Protection class IP55, IP66 optional |
|
Secus-D | ■Various coil sizes ■Tracking technology ■5.7” color touch screen display ■Robust design ■Memory for 200 types of products ■Protection class IP55, IP66 optional |
|
Secus-C | ■Various coil sizes ■Tracking technology ■5.7” color touch screen display ■Robust design ■Memory for 200 types of products ■Protection class IP55, IP66 optional |

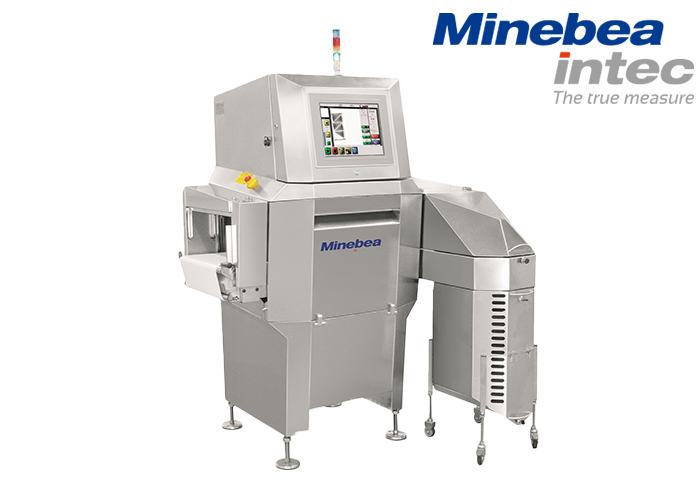

The X-ray inspection system
Parts | Product outline image | Features |
---|---|---|
Dymond Bulk Series | Dymond Bulk guarantees precise X-ray inspection of bulk materials in the food industry. Foreign bodies such as stones or metal are consistently detected and removed from the material flow to protect both products and machines. ■Maximum detection sensitivity for product and machine safety ■Intuitive operation |
|

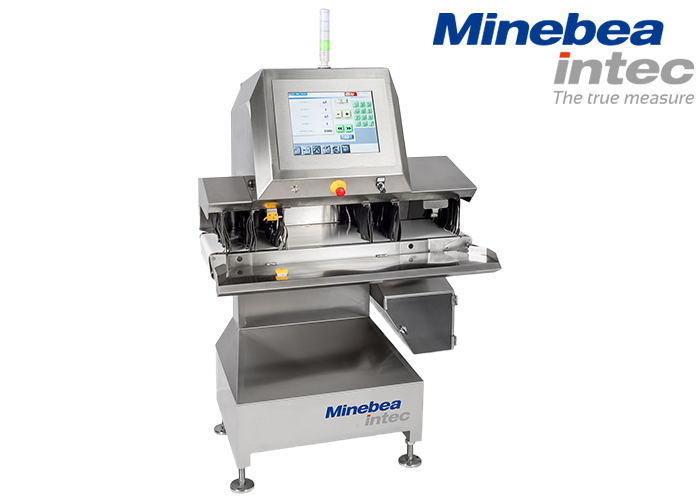

Dymond D | The Dymond D side shooters offer reliable detection of foreign objects in tall, upright packaging. The compact hygienic design, interfaces and reliable image processing at high speeds allow for efficient integration into automated production processes. ■Maximum safety through multi-sided radioscopy opens up new possibilities in product design ■Reliable inspection with a high throughput ■Seamless integration and installation ■Quick and easy cleaning thanks to the hygienic design ■Industry 4.0 ready |
|
Dymond S | The Dymond S side shooters offer reliable detection of foreign objects in tall, upright packaging. The compact hygienic design, interfaces and reliable image processing at high speeds allow for efficient integration into automated production processes. ■Reliable inspection with a high throughput ■Seamless integration and installation ■Quick and easy cleaning thanks to the hygienic design ■Industry 4.0 ready |
|
Dymond Series | The Dymond Series of X-ray inspection systems is extremely versatile. Featuring 4 models it is able to cover the majority of applications for inspecting packaged products. With belt widths up to 800 mm it is ideal for multi-lane applications of up to 8 traces. ■Extremely high level of detection sensitivity with low energy consumption ■Reliable detection of a wide range of foreign objects for your packaged products ■From large to small: the perfect solution for every product size ■Easy and intuitive operation by teaching in the products ■Hygienic design, following EHEDG principles featuring sloped surfaces and curved edges allowing easy inspection and cleaning, resulting in considerable time and cost savings ■A wide range of standard possibilities for ensuring product integrity and quality including checking completeness, determining product mass and determining compartment mass ■Covering belt widths from 200 mm up to 800 mm ■15" color touchscreen display |
|
Dylight | The X-ray inspection system Dylight guarantees extremely high levels of safety for your packaged food. This true ‘Plug and Play’ solution combines all functions in one compact unit. ■Extremely compact design ■Plug and Play: All functions in one unit ■Takes up only one metre of space in your production line ■Complete with separator and run-off container ■Maximum product safety thanks to the highest degree of detection sensitivity ■Intuitive, time-saving operation ■Easy installation and integration into networks |
Checkweigher

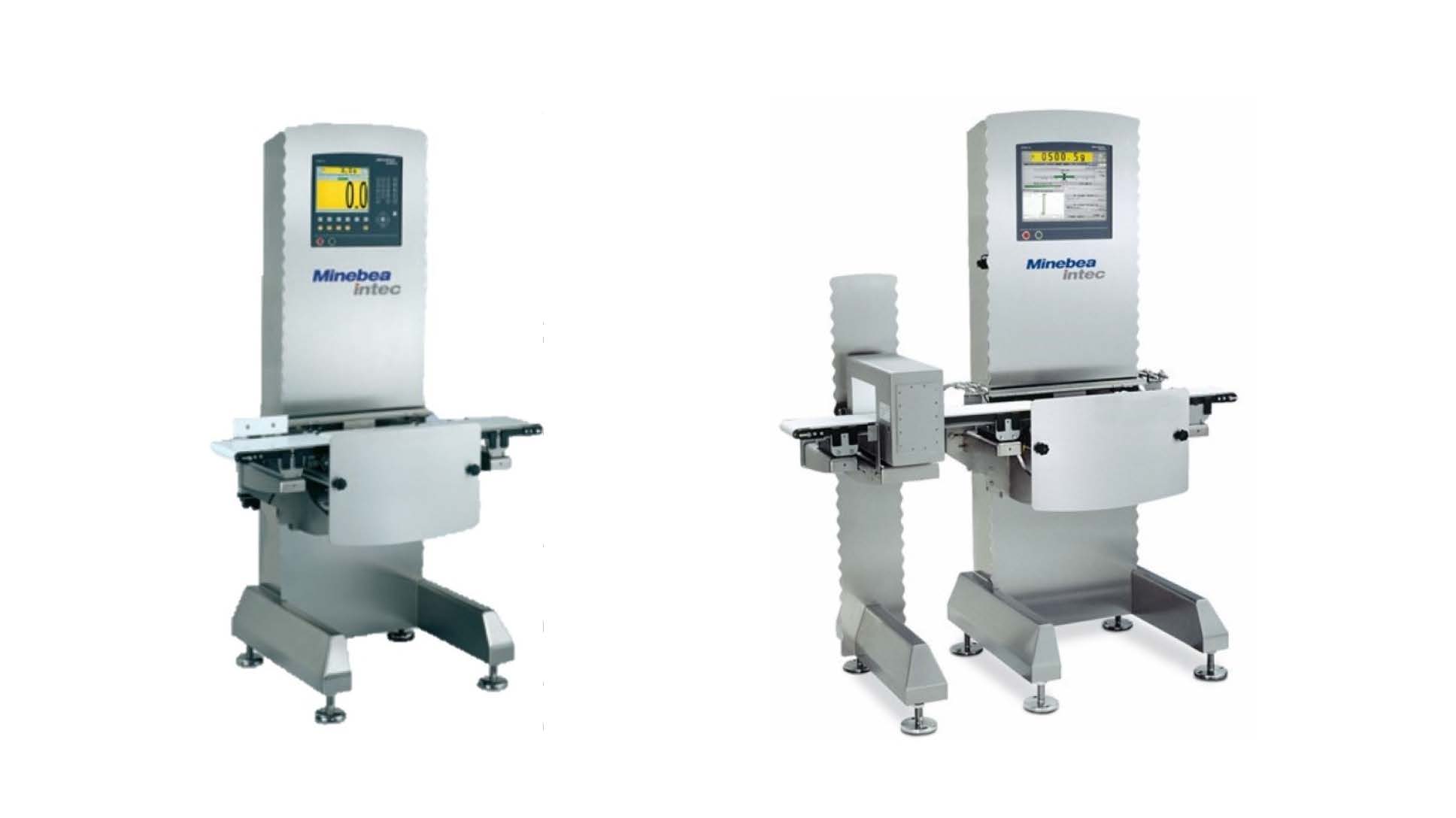

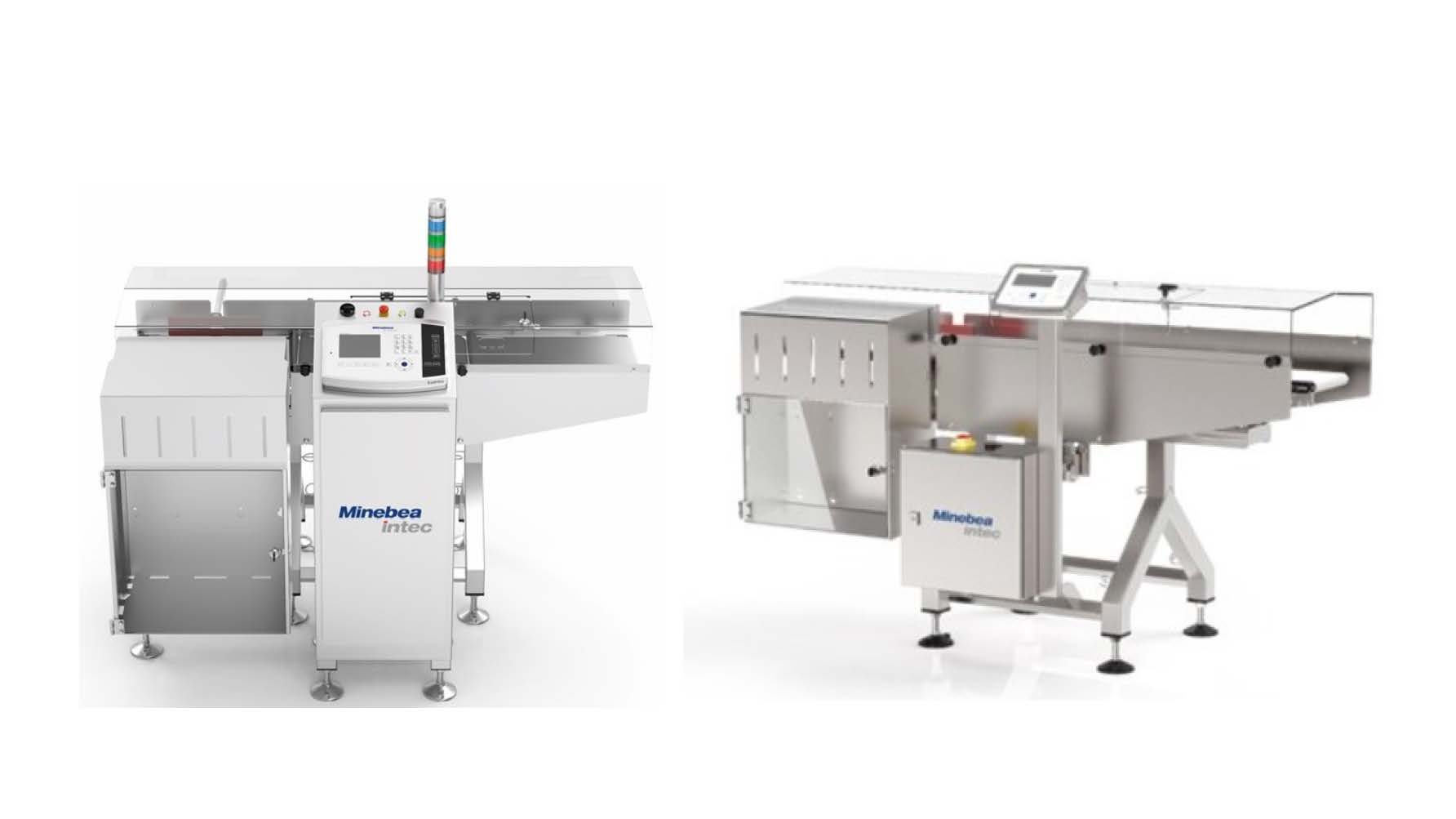

Parts | Product outline image | Features |
---|---|---|
Essentus® L efficiency/performance | The Essentus® range of dynamic checkweighers offers four basic models for simple, precise weight and integrity checking of packaged foods and other products. ■Easy to operate ■Robust conveyer technology ■A wide range of belt lengths and widths ■Automatic learning function makes configuration easier (L/H performance) ■A wide variety of options (L/H performance) ■Automatic speed regulation (L/H performance) |
|
Essentus® H efficiency/performance | The Essentus® range of dynamic checkweighers offers four basic models for simple, precise weight and integrity checking of packaged foods and other products. ■Easy to operate ■Robust conveyer technology ■A wide range of belt lengths and widths ■Automatic learning function makes configuration easier (L/H performance) ■A wide variety of options (L/H performance) ■Automatic speed regulation (L/H performance) |
|

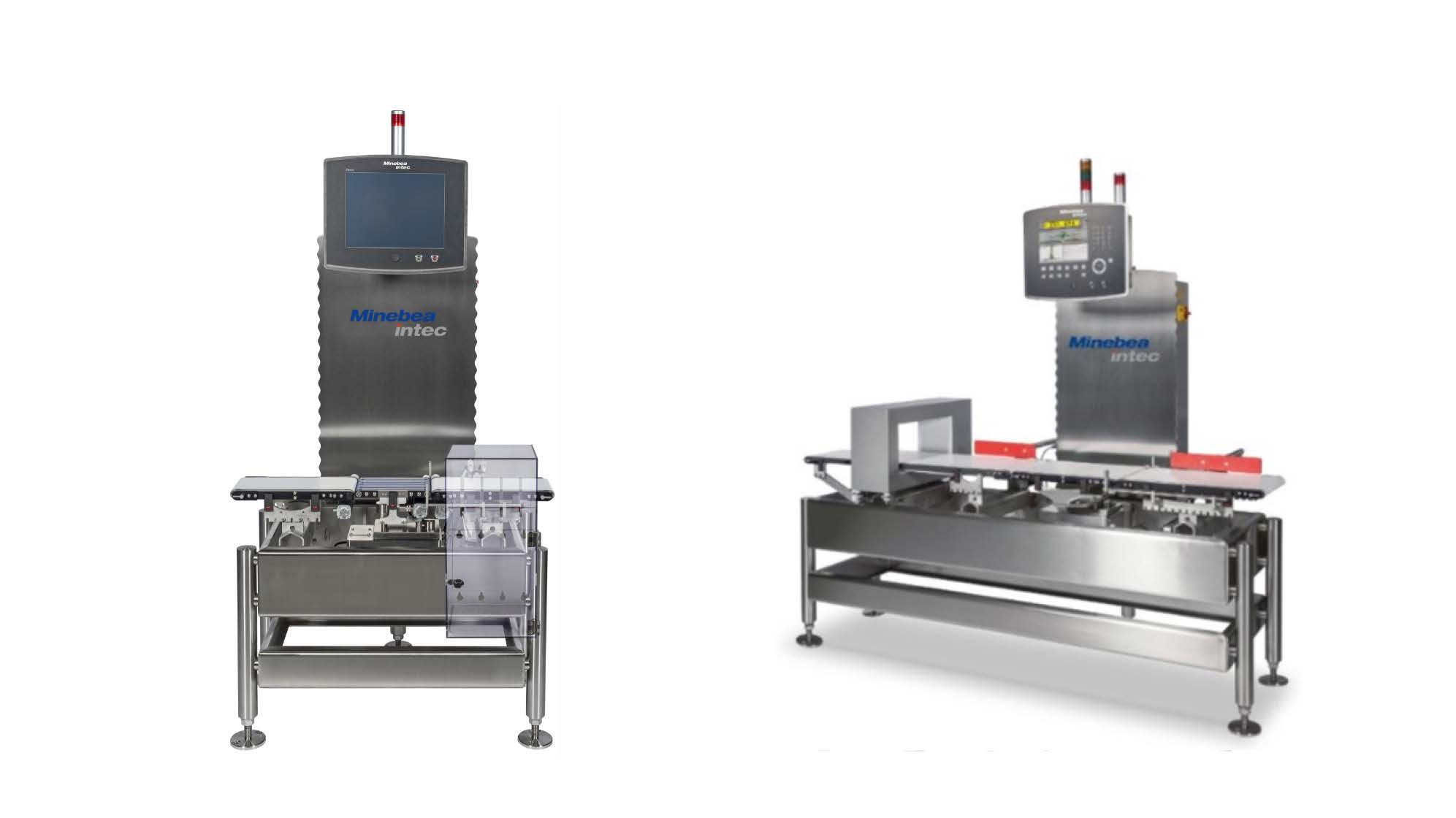

Synus/Cosynus | The modular designed checkweigher series Synus® allows for highprecision weight or integrity checking as well as the regulation of upstream filling systems.Cosynus Combines metal detector and checkweigher. The operator can configure and control two instruments in one interface quickly and easily. ■EMFC high-resolution weighcell technology offering a high throughput combined with maximum accuracy ■Maximum throughput of 250 pcs. per minute ■Optimized standard configurations for versatile applications ■Possibility for integrating a Vistus® metal detector, even after initial installation ■Adjustable conveyor height, allowing you to adapt the checkweigher to changing situations ■Weight: approx. 250 kg (depending on configuration) |
|
Flexus®/Flexus® Combi | The Checkweigher Flexus® meets the strictest requirements when it comes to hygienic design guidelines for packaged foods. A wide range of configurations ensure that every requirement is covered.The Checkweigher Flexus® Combi combines the benefits of checkweighing and metal detection technology in one space-saving system. Minimal space – maximum quality control. ■Hygienic design for easy cleaning and the highest level of quality in your production operations ■Safety and reliability thanks to EMFC load cell technology ■The ideal solution every time – configure Flexus® for your application ■Easy to combine with metal detection technology Vistus® |
