Tabletop Display

Minebea Intec

Optional devices can be selected to suit the location,making it possible to use based on the operating environment

Features

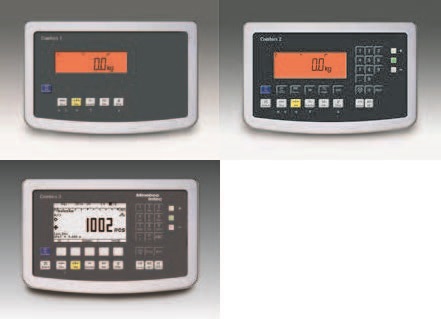

・This product is a weight display that supports both tabletop and stand mounted use
・The panel mounting option allows it to be mounted onto panels
・Capable of displaying weight for both load cell type(standard)
and electromagnetic type(optional) measuring instruments
・The CAIS series supports dust/waterproofing of IP68&IP69
・The CAISL series is dustproof and waterproof IP44/gusset connector specification

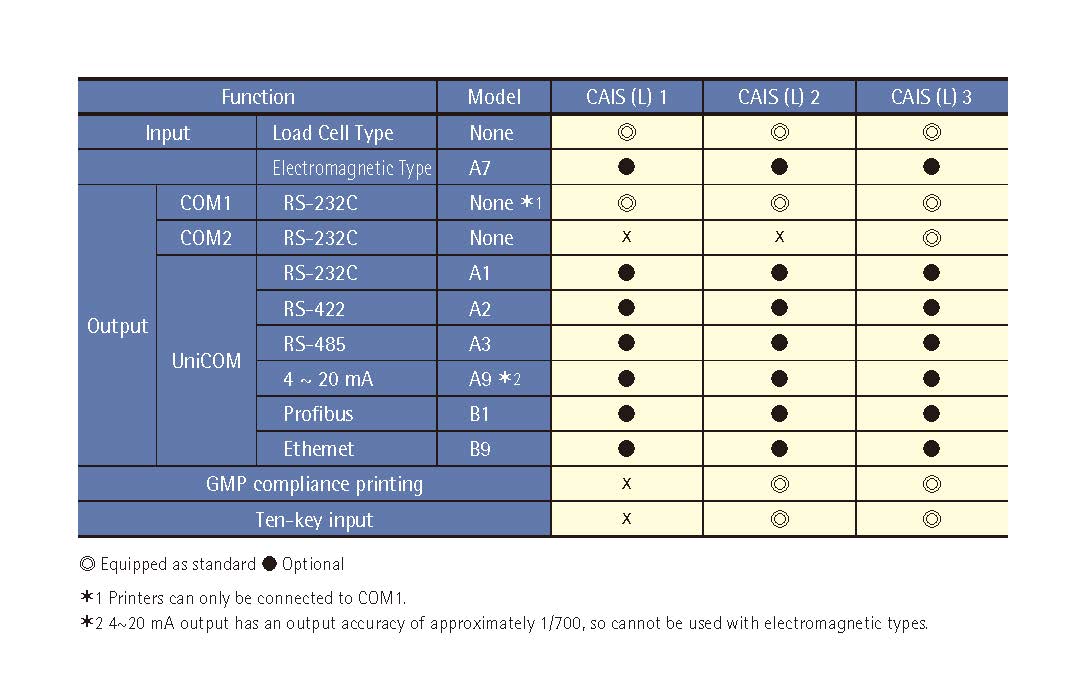

・Select among「1・2・3」 based on the required function

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts No.	Maximum resolution [d]	Accuracy class	Load cell Nominal supply voltage [DC]	Bridge resistor lower limit [Ω]	Bridge resistor upper limit [Ω]	Signal voltage range upper limit [mV]	Zero adjustment range lower limit [mV]	Zero adjustment range upper limit [mV]	Internal resolution	Minimum input sensitivity	Display	Display unit	External power supply	Operating temp. range lower limit [deg.C]	Operating temp. range upper limit [deg.C]	Operating humidity range	Class of protection	Material
CAIS1	31250 (Standard)	OIML R76 Ⅲ	DC8.4V (±4.2V) (standard)	83	2000	27.7	4.2	27.7	1/4,000,000 max.	Above 0.672μV/e (For Pind = 0.5)	20mm LCD, 7 digits, 14 segments, backlight	g, kg, t, lb, status symbol	AC100-240VAC(-15/+10%), 50-60Hz, 17W \| 23VA max. with 2m cable	-10	40	Within 85%RH (with no condensation)	IP68/IP69K	Stainless steel JIS SUS304 equivalent Polished finish
CAISL1	31250 (Standard)	OIML R76 Ⅲ	DC8.4V (±4.2V) (standard)	83	2000	27.7	4.2	27.7	1/4,000,000 max.	Above 0.672μV/e (For Pind = 0.5)	20mm LCD, 7 digits, 14 segments, backlight	g, kg, t, lb, status symbol	AC100-240VAC(-15/+10%), 50-60Hz, 17W \| 23VA max. with 2m cable	-10	40	Within 85%RH (with no condensation)	IP68/IP69K	Stainless steel JIS SUS304 equivalent Polished finish
CAIS2	31250 (Standard)	OIML R76 Ⅲ	DC8.4V (±4.2V) (standard)	83	2000	27.7	4.2	27.7	1/4,000,000 max.	Above 0.672μV/e (For Pind = 0.5)	20mm LCD, 7 digits, 14 segments, backlight	g, kg, t, lb, status symbol	AC100-240VAC(-15/+10%), 50-60Hz, 17W \| 23VA max. with 2m cable	-10	40	Within 85%RH (with no condensation)	IP68/IP69K	Stainless steel JIS SUS304 equivalent Polished finish
CAISL2	31250 (Standard)	OIML R76 Ⅲ	DC8.4V (±4.2V) (standard)	83	2000	27.7	4.2	27.7	1/4,000,000 max.	Above 0.672μV/e (For Pind = 0.5)	20mm LCD, 7 digits, 14 segments, backlight	g, kg, t, lb, status symbol	AC100-240VAC(-15/+10%), 50-60Hz, 17W \| 23VA max. with 2m cable	-10	40	Within 85%RH (with no condensation)	IP68/IP69K	Stainless steel JIS SUS304 equivalent Polished finish
CAIS3	31250 (Standard)	OIML R76 Ⅲ	DC8.4V (±4.2V) (standard)	83	2000	27.7	4.2	27.7	1/4,000,000 max.	Above 0.672μV/e (For Pind = 0.5)	20mm LCD, 7 digits, 14 segments, backlight	g, kg, t, lb, status symbol	AC100-240VAC(-15/+10%), 50-60Hz, 17W \| 23VA max. with 2m cable	-10	40	Within 85%RH (with no condensation)	IP68/IP69K	Stainless steel JIS SUS304 equivalent Polished finish
CAISL3	31250 (Standard)	OIML R76 Ⅲ	DC8.4V (±4.2V) (standard)	83	2000	27.7	4.2	27.7	1/4,000,000 max.	Above 0.672μV/e (For Pind = 0.5)	20mm LCD, 7 digits, 14 segments, backlight	g, kg, t, lb, status symbol	AC100-240VAC(-15/+10%), 50-60Hz, 17W \| 23VA max. with 2m cable	-10	40	Within 85%RH (with no condensation)	IP68/IP69K	Stainless steel JIS SUS304 equivalent Polished finish

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

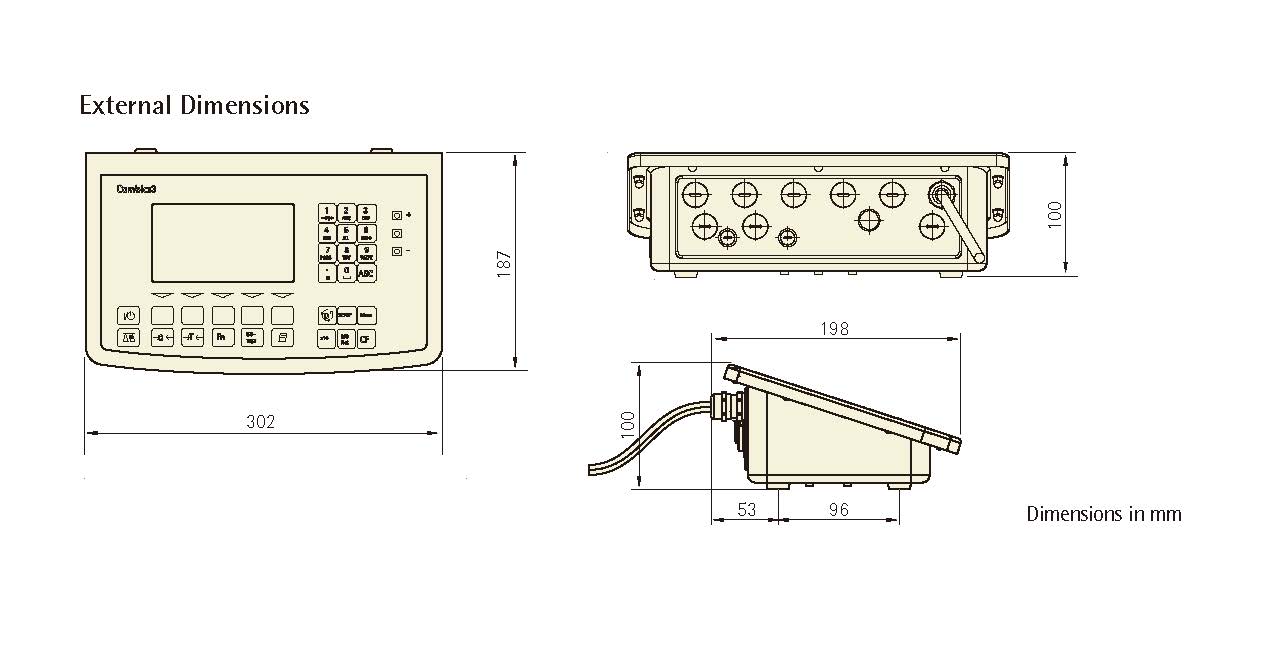

Parts No.	Size(W) [cm]	Size(D) [cm]	Size(H) [cm]	Specification sheet	Instruction Manual
CAIS1	30.2	187	10±1	382CAIS-A.pdf	294-1871-A.pdf
CAISL1	30.2	187	10±1	382CAIS-A.pdf	294-1871-A.pdf
CAIS2	30.2	187	10±1	382CAIS-A.pdf	294-1871-A.pdf
CAISL2	30.2	187	10±1	382CAIS-A.pdf	294-1871-A.pdf
CAIS3	30.2	187	10±1	382CAIS-A.pdf	294-1871-A.pdf
CAISL3	30.2	187	10±1	382CAIS-A.pdf	294-1871-A.pdf
