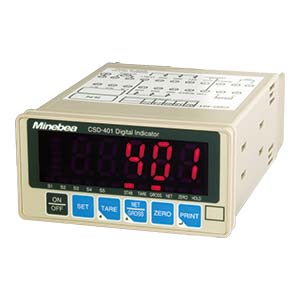

Features
・ Up to 8 units of digital load cell are connectable.
・ Compact size 96 mm x 48 mm.
・ Equipped with RS-232C as a standard.
・ Protection grade : IP65
Specification
| Specification name | Specification contents |
|---|---|
| Bridge power supply | 12 VDC±0.3 VDC within 280 mA |
| Applicable transducer | Up to 8 units of Minebea's digital load cells are connectable. |
| Input interface | RS-485 (2-wires method) |
| Baud rate | 56 700 bps |
| Digital display range | - 99 999 ~ 99 999 (Changeable to x2, x5, x10, x20 or x50) |
| Display unit | 7 segment red LED with 14.2 mm character height. |
| Over display | '-OL' display at minus(-) over, and 'OL' display at plus(+) over |
| A/D value over display | '-OVF' display at minus(-) over, and 'OVF' display at plus(+) over. |
| Status display | STAB, TARE, GROSS, NET, ZERO, HOLD |
| Judgement display | S1, S2, S3, S4, S5 |
| Display rate | 15 times/s (Changeable to 5 times/s.) |
| Display of decimal point | Changeable to no display, 10¹, 10², 10³, 10⁴. |
| External control function | ON/OFF, SET, TARE, NET/GROSS, ZERO, PRINT, NET display, HOLD display. |
| Comparator function | Display range ：-99 999 ~ 99 999 (0 ~ 99 999 for flow mode and discharge mode.) No.of set points ：5 points of S1, S2, S3, S4 and S5. Set value of hysteresis data width ：0 ~ 99 digit Hysteresis direction ：Changeable to either 'On-delay' or 'Off-delay' Comparator conversion rate ：Changeable to 5 times/s or 15 times/s. (Synchronized with display rate.) |
| RS-232C interface | Baud rate : Selectable from 1 200 bps, 2 400 bps, 4 800 bps or 9 600 bps. Data bit length : Selectable from 7 bit or 8 bit. Parity bit : Selectable from none, even or odd. Stop bit : Selectable from 1 bit or 2 bit. Terminator : Selectable from CR + LF or CR. Communication method : Half duplex Synchronous method : Start-stop synchronous method Transmission data : ASCII code Cable length : Upto 15 m Signal name : TXD, RXD, COM.1 |
| Operating temp./humidity range | Temperature - 10 ℃ ~ 50 ℃, Humidity 85 % or less (Non condensing) |
| Power supply | 100 VAC ~ 240 VAC (85 VAC ~ 264 VAC) 50/60 Hz |
| Power consumption | Approx. 13 VA (without any options at 100 VAC ) Approx. 15 VA (with options at 100 VAC) |
| Dimension (W x H x D) | 96 mm x 48 mm x 120 mm |
| Weight | Approx. 0.3 kg (without options) |
| Protection code | IP65 or equivalent (Only for the fron panel when the attached panel mounting gascket is installed. |
Download
Instruction Manual
CAD
Options
- Current output
- Voltage output
- BCD output
- RS-422/RS-485 interface
- Serial interface
