Features

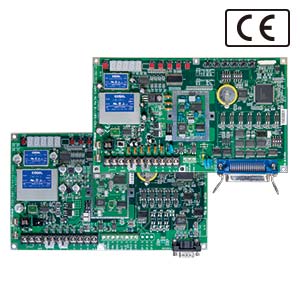

・ Simple single PC board design
・ Can operate in DC24V power supply.
・ Plenty of calibrating function
・ High accuracy and high resolution
・ Equipped with digital output as a standard
(Model CSD-581-15)
・ Equipped with RS-232C interface as a standard
(Model CSD-581-74)

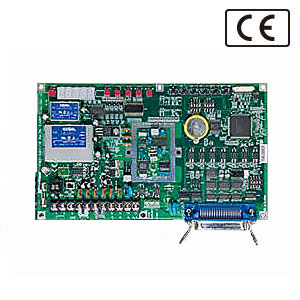

・ CSD-581-15 : CE Mark Mark applied.
Specification
| Specification name | Specification contents |
|---|---|
| Bridge power supply | 10 VDC±0.5VDC within 120 mA (Changeable to 2.5 VDC) with remotesensing applied. |
| Input range | F.S. setting can be made with the input range from 0.2 mV/V ~ 3.1 mV/V (Bridge power supply is at 10 VDC.) |
| Zero adjustment range | -0.1 mV/V ~ 2.4 mV/V |
| Non-linearity | 0.01 %F.S. |
| Temperature efficient | Zero point ±0.4 μV/℃Sensitivity ±0.003 %F.S./℃ |
| A/D sampling speed | 100 times/s |
| Load display | Load display or Display of setting |
| Display range | -1 000 ~ 11 000 (x2, x 5 and x 10 can be available.) |
| Condition display | RUN, A/Z, LOCK, HOLD, CHECK |
| Display times | 4 times/s (Changeable to 20 times/s, 50 times/s) |
| Open collector Output function |
RUN, ERROR |
| Comparator function | ZERO、A/Z、A/Z OFF、HOLD、LOCK、SEL.1、SEL.2 |
| BCD output (CSD-581-15) |
BCD 5 digits, Paralleloutpu with polarity (POL) (Output ON with minus and outputs OFF with plus.) P.C. (print command), OVR(over), ERROR, Above are open collector outputs VCE=30 VDC, Ic=20 mADC at Max. |
| RS-232C interface (CSD-581-74) |
Baud rate : Selectablefrom 600 bps, 1 200 bps, 2 400 bps, 4 800 bps, 9 600 bps, 19 200 bps or 38 400 bps Data bit length : Selectable from 7 bit and 8 bit Parity bit : Selectable from None, Even and Odd Stop bit : Selectable from 1 bit and 2 bit Terminator : CR+LF Communication method : Half duplex Synchronous method : Start-stop synchronous method Communication data : ASCII code Input/Output monitor with LED Suitable plug : DE-9S-NR(made by JAE) |
| Operating temp. /humidity range |
Temperature -10 ℃ ~50 ℃, Humidity 85 %RHor less(Non condensing) |
| Power supply voltage | 24 VDC (18 VDC ~ 36 VDC) |
| Power consumption | Approx.9 W at maximum (at 24 VDC) |
| Outline dimensions (WxHxD) |
220 mm x 130 mm x 25 mm (Excludes protruding parts.) |
| Weight | Approx. 250 g (without options) |
Download
Instruction Manual
Specification
Options
- Mounting attachment with slide-stop mechanism
