CF054 series

Custom

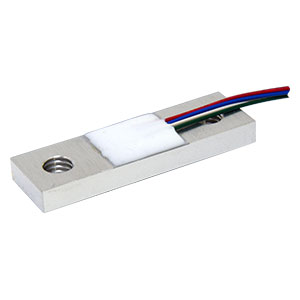

Used in bath scales, various other types of scales, game consoles, home appliances, load sensors, etc., these sensors are sensors for mass production that use strain gages.
Use of High quality Strain Gages Made In-House.

Features

Aluminum roberval method sensor, full bridge type
Rated capacity : 0.294 kN {30 kgf} ～ 1.961 kN {200 kgf}

scroll

Specification name	Specification contents
Rated capacity	0.294 kN{30 kgf}～1.961 kN{200 kgf}
Safe overload	150 %R.C.
Ultimate overload	200 %R.C.
Rated output	1.23 mV/V±0.19 mV/V
Non-linearity	2.0 %R.O.
Hysteresis	2.0 %R.O.
Excitation, recommended	10 V or less
Excitation, maximum	12 V
Zero balance	±2.5 mV/V
Input resistance	700 Ω±140 Ω
Output resistance	700 Ω±140 Ω
Insulation resistance	1,000 MΩ or more (DC50 V) (between bridge and main body)
Temp. range, compensated	-10 ℃～50 ℃
Temp. range, safe	－30 ℃～80 ℃
Temp. effect on zero	1 %R.O./10 ℃
Temp. effect on output	1 %LOAD/10 ℃
Class of protection	IP00 or equivalent
Material of element	Alluminium alloy
Durability	1,000,000 times with rated load applied.

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts No.	Rated capacity [N]	Rated capacity [kgf]	Cable	Cable2	Cable3	3D CAD files [STEP]
CF054-30K	0.294	30	AWG30	150 mm directly attached	cable end is separated	CF054-30K.STEP
CF054-50K	0.490	50	AWG30	150 mm directly attached	cable end is separated	CF054-50K.STEP
CF054-60K	0.588	60	AWG30	150 mm directly attached	cable end is separated	CF054-60K.STEP
CF054-100K	0.981	100	AWG30	150 mm directly attached	cable end is separated	CF054-100K.STEP
CF054-200K	1.961	200	AWG30	150 mm directly attached	cable end is separated	CF054-200K.STEP
