Pressure Sensor Strain Gage type pressure transmitter

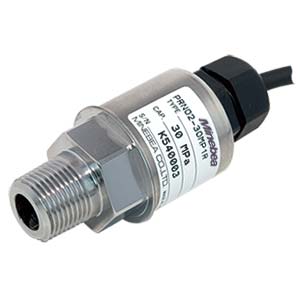

High endurance type pressure transducer PRN01 / PRN02 series

Features

・ ASIC(Application Specific I.C.) amplifier is installed.
・ High performance type pressure transmitter with a little temperature effect and excellent in noise.
・ Total accuracy : ±1.0 %F.S.
(Including the temperature effect from -20℃ to 70℃.)
・ The newly developed high stability and low current strain gage has been used for the diaphragm made of 17-4 PHs.
★ Application
Injection molding machine, Press machine, Various pump systems, Hydraulic apparatus

Specification

Specification name Specification contents
Rated capacity 5 MPa~100MPa
Safe overload 150 %R.C.
Ultimate overload
Accuracy ±1.0 %F.S. (including non-linearity, hysteresis, repeatability)
Rated output Current : 4 mA ~ 20 mA, Voltage : 0 V ~ 5 V, 1 V ~ 5 V
Response frequency
Power supply voltage 12 VDC ~ 28 VDC
Insulation resistance 1 000 MΩ or more (50 VDC)
Temp. range, compensated -20 ℃ ~ 70 ℃
Temp. range, safe -30 ℃ ~ 80 ℃
Temp. effect on zero ±2.0 %F.S./-20 ℃ ~70 ℃
Temp. effect on output ±2.0 %F.S./-20 ℃ ~70 ℃
Cable φ4.7, shielded 1 m cable directly attached, cable end is separated
Class of protection IP65 or equivalent
Material of element Stainless steel
Mounting screw G3/8{PF}, R3/8{PF} (PRN02-100MP : G1/2{PF}, R1/2{PF})

Table of P/N

Parts No. Rated capacity
[Mpa]
Weight(Approx.)
[g]
CAD files[DXF] CAD files 2[DXF] 3D CAD files [STEP] 3D CAD files 2 [STEP]
