Optional devices can be selected to suit the location,making it possible to use based on the operating environment
Features
・RS-232C to RS-232C bidirectional RS-232C standard distance communication barrier
・RS-422 to RS-232 bi-directional long-distance communication barrier (max. 1000m)
・Can be changed to RS-485 specification
-
-
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
Parts No.
Compatible models
Power supply
Cable length (primary side)
Cable length (secondary side)
Explosion-proof construction
Operating temp. range
lower limit
[deg.C]Operating temp. range
upper limit
[deg.C]Class of protection
Material
YDI05-Z CAIXS2,SignumEx,IS-X Not required or AC100V-240V Power consumption 8VA M54 1~1000m selectable YCC01-0019M3 or YCC01-0909ISM5 【ATEX】II 2GD EEx ib ⅡB/ⅡC -20 50 IP40 Stainless steel Click the arrow icon in the table below to switch from ascending to descending order.
scroll
Parts No.

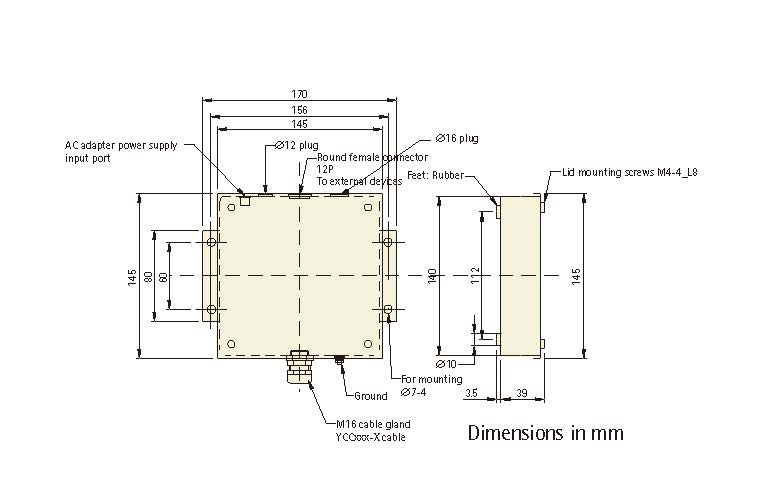

Size(W)
[cm]Size(D)
[cm]Size(H)
[cm]Specification sheet
Specification sheet2
Instruction Manual
YDI05-Z 17 4.2 14 353YDI05-Z-A24-A.pdf 353YDI05-Z-A25-A.pdf 294-1877-A.pdf
Custom
- ※Custom products are intended for mass production. Please consult us for small-lot orders.
