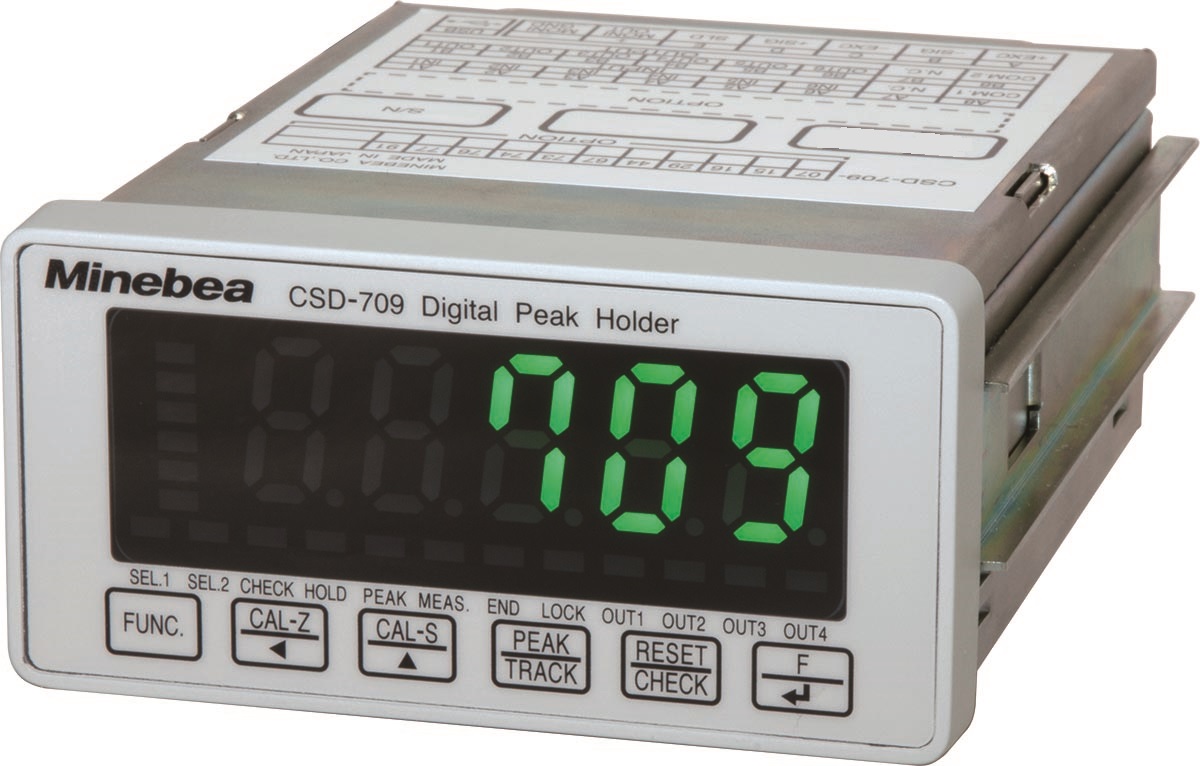

These devices, connected to various sensors and transducers, display measured values digitally and output signals, used for control and monitoring of measuring systems.Minebea Intec devices are weighing module that achieves 10000e Class Ⅲ level accuracy.High speed conversion enables response times from 10 ms.As well,a 10/100 Mbits/s LAN adapter is build in.
Features
・High speed sampling speed at 4 000 times/s
・Corresponding to the various application
・Holding function corresponding to the application.
・Various interface.
・Waveform display and condition setting is available with PC by the additional memory and the specialized software.
・Protection class: IP64
-
-
scroll
Specification name
Specification contents
Bridge power supply 10 VDC±0.5VDC within 60 mA(Changeable to 5 VDC or 2.5 VDC） Applicable transducer Strain gage based transducer 170 Ω ~ 1 000 Ω (at 10 V of bridge power supply) Input sensitivity 0.4 μV/d (d = Minimum scale) Input range -3.1 mV/V ~ 3.1 mV/V Zero adjustment range ±2.5 mV/V Monitor output 2 VDC ± 0.1 VDC per 1 mV/V of sensor input (at 10 VDC of bridge power supply), Load resistance: 2 kΩ or more Non-linearity 0.02 %±1 digit Temperature coefficient Zero point ±0.5 μV/℃ (in the calibraton with 0.4 μV/d or more of input sensitivity.)
Sensitivity ±0.002 5 %F.S./℃ (In the calibration with ±0.4 μV/d or more of input conversion.)Analog filter 100 Hz (Changeable to 10 Hz, 40 Hz, 400 Hz, 1 kHz, 4 kHz, 10 kHz or 30 kHz.)
* Effective only when analog peak hold is used.
* Fixed to 30 kHz when digital peak hold is used.Digital low pass filter 40 times/s: OFF, 0.1 Hz～ 4 Hz
400 times/s: OFF, 1 Hz～ 40 Hz
4000 times/s: OFF, 10 Hz～ 400 HzA/D sampling speed 4 000 times/s (Changeable to 40 times/s or 400 times/s) A/D internal resolution 24 bit CHECK value Approx. 0.3 mV/V Analog peak hold Response speed: According to the property of analog filter.
Analog filter set value 10 Hz, 40 Hz, 100 Hz, 400 Hz, 10 kHz, 4 kHz
Accuracy: Analog filter set value (-3 dB±1 dB) ±0.1 %
Analog filter set value 10 kHz
Accuracy: Analog filter set value (-3 dB±1 dB) ±0.5 %
Analog filter set value 30 kHz
Accuracy: Analog filter set value (-3 dB±1 dB) ±1 %Load display Display range ：-9 999 ~ 99 999
Display incriment ：1 (Changeable to 2, 5 or 10.)
Display unit ：Green 7 segment LED, Character height: 17 mm
Over display ：[-OL] appears in case of minus overflow, [OL] appears in case of plus overflow.
A/D value over display ： [-OVF] appears in case of minus overflow, [OVF] appears in case of plus overflow.Condition display SEL.1、SEL.2、CHECK、HOLD、PEAK、MEAS.、END、LOCK Display rate 20 times/s (Changeable to 4 times/s, 50 timess or 100 times/s) Judgement display OUT1, OUT2, OUT3, OUT4 Decimal point display Changeableto No display, 10¹,10², 10³,10⁴ External control input signal Any 6 signals listed below is selectable.
OFF, Zero set, Zero set clear, HOLD (pulse), Print command (Serial interface), Forced termination of multi-hold, HOLD (Level), Peak/Track, Reset, SEL.1, SEL.2, CHECK, Batched key lockExternal control output signal Any 6 signals listed below is selectable.
OFF, HOLD, PEAK, MEAS, END, MULTI (turned on in using multi-hold mode.), EXCUTE (turned on during measurement in multi-hold mode), NG (turned on under any condition except for OK condition.), Upper limit / Lower limit, S0, S1, S2, ERROR, Over error, Zero set response, RUN (Level / Toggle)Functions Analog filter, Digital filter, Digital low pass filter, Simplified calibration, CHECK value, Hold target change, Analog output target change, Brand code change, Peak mode selection, Digital peak hold, Analog peak hold, Monitor output, Monitor mode, Waveform comparison (when the optional parts is installed.), Measurement result log (when the optional parts is installed.) USB interface Compatible with USB 2.0 (can also be used with USB 1.1 compatible equipment)
Output connector: B type mini-USB connectorOperating temp.
/humidity range100 VAC ~ 240 VAC, 50/60 Hz (Permissible variable range 85 VAC ~ 264VAC) Power supply voltage 100 VAC 50/60 Hz(Permissiblevariable range 90 VAC ~ 121 VAC) Power consumption Approx.10 VA (withoutoptions, at 100 VAC)
Approx.18 VA at maximum(with options, at 100 VAC ~ 240 VAC)Outline dimensions
(WxHxD)96 mm x 48 mm x 110mm (excludes protruding parts) Weight Approx. 500 g (without options) Protection code IP64 or equivalent at the front panel section when the gasket is installed. Start guide
-
Instruction Manual
Specification
CAD
-
- Voltage output
- Current output
- BCD output (Sink type)
- BCD output (Source type)
- External control (Voltage input type)
- RS-232C interface
- RS-422/485 interface
- CC-Link interface
- Power supply voltage
- Serial interface
- Additional memory (with software for measurement CSD-709D-01)
- EzCTS（Ez Communication Tool Software for PC）
Custom
- ※Custom products are intended for mass production. Please consult us for small-lot orders.
