Supreme Stainless Steel Type(Monolithic Balance Type)

Minebea Intec

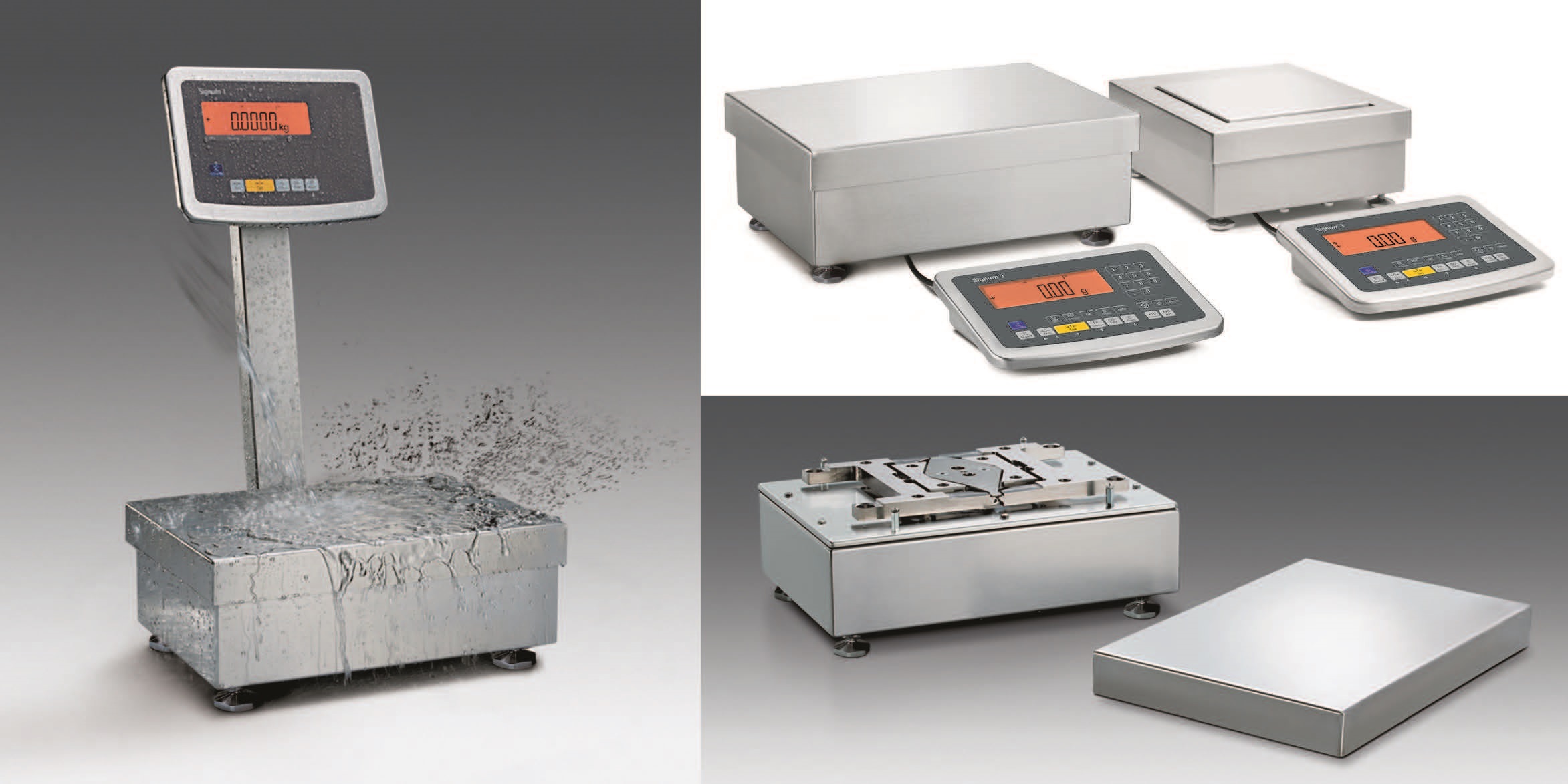

New platform scale that covers a 3g～35kg weighing range,yet has a compact design.Monolithic balance type supureme staimless steel type.

Features

・High resolution weighing scale with aluminum monolithic balance
・Lineup of 3.1kg～35kg weighing capacity
・Fully stainless steel specification IP65
・Optional internal weight available(Specified measuring instrument specifications internal weight as standard equipment)

  • scroll

    Specification name

    Specification contents

    Specification contents2
    Item SIWSBBS SIWSDCS
    Accuracy grade
    (special measuring instrument)    		 Level 2 Level 2
    Display Weight: 20mm LCD, dot matrix, 14 segments, backlight, unit symbol: g,kg(ct,lb,oz: not tested) Weight: 20mm LCD, dot matrix, 14 segments, backlight, unit symbol: g,kg(ct,lb,oz: not tested)
    Class of protection IP43 IP43
    Power supply
    (weighing section)    		 AC100-240V(-15%/+10%),50-60Hz, power consumption 23VA AC100-240V(-15%/+10%),50-60Hz, power consumption 23VA
    Operating temperature range 10℃～30℃ 10℃～30℃
    Operating humidity range Within 85%RH Within 85%RH
    Material
    (Scale plate)    		 Equivalent to JIS SUS304 polished finish Equivalent to JIS SUS304 polished finish
    Material
    (Weighing unit body)    		 Equivalent to JIS SUS304 Equivalent to JIS SUS304
    Material
    (Display)    		 Equivalent to JIS SUS304 Equivalent to JIS SUS304
    Interface RS-232C standard (COM1) RS-232C standard (COM1)
    Cable length 2m from the weighing section to the display section 2m from the weighing section to the display section

  • Click the arrow icon in the table below to switch from ascending to descending order.

    scroll

    Part No.

    Type approval

    Weighing Range
    lower limit
    [kg]

    Weighing Range
    upper limit
    [kg]

    Readability
    [g]

    Scale interval(e=)
    [g]

    Actual scale interval(d=)
    [g]

    Weight
    [kg]

    Loading platform dimensions(W)
    [mm]

    Loading platform dimensions
    (D)
    [mm]

    Standard equipment1

    Standard equipment2

    Standard equipment3

    Standard equipment4

    Standard equipment5

    Standard equipment6

    Standard equipment7

    Standard equipment8

    Standard equipment9

    Standard equipment10

    Standard equipment11

    Standard equipment12
    SIWSBBS-1-3-H 3.1 3.1 0.01 7.5 182 182 SQmin
    SIWSBBS-2-3-H 3.1 3.1 0.01 7.5 182 182 GMP compliant printing Internal program Counting function (Exempt from the test) Animal Weights(Exempt from the test) Summation function(Exempt from the test) check weight(Exempt from the test) Date/Time SQmin ID code entry
    SIWSBBS-3-3-H 3.1 3.1 0.01 7.5 182 182 GMP compliant printing Numeric input Alphabetic input Numeric Keypad Tare input Internal program Counting function (Exempt from the test) Animal Weights(Exempt from the test) Summation function(Exempt from the test) check weight(Exempt from the test) Date/Time SQmin ID code entry
    SIWSBBS-1-6-H 6.1 6.1 0.01 7.5 182 182 SQmin
    SIWSBBS-2-6-H 6.1 6.1 0.01 7.5 182 182 GMP compliant printing Internal program Counting function (Exempt from the test) Animal Weights(Exempt from the test) Summation function(Exempt from the test) check weight(Exempt from the test) Date/Time SQmin ID code entry
    SIWSBBS-3-6-H 6.1 6.1 0.01 7.5 182 182 GMP compliant printing Numeric input Alphabetic input Numeric Keypad Tare input Internal program Counting function (Exempt from the test) Animal Weights(Exempt from the test) Summation function(Exempt from the test) check weight(Exempt from the test) Date/Time SQmin ID code entry
    SIWSDCS-1-6-S 6 6 0.1 14.5 370 260 SQmin
    SIWSDCS-2-6-S 6 6 0.1 14.5 370 260 GMP compliant printing Internal program Counting function (Exempt from the test) Animal Weights(Exempt from the test) Summation function(Exempt from the test) check weight(Exempt from the test) Date/Time SQmin ID code entry
    SIWSDCS-3-6-S 6 6 0.1 14.5 370 260 GMP compliant printing Numeric input Alphabetic input Numeric Keypad Tare input Internal program Counting function (Exempt from the test) Animal Weights(Exempt from the test) Summation function(Exempt from the test) check weight(Exempt from the test) Date/Time SQmin ID code entry
    SIWSDCS-1-16-H 16 16 0.1 14.5 370 260 SQmin
    SIWSDCS-2-16-H 16 16 0.1 14.5 370 260 GMP compliant printing Internal program Counting function (Exempt from the test) Animal Weights(Exempt from the test) Summation function(Exempt from the test) check weight(Exempt from the test) Date/Time SQmin ID code entry
    SIWSDCS-3-16-H 16 16 0.1 14.5 370 260 GMP compliant printing Numeric input Alphabetic input Numeric Keypad Tare input Internal program Counting function (Exempt from the test) Animal Weights(Exempt from the test) Summation function(Exempt from the test) check weight(Exempt from the test) Date/Time SQmin ID code entry
    SIWSDCS-1-35-H 35 35 0.1 14.5 370 260 SQmin
    SIWSDCS-2-35-H 35 35 0.1 14.5 370 260 GMP compliant printing Internal program Counting function (Exempt from the test) Animal Weights(Exempt from the test) Summation function(Exempt from the test) check weight(Exempt from the test) Date/Time SQmin ID code entry
    SIWSDCS-3-35-H 35 35 0.1 14.5 370 260 GMP compliant printing Numeric input Alphabetic input Numeric Keypad Tare input Internal program Counting function (Exempt from the test) Animal Weights(Exempt from the test) Summation function(Exempt from the test) check weight(Exempt from the test) Date/Time SQmin ID code entry
    SIWSBBS-1-3-HCE No.184 (Approved model : BD SI 200) 3.1 0.0002 0.1 0.01 7.5 182 182 SQmin
    SIWSBBS-2-3-HCE No.184 (Approved model : BD SI 200) 3.1 0.0002 0.1 0.01 7.5 182 182 GMP compliant printing Internal program Counting function (Exempt from the test) Animal Weights(Exempt from the test) Summation function(Exempt from the test) check weight(Exempt from the test) Date/Time SQmin ID code entry
    SIWSBBS-3-3-HCE No.184 (Approved model : BD SI 200) 3.1 0.0002 0.1 0.01 7.5 182 182 GMP compliant printing Numeric input Alphabetic input Numeric Keypad Tare input Internal program Counting function (Exempt from the test) Animal Weights(Exempt from the test) Summation function(Exempt from the test) check weight(Exempt from the test) Date/Time SQmin ID code entry
    SIWSBBS-1-6-HCE No.184 (Approved model : BD SI 200) 6.1 0.0005 0.1 0.01 7.5 182 182 SQmin
    SIWSBBS-2-6-HCE No.184 (Approved model : BD SI 200) 6.1 0.0005 0.1 0.01 7.5 182 182 GMP compliant printing Internal program Counting function (Exempt from the test) Animal Weights(Exempt from the test) Summation function(Exempt from the test) check weight(Exempt from the test) Date/Time SQmin ID code entry
    SIWSBBS-3-6-HCE No.184 (Approved model : BD SI 200) 6.1 0.0005 0.1 0.01 7.5 182 182 GMP compliant printing Numeric input Alphabetic input Numeric Keypad Tare input Internal program Counting function (Exempt from the test) Animal Weights(Exempt from the test) Summation function(Exempt from the test) check weight(Exempt from the test) Date/Time SQmin ID code entry
    SIWSDCS-1-6-SCE No.184 (Approved model : BD SI 200、BG SI 200) 6 0.05 0.1 0.01 14.5 370 260 SQmin
    SIWSDCS-2-6-SCE No.184 (Approved model : BD SI 200、BG SI 200) 6 0.05 0.1 0.01 14.5 370 260 GMP compliant printing Internal program Counting function (Exempt from the test) Animal Weights(Exempt from the test) Summation function(Exempt from the test) check weight(Exempt from the test) Date/Time SQmin ID code entry
    SIWSDCS-3-6-SCE No.184 (Approved model : BD SI 200、BG SI 200) 6 0.05 0.1 0.01 14.5 370 260 GMP compliant printing Numeric input Alphabetic input Numeric Keypad Tare input Internal program Counting function (Exempt from the test) Animal Weights(Exempt from the test) Summation function(Exempt from the test) check weight(Exempt from the test) Date/Time SQmin ID code entry
    SIWSDCS-1-16-HCE No.184 (Approved model : BD SI 200、BG SI 200) 16 0.005 1.0 0.1 14.5 370 260 SQmin
    SIWSDCS-2-16-HCE No.184 (Approved model : BD SI 200、BG SI 200) 16 0.005 1.0 0.1 14.5 370 260 GMP compliant printing Internal program Counting function (Exempt from the test) Animal Weights(Exempt from the test) Summation function(Exempt from the test) check weight(Exempt from the test) Date/Time SQmin ID code entry
    SIWSDCS-3-16-HCE No.184 (Approved model : BD SI 200、BG SI 200) 16 0.005 1.0 0.1 14.5 370 260 GMP compliant printing Numeric input Alphabetic input Numeric Keypad Tare input Internal program Counting function (Exempt from the test) Animal Weights(Exempt from the test) Summation function(Exempt from the test) check weight(Exempt from the test) Date/Time SQmin ID code entry
    SIWSDCS-1-35-HCE No.184 (Approved model : BD SI 200、BG SI 200) 35 0.005 1.0 0.1 14.5 370 260 SQmin
    SIWSDCS-2-35-HCE No.184 (Approved model : BD SI 200、BG SI 200) 35 0.005 1.0 0.1 14.5 370 260 GMP compliant printing Internal program Counting function (Exempt from the test) Animal Weights(Exempt from the test) Summation function(Exempt from the test) check weight(Exempt from the test) Date/Time SQmin ID code entry
    SIWSDCS-3-35-HCE No.184 (Approved model : BD SI 200、BG SI 200) 35 0.005 1.0 0.1 14.5 370 260 GMP compliant printing Numeric input Alphabetic input Numeric Keypad Tare input Internal program Counting function (Exempt from the test) Animal Weights(Exempt from the test) Summation function(Exempt from the test) check weight(Exempt from the test) Date/Time SQmin ID code entry

    Click the arrow icon in the table below to switch from ascending to descending order.

    scroll

    Part No.

    Option (Additional Interface 1)

    Option (Additional Interface 2)

    Option (Additional Interface 3)

    Option (Additional Interface 4)

    Option (Additional Interface 5)

    Option (Additional Interface 6)

    Specification sheet

    Instruction Manual
    SIWSBBS-1-3-H RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSBBS-A.pdf 294-1835.pdf
    SIWSBBS-2-3-H RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSBBS-A.pdf 294-1835.pdf
    SIWSBBS-3-3-H RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSBBS-A.pdf 294-1835.pdf
    SIWSBBS-1-6-H RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSBBS-A.pdf 294-1835.pdf
    SIWSBBS-2-6-H RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSBBS-A.pdf 294-1835.pdf
    SIWSBBS-3-6-H RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSBBS-A.pdf 294-1835.pdf
    SIWSDCS-1-6-S RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSDCS-A.pdf 294-1835.pdf
    SIWSDCS-2-6-S RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSDCS-A.pdf 294-1835.pdf
    SIWSDCS-3-6-S RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSDCS-A.pdf 294-1835.pdf
    SIWSDCS-1-16-H RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSDCS-A.pdf 294-1835.pdf
    SIWSDCS-2-16-H RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSDCS-A.pdf 294-1835.pdf
    SIWSDCS-3-16-H RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSDCS-A.pdf 294-1835.pdf
    SIWSDCS-1-35-H RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSDCS-A.pdf 294-1835.pdf
    SIWSDCS-2-35-H RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSDCS-A.pdf 294-1835.pdf
    SIWSDCS-3-35-H RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSDCS-A.pdf 294-1835.pdf
    SIWSBBS-1-3-HCE RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSBBS(SMI)-A.pdf 294-1835.pdf
    SIWSBBS-2-3-HCE RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSBBS(SMI)-A.pdf 294-1835.pdf
    SIWSBBS-3-3-HCE RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSBBS(SMI)-A.pdf 294-1835.pdf
    SIWSBBS-1-6-HCE RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSBBS(SMI)-A.pdf 294-1835.pdf
    SIWSBBS-2-6-HCE RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSBBS(SMI)-A.pdf 294-1835.pdf
    SIWSBBS-3-6-HCE RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSBBS(SMI)-A.pdf 294-1835.pdf
    SIWSDCS-1-6-SCE RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSDCS(SMI)-A.pdf 294-1835.pdf
    SIWSDCS-2-6-SCE RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSDCS(SMI)-A.pdf 294-1835.pdf
    SIWSDCS-3-6-SCE RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSDCS(SMI)-A.pdf 294-1835.pdf
    SIWSDCS-1-16-HCE RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSDCS(SMI)-A.pdf 294-1835.pdf
    SIWSDCS-2-16-HCE RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSDCS(SMI)-A.pdf 294-1835.pdf
    SIWSDCS-3-16-HCE RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSDCS(SMI)-A.pdf 294-1835.pdf
    SIWSDCS-1-35-HCE RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSDCS(SMI)-A.pdf 294-1835.pdf
    SIWSDCS-2-35-HCE RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSDCS(SMI)-A.pdf 294-1835.pdf
    SIWSDCS-3-35-HCE RS-232C RS-422 RS-485 4-20mA DI/O 5in/5out EtherNet 217SIWSDCS(SMI)-A.pdf 294-1835.pdf
