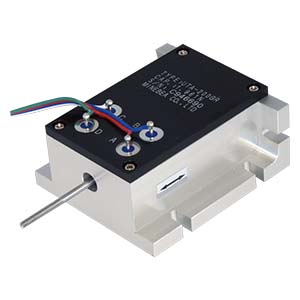

Small capacity bending beam type UTA

Custom

Load cells that use strain gage to convert tension, compression or mass into electric signals. Load cells, connected to various measuring devices for measuring purposes, display, record, control and keep track of the loads.
Applications are diverse varying from small sensors for use in electronic scales, bath scales, game consoles and home electronics to those for general industrial uses, such as truck scales, measuring systems in production lines and tank scales.

Features

The measuring capacity of UT series is a littlehigher than the UL series. It is a push-pulltype.

scroll

Specification name	Specification contents
Rated capacity	980.7 mN{100 gf}~19.61 N{2 kgf}
Safe overload	150 %R.C.
Ultimate overload	150 %R.C.
Rated output	±2 mV/V±0.4 mV/V(UTA-100GR:±1.75 mV/V±0.35 mV/V or more)
Non-linearity	0.2 %R.O.
Hysteresis	0.2 %R.O.
Repeatability	0.2 %R.O.
Excitation, recommended	3 V or less
Excitation, maximum	6 V
Zero balance	±0.2 mV/V (UTA-100GR:±0.175 mV/V)
Input resistance	270 Ω±40 Ω
Output resistance	270 Ω±40 Ω
Insulation resistance	1,000 MΩ 以上(DC50 V)
Temp. range, compensated	0 ℃ ~ 50 ℃
Temp. range, safe	-10 ℃ ~ 60 ℃
Temp. effect on zero	0.5 %R.O./10 ℃
Temp. effect on output	0.5 %LOAD/10 ℃
Class of protection	IP30 or equivalent
Durability	1,000,000 times with rated load applied.

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts No.	Rated capacity [N]	Rated capacity [mN]	Rated capacity [gf]	Rated capacity [kgf]	Weight(Approx.) [g]	Natural frequency [Hz]	Rated displacement [mm]	Cable	3D CAD files [STEP]	CAD files[DXF]
UTA-100GR		980.7	100		110	300	±0.04	4-cores parallel vinyl60 cm directly attached, cable end is separated	UTA-100GR.STEP	ut.dxf
UTA-200GR	1.961		200		110	440	±0.04	4-cores parallel vinyl60 cm directly attached, cable end is separated	UTA-200GR.STEP	ut.dxf
UTA-500GR	4.903		500		110	700	±0.04	4-cores parallel vinyl60 cm directly attached, cable end is separated	UTA-500GR.STEP	ut.dxf
UTA-1K		9.807		1	110	980	±0.04	4-cores parallel vinyl60 cm directly attached, cable end is separated	UTA-1K.STEP	ut.dxf
UTA-2K	19.61			2	110	1310	±0.04	4-cores parallel vinyl60 cm directly attached, cable end is separated	UTA-2K.STEP	ut.dxf
