Synus/Cosynus

Minebea Intec

Checkweighers are used in various industries such as the food or pharmaceutical industry, for checking product weight, completeness and other applications. The checkweigher product portfolio offers a wide range of checkweighers from in-line checkweighers and end-of-line checkweighers to combinations of checkweigher and metal detector.

Features

The modular designed checkweigher series Synus® allows for highprecision weight or integrity checking as well as the regulation of upstream filling systems.

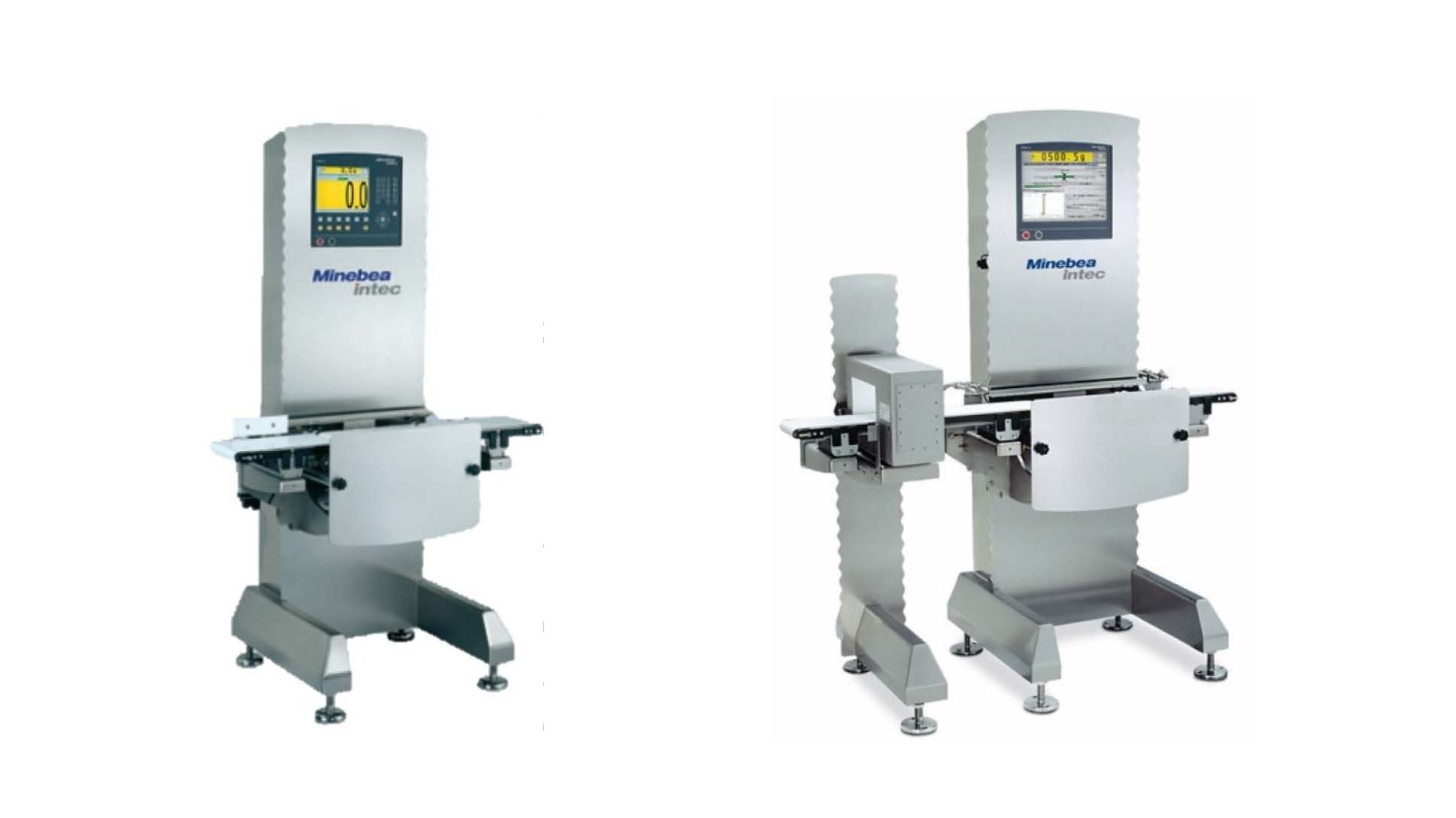

Cosynus Combines metal detector and checkweigher.
The operator can configure and control two instruments in one interface quickly and easily.

・EMFC high-resolution weighcell technology offering a high throughput combined with maximum accuracy
・Maximum throughput of 250 pcs. per minute
・Optimized standard configurations for versatile applications
・Possibility for integrating a Vistus® metal detector, even after initial installation
・Adjustable conveyor height, allowing you to adapt the checkweigher to changing situations
・Weight: approx. 250 kg (depending on configuration)

scroll

Specification name	Specification contents	Specification contents2	Specification contents3	Specification contents4
Item	WS 1 kg	WS 2 kg	WS 5 kg	WS 7 kg
Weighing range	0~1,000ｇ	0~2,000ｇ	0~5,000ｇ	0~7,000ｇ
Smallest calibration value	0.1g	0.2g	0.5g	1g
Standard throughput	0~250(pcs/min)	0~200(pcs/min)	0~180(pcs/min)	0~180(pcs/min)
Belt speed range	0.2 ~ 1.5(pcs/min)	0.2 ~ 1.2(pcs/min) / 0.5 ~ 1.5(pcs/min)	0.2 ~ 1.0(pcs/min) / 0.5 ~ 1.4(pcs/min)	0.2 ~ 1.0(pcs/min) / 0.5 ~ 1.4(pcs/min)
Conveyor height-1	600mm ~ 1,100mm	600mm ~ 1,100mm	600mm ~ 1,100mm	600mm ~ 1,100mm
Class of protection	IP54 / IP65 (optional)	IP54 / IP65 (optional)	IP54 / IP65 (optional)	IP54 / IP65 (optional)

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts No.

Catalog data

WS 1 kg CoSynus_en.pdf

WS 2 kg CoSynus_en.pdf

WS 5 kg CoSynus_en.pdf

WS 7 kg CoSynus_en.pdf
