70DCF-373
Standard Specifications
Operating Temp. : 0deg.C - +50deg.C (no condensation)
Storage Temp. : -20deg.C - +65deg.C
Insulation Class : Class B
Insulation Resistance : 10 M Ohm min. at 500 VDC
Dielectric Strength
: Blower : 1500 VAC for 1 min.
: Driver : 1500 VAC for 1 min.
Operation Guarantee
: Overcurrent protection
: Locked rotor protection
: Abnormal temperature rise protection
Safety Standard：
Blower : IEC/EN/UL62368-1, UL507, CSA-C22.2 No. 113-18
Driver : IEC/EN/UL62368-1, UL508C , CSA-C22.2 No. 14-18
※For TUV certification, please check the TÜV Rheinland certificate database or contact us.
Overview
The 70DCF picks up where the popular 60DCF leaves off to deliver enhanced performance while saving energy.
Employing a brushless DC motor, the 70DCF is designed to be used in combination with a special Minebea driver. It's a compact, high-power blower that provides maximum energy efficiency and controllability.
Originally designed for feeding paper (exhaustion) into a printing machine and sucking in it (suction), the 70DCF can be used in a wide range of industrial machines just like its predecessor models.
Performances
| Set model | 70DCF-373 |
|---|---|
| Blower model | 122-70-709 |
| Driver model | MDS-01AL003-02 |
| Input [W] |
2000 |
| Rated voltage [AC V] |
200 |
| Voltage range lower limit [AC V] |
180 |
| Voltage range upper limit [AC V] |
264 |
| Current(Reference values) [AC A] |
10 |
| Rotation speed(Reference values) [min-1] |
18000 |
| Maximum airflow [m3/min] |
5.0 |
| Maximum static pressure [kPa] |
28.0 |
| Maximum weight(Blower) [kg] |
9.0 |
| Maximum weight(Driver) [kg] |
4.0 |
*Choose the cable length. Cable code: 241-70-705-01/02/03 (1m/3m/5m)
*Blower & Driver : Only set-sales
*Prohibited area: 20kPa or more, 1m3 / min or less

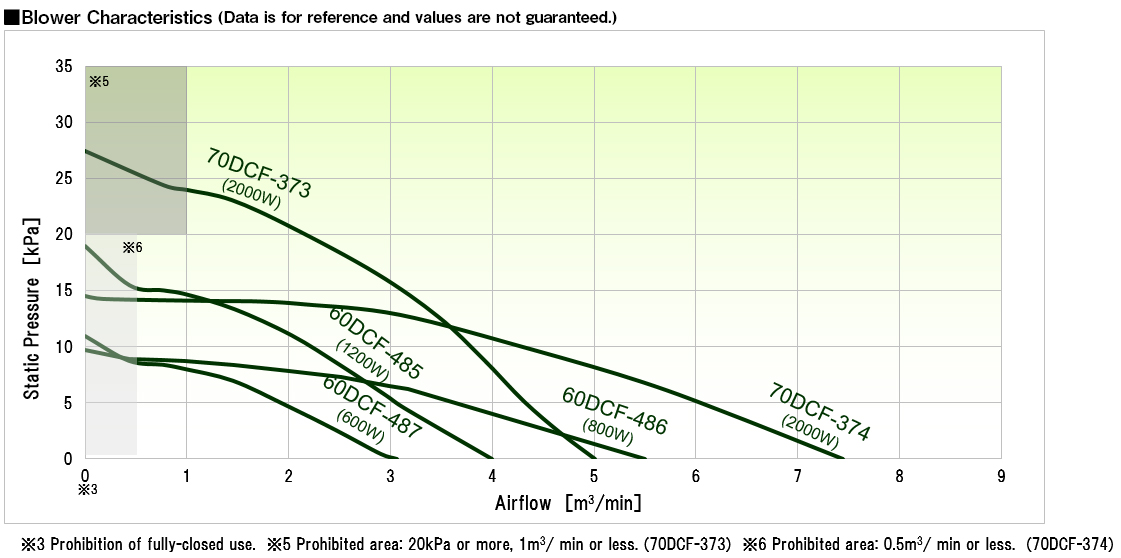

Blower Characteristic
*Data is for reference and values are not guaranteed.
Applications
Printing Machine, Washer, Precipitator, Packaging Machine, Food Machine, Semiconductor Equipment, Automatic instrument, Laboratory Equipment, Plant Air
