60DCF-486

High-pressure blowers developed for industrial machines such as printing machines, to blow and / or inhale printing papers by highly efficient airflow.

Standard Specifications

Operating Temp. : 0deg.C - +50deg.C (no condensation)
Storage Temp. : -20deg.C - +65deg.C
Insulation Class : Class B
Insulation Resistance : 10 M Ohm min. at 500 VDC
Dielectric Strength
: Blower : 1500 VAC for 1 min.
: Driver : 1500 VAC for 1 min.
Operation Guarantee
: Overcurrent protection
: Locked rotor protection
: Abnormal temperature rise protection
Safety Standard：
Blower : IEC/EN/UL62368-1, UL507, CSA-C22.2 No. 113-18
Driver : IEC/EN/UL62368-1, UL61800-5-1, CSA-C22.2 No. 274-17
※For TUV certification, please check the TUV Rheinland certificate database or contact us.

Set model	60DCF-486
Blower model	122-60-732
Driver model	MDS-01AL001-04, MDS-01AL001-05 (No rotation pulse output)
Input [W]	800
Rated voltage [AC V]	200
Voltage range lower limit [AC V]	180
Voltage range upper limit [AC V]	264
Current(Reference values) [AC A]	4
Rotation speed(Reference values) [min-1]	17000

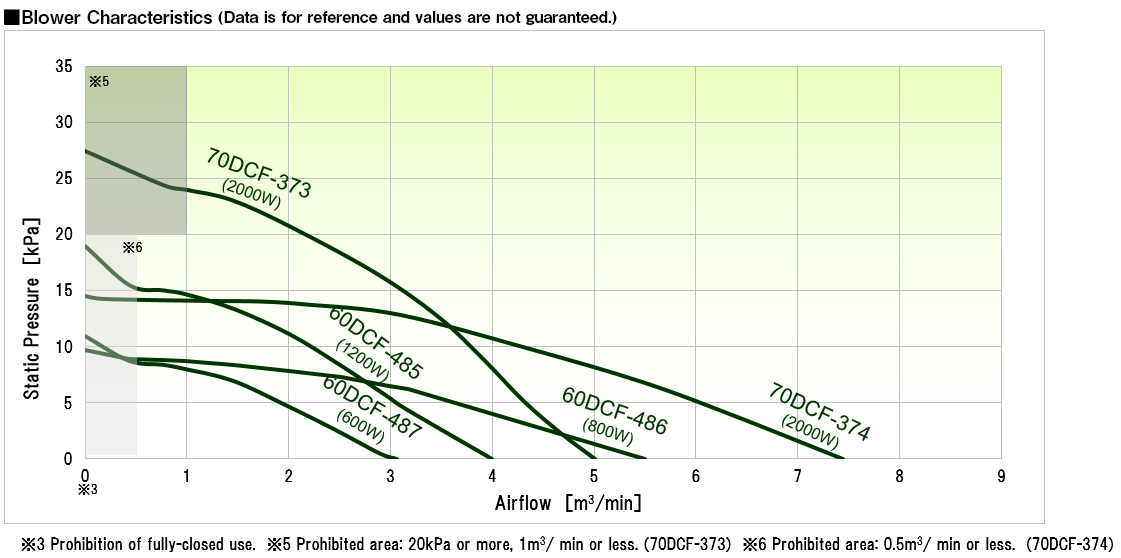

Maximum airflow [m3/min]	5.5
Maximum static pressure [kPa]	9.5
Maximum weight(Blower) [kg]	3.0
Maximum weight(Driver) [kg]	3.5

*Blower & Driver : Only set-sales
*Prohibition of fully-closed use.

*Data is for reference and values are not guaranteed.
This model was developed to meet the requirements of many of our customers.
It is a compact DC brushless blower that maintains highly efficient airflow static pressure characteristics.
We have developed a compact, high-power (high-rotation speed), high-efficiency model which can not be realized by AC blowers (see technical information for details).
The special driver includes features to reduce high-harmonic current that meets IEC61000_3_2 specifications.
It also complies with RoHS directives for environmental consideration.
Driver also has an error output only model (MDS-01AL001-05) without rotation pulse output.
