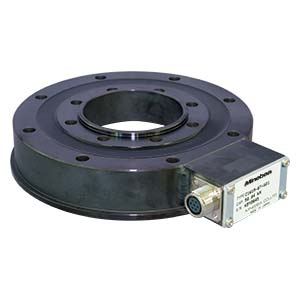

Centre hole type C1W1M

Custom

Load cells that use strain gage to convert tension, compression or mass into electric signals. Load cells, connected to various measuring devices for measuring purposes, display, record, control and keep track of the loads.
Applications are diverse varying from small sensors for use in electronic scales, bath scales, game consoles and home electronics to those for general industrial uses, such as truck scales, measuring systems in production lines and tank scales.

Features

Canister, through-hole type.
Suitable for application in injection moldingmachines.

scroll

Specification name	Specification contents
Rated capacity	58.84 kN{6 tf}~490.3 kN{50 tf}
Safe overload	150 %R.C.
Ultimate overload	150 %R.C.
Non-linearity	0.6 %R.O.
Hysteresis	0.6 %R.O.
Repeatability	0.2 %R.O.
Current output	4 mA ~ 20 mA (3 wires method, load resistance 500 ohm or less at 24 V)
Power supply voltage	DC 24 V(21.6 V ~ 26.4 V)
Temp. range, compensated	0 ℃ ~ 60 ℃
Temp. range, safe	-10 ℃ ~ 70 ℃
Temp. effect on zero	0.15 %R.O./10 ℃
Temp. effect on output	0.15 %LOAD/10 ℃
Class of protection	IP64 or equivalent
Material of element	Alloy steel
Durability	1,000,000 times with rated load applied.

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts No.	Rated capacity [N]	Rated capacity [kN]	Rated capacity [tf]	Weight(Approx. ) [kg]	Natural frequency [Hz]	Rated displacement [mm]	Cable	3D CAD files [STEP]	CAD files[DXF]
C1W1M-6T-S01	58.84		6	4	2000	0.05	φ4.7, 4-cores shielded5 m cable directly attached Y-type crimp terminal lugs attached at cable end.	C1W1M-6T-S01.STEP	c1w1m_6t.dxf
C1W1M-8T-S01		78.450	8	4	2000	0.05	φ4.7, 4-cores shielded5 m cable directly attached Y-type crimp terminal lugs attached at cable end.	C1W1M-8T-S01.STEP	c1w1m_6t.dxf
C1W1M-15T-S01		147.100	15	7	2000	0.05	φ4.7, 4-cores shielded5 m cable directly attached Y-type crimp terminal lugs attached at cable end.	C1W1M-15T-S01.STEP	c1w1m_15t.dxf
C1W1M-20T-S01		196.100	20	7	2000	0.05	φ4.7, 4-cores shielded5 m cable directly attached Y-type crimp terminal lugs attached at cable end.	C1W1M-20T-S01.STEP	c1w1m_15t.dxf
C1W1M-34T-S01		333.400	34	18	2000	0.06	φ4.7, 4-cores shielded5 m cable directly attached Y-type crimp terminal lugs attached at cable end.	C1W1M-34T-S01.STEP	c1w1m_34t.dxf
C1W1M-50T-S01		490.300	50	18	2000	0.06	φ4.7, 4-cores shielded5 m cable directly attached Y-type crimp terminal lugs attached at cable end.	C1W1M-50T-S01.STEP	c1w1m_34t.dxf
