Alternative
Features
Printed circuit board type
1 CH (CSA-504S-1B)

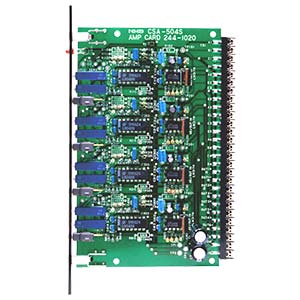

4 CH (CSA-504SB)
Specification
| Specification name | Specification contents |
|---|---|
| Bridge power supply | 10 VDC±1 VDC |
| Sensitivity | 10 V output at theinput of 1 mV/V |
| Sensitivity adjustable range | 1 000 times Adjustable from 1/1 times to 0.9 times |
| Input range | 0.3 mV/V ~ 3 mV/V |
| Output | ±10 V Load resistance2 k-ohm or more |
| Zero adjustment range | Tare compensation Adjustable by internal fixed resistance Zero adjustment Adjustable ±0.1 mV/V by trimmer |
| Non-linearity (Display and voltage output) |
±0.1 %F.S. |
| Temperature efficient | Zero point within ±2 uV/℃ (Input conversion), Sensitivity within ±0.05 %F.S./℃ |
| Frequency response range | 10 Hz (±3 dB) |
| Operating temp. / humidity range | Temperature 0 ℃ ~50 ℃, Humidity 85%RH or less (Non condensing) |
| Power supply | ±15 VDC±0.75 VDC 550 mA (When summing four transducers in all channels.) |
| Outline dimensions (WxHxD) | 42 mm x 176 mm x 164.4 mm (Excludes protruding parts.) |
| Weight | Approx. 0.3 kg |
