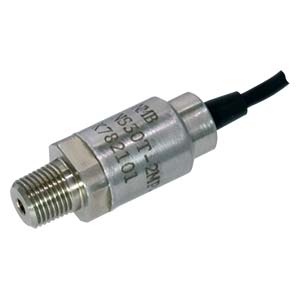

High temperature type pressure transducer NS30T series for compound pressure measurement

Features

・Small size and light weight
・The manifold type pressure can be measured by high accuracy and the high response.
・Natural frequency : 72 kHz to 566 kHz
・Accuracy 0.2 %R.O.
・Temperature environment 150℃ at max.(NS30T-H series)

【Application】
Experimental use of automatic transmission engine, Various test benches, Solenoid valve experiment device,Calorie meter, CO2 compressor,
Flow measurement device

scroll

Specification name	Specification contents
Rated capacity	200 kPa ~ 10 MPa
Safe overload	200 %R.C.
Ultimate overload	300 %R.C.
Accuracy	±0.2 %R.O. (including non-linearity, hysteresis and repeatability)
Rated output	1.5mV/V±0.15 mV/V (NS30T-200KP/-500KP: 1.0 mV/V±0.10 mV/V)
Excitation, recommended	10 VDC
Excitation, maximum	15 VDC
Zero balance	±0.05 mV/V
Input resistance	700 Ω ~ 1 000 Ω
Output resistance	700 Ω ~ 1 000 Ω
Insulation resistance	5 000 MΩ or more
Temp. range, compensated	-20 ℃ ~ 120℃ (-40 ℃ ~ 150℃ for specialized model)
Temp. range, safe	-45 ℃ ~ 160 ℃
Temp. effect on zero	±0.2 %R.O./10 ℃
Temp. effect on output	±0.2　%LOAD/10 ℃
Class of protection	IP65 or equivalent
Material of cover	Stainless steel (SUS340L)
Material of diaphragm	Single crystal sapphire
Mounting screw	R1/8
Tightening torque	20 N･m ~ 40 N･m
Cable	φ3.8,shielded high temperature 3 m cable directly attached, cable end is separated

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts No.	Rated capacity [kPa]	Rated capacity [Mpa]	Rated output [mV/V]	Tolerance of rated output [mV/V]	Natural frequency [KHz]	Weight(Approx.) [g]	CAD files[DXF]	3D CAD files [STEP]
NS30T-200KP＊(-＊＊)	200		1.0	0.10	72	50	ns30t.dxf	NS30T-200KP＊(-＊＊).STEP
NS30T-500KP＊(-＊＊)	500		1.0	0.10	90	50	ns30t.dxf	NS30T-500KP＊(-＊＊).STEP
NS30T-1MP＊(-＊＊)		1	1.5	0.15	119	50	ns30t.dxf	NS30T-1MP＊(-＊＊).STEP
NS30T-2MP＊(-＊＊)		2	1.5	0.15	152	50	ns30t.dxf	NS30T-2MP＊(-＊＊).STEP
NS30T-3MP＊(-＊＊)		3	1.5	0.15	224	50	ns30t.dxf	NS30T-3MP＊(-＊＊).STEP
NS30T-5MP＊(-＊＊)		5	1.5	0.15	406	50	ns30t.dxf	NS30T-5MP＊(-＊＊).STEP
NS30T-10MP＊(-＊＊)		10	1.5	0.15	566	50	ns30t.dxf	NS30T-10MP＊(-＊＊).STEP
