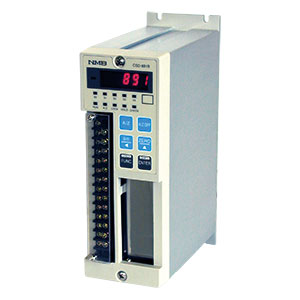

Built-in control panel type digital indicator CSD-891B

Discontinued Products

These devices, connected to various sensors and transducers, display measured values digitally and output signals, used for control and monitoring of measuring systems.Minebea Intec devices are weighing module that achieves 10000e Class Ⅲ level accuracy.High speed conversion enables response times from 10 ms.As well,a 10/100 Mbits/s LAN adapter is build in.

Features

・Small size suitable for built in control panels.
・Variety of interfaces with the computer, sequencer, etc.,

Alternative

Weight conversion module CSD-892B series

(Bridge power supply: 10V DC. If remote sensing is required

use Digital Indicator CSD-903B-EX.)

scroll

Specification name	Specification contents
Bridge power supply	10 VDC±0.25 VDC within 120 mA (Changeable to 5 VDC or 2.5 VDC） with remote sensing
Input range	F.S. setting is availableat the input from 0.2 mV/V to 3.1 mV/V （When bridge power supply is DC10 V）
Zero adjustment range	-2.5 mV/V to 2.5 mV/V
Non-linearity	0.01 %F.S.
Temperature effect	Zero point ±0.2 μV/℃ (Inputconversion, in F.S. setting at the input from 0.3mV/V to 3.1 mV/V) Sensitivity ±0.0015 %F.S./℃(Input conversion, in F.S. setting at the inputfrom 0.3 mV/V to 3.1 mV/V)
Input noice	±0.3 μVp-por less (atthe default setting of digital filter and stabilizationfilter)
Input filter	4 Hz (at OFF settingof the digital filter and the stabilization filter)
A/D sampling speed	200 times/s
Display range	-9 999 to 99 999
Display times	20 times/s (Changeable to 4 times/s, 50 times/s or 100times/s)
External control function	ZERO, A/Z, A/Z OFF, HOLD, LOCK
Comparator function	'Set value ：-99 999 to 99 999 Set quantity ：5 points of S0, S1, S2, S3 and S4 Comparator conversion rate Changeable to ：10 times/s, 20 times/s, 50 times/s, 100 times/s or 200 times/s Open collector output function ：5 points of S0, S1, S2, S3 and S4
Operating temp. /humidity range	Temperature -10 ℃ to 50 ℃, Humidity 85 %RH or less (Non condensing)
Power supply voltage	100 VAC to 240 VAC 50/60Hz (Permissible variable range 85 VAC to 264 VAC)
Power consumption	Approx. 16 VA(withoutoptions, at AC100 V) Approx.19 VA at maximum (with options, at AC100V to 240 V)
Outline dimensions (WxHxD)	67 mm x 208 mm x 140.7 mm (excludes protruding parts)
Weight	Approx. 1.2 kg (without options)

Instruction Manual
- No.EN294-1143
- Instruction manual No.294-1146 for CC-Link interface
Specification
- No.EN382891B
CAD
- csd891B.dxf
Software/Firmware
- CSP+ file (CC-Link Family System Profile Plus)file 0x0210_CSD-891B_1.00_ja.zip
- Current output
- Voltage output
- BCD output
- CC-Link interface
- RS-232C interface
- RS-422/485 interface
