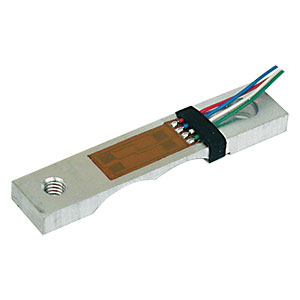

Force Sensor
FSI series
Features
Aluminum alloy. Full bridge type.
Rated capacity : 19.61 N {2 kgf}~196.1 N {20 kgf}
Specification
| Specification name | Specification contents |
|---|---|
| Rated output | 19.61 N{2 kgf}～196.1 N{20 kgf} |
| Safe overload | 150 %R.C. |
| Rated output | -1.58 mV/V±0.158 mV/V ~ -2.14 mV/V±0.214 mV/V (See below) |
| Non-linearity | 0.05 %R.O. |
| Hysteresis | 0.05 %R.O. |
| Repeatability | 0.05 %R.O. |
| Creep | 0.15 %R.O./1 min |
| Creep recovery | 0.15 %R.O./1 min |
| Excitation, recommended | 10 V or less |
| Excitation, maximum | 15 V |
| Zero balance | ±1 mV/V |
| Input resistance | 350 Ω±35 Ω |
| Output resistance | 350 Ω±35 Ω |
| Insulation resistance | 1,000 MΩ or more (DC50 V) (between bridge and main body) |
| Temp. range, compensated | －10 ℃～50 ℃ |
| Temp. range, safe | －10 ℃～50 ℃ |
| Temp. effect on zero | 1 %R.O./10 ℃ |
| Temp. effect on output | 1 %LOAD/10 ℃ |
| Humidity protection | Zero balance shift after the following condition. (Condition: Temperature 40 ℃, Humidity 95 %, Hour 24 hours) |
| Class of protection | IP00 or equivalent |
| Material of element | Alluminium alloy |
| Durability | 1,000,000 times with rated load applied. |
Table of P/N
| Parts No. | Rated capacity [N] |
Rated capacity [kgf] |
Weight(Approx. ) [g] |
3D CAD files [STEP] | CAD files[DXF] |
|---|
