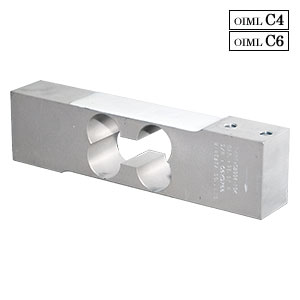

Middle capacity for commercial scale CB004-＊-C4/-C6 OIML standard

Load cells to be applied to a electrical commercail scale.

Features

・Mid. capacity.
・Accurate and reliable model (OIML R60 C4&C6 certified).

scroll

Specification name	Specification contents
Accuracy class	10K～45K：OIML R60 C4、60K、100K：OIML R60 C6
Maximum scale interval	10K～45K：4,000、60K、100K：6,000
Rated capacity	10kg～100kg
Minimum detected scale (Vmin)	1g～10g
Safe overload	150 %R.C.
Ultimate overload	200 %R.C.
Rated output	2 mV/V±0.2 mV/V
Non-linearity	0.012 %R.O.
Hysteresis	0.012 %R.O.
Repeatability	0.010 %R.O.
Creep	0.012 %R.O./30 min (60K~100K： 0.008 %R.O./30 min)
Creep recovery	0.012 %R.O./30 min (60K~100K： 0.008 %R.O./30 min)
Excitation, recommended	12 V or less
Excitation, maximum	20 V
Zero balance	±0.1 mV/V
Input resistance	400 Ω ~ 450 Ω
Output resistance	345 Ω ~ 350 Ω
Insulation resistance	2,000 MΩ or more (DC50 V)(between bridge and main body)
Temp. range, compensated	－10 ℃～40 ℃
Temp. range, safe	－10 ℃～40 ℃
Temp. effect on zero	0.014 %R.O./10 ℃
Temp. effect on output	0.010 %LOAD/10 ℃
Options	IP64 or equivalent
Class of protection	Alluminium alloy
Durability	1,000,000 times with rated load applied.
Effect of eccentric load	・Size of loading plate is 400 mm x 400 mm at maximum. ・The center of loading plate and the center of load cell should be the same position ・Error is within 0.01 %R.O. applied with 1/2 of rated capacity at the position of 100 mm of eccentricity.

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts No.	Rated capacity [kg]	Weight(Approx.) [g]	Natural frequency [Hz]	Rated displacement [mm]	Class of protection	3D CAD files [STEP]	CAD files[DXF]
CB004-10K-C4	10	350	160	0.55	IP64 or equivalent	CB004-10K-C4.STEP	cb004.dxf
CB004-15K-C4	15	350	200	0.55	IP64 or equivalent	CB004-15K-C4.STEP	cb004.dxf
CB004-20K-C4	20	350	230	0.55	IP64 or equivalent	CB004-20K-C4.STEP	cb004.dxf
CB004-25K-C4	25	350	250	0.55	IP64 or equivalent	CB004-25K-C4.STEP	cb004.dxf
CB004-30K-C4	30	360	270	0.55	IP64 or equivalent	CB004-30K-C4.STEP	cb004.dxf
CB004-35K-C4	35	360	300	0.55	IP64 or equivalent	CB004-35K-C4.STEP	cb004.dxf
CB004-45K-C4	45	370	330	0.55	IP64 or equivalent	CB004-45K-C4.STEP	cb004.dxf
CB004-60K-C6	60	380	380	0.55	IP64 or equivalent	CB004-60K-C6.STEP	cb004.dxf
CB004-100K-C6	100	390	480	0.55	IP64 or equivalent	CB004-100K-C6.STEP	cb004.dxf
