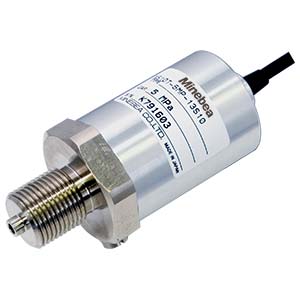

High temperature type pressure transducer NS10T series for compound pressure measurement

Features

・High accuracy at 0.2 %R.O.(including non-linearity, hysteresis and repeatability.) 0.1 %R.O. as high accurate spec. is available.
・Natural frequency : 72 kHz to 1 278 kHz
・Gage pressure measurement (including compound pressure and negative pressure) from -100 kPa to each rated capacity (200 kPa to 10 MPa) is measurable.
・Temperature environment upto150 ℃ is possible.

【Application】
Automatic transmission or engine test stand.
Changeable valve lift mechanism testing instrument and various test benches, Solenoid valve experiment device, Calorie meter, CO2 compressor, Flow measurement device

scroll

Specification name	Specification contents
Rated capacity	200 kPa to 50 MPa
Safe overload	200 %R.C.
Ultimate overload	300 %R.C.
Accuracy	±0.2%R.O. (±0.1%R.O. for high accurate type ), (including non-linearity, hysteresis and repeatability)
Rated output	1.5 mV/V±0.15 mV/V, (NS10T-200KP, -500KP: 1.0 mV/V±0.10 mV/V)
Excitation, recommended	10 VDC
Excitation, maximum	15 VDC
Zero balance	±0.05 mV/V
Input resistance	700 Ω to 1 000 Ω
Output resistance	700 Ω to 1 000 Ω
Insulation resistance	5 000 MΩ or more
Temp. range, compensated	-20 ℃ to 120 ℃
Temp. range, safe	-40 ℃ to 160 ℃
Temp. effect on zero	0.2 %R.O./10 ℃
Temp. effect on output	0.2 %LOAD/10 ℃
Class of protection	IP55 or equivalent
Material of pressure inlet hole	SUS630 or 17-4PH
Material of cover	Aluminium (Alumite processing)
Material of diaphragm	Saphire
Mounting screw	3/8 G{PF}, R{PT}
Tightening torque	20N･m to 40 N･m
Cable	φ3.8, high temperature type shielded 3 m cable directly attached, cable end is separated

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts No.	Rated capacity [kPa]	Rated capacity [Mpa]	Rated output [mV/V]	Tolerance of rated output [mV/V]	Natural frequency [KHz]	Weight(Approx.) [g]	CAD files[DXF]	CAD files 2[DXF]	3D CAD files [STEP]
NS10T-200KP＊(-＊＊)	200		1.0	0.10	72	200	ns10t_g38h.dxf	ns10th_r38a.dxf	NS10T-200KP＊(-＊＊).STEP
NS10T-500KP＊(-＊＊)	500		1.0	0.10	90	200	ns10t_g38h.dxf	ns10th_r38a.dxf	NS10T-500KP＊(-＊＊).STEP
NS10T-1MP＊(-＊＊)		1	1.5	0.15	119	200	ns10t_g38h.dxf	ns10th_r38a.dxf	NS10T-1MP＊(-＊＊).STEP
NS10T-2MP＊(-＊＊)		2	1.5	0.15	152	200	ns10t_g38h.dxf	ns10th_r38a.dxf	NS10T-2MP＊(-＊＊).STEP
NS10T-5MP＊(-＊＊)		5	1.5	0.15	406	200	ns10t_g38h.dxf	ns10th_r38a.dxf	NS10T-5MP＊(-＊＊).STEP
NS10T-10MP＊(-＊＊)		10	1.5	0.15	566	200	ns10t_g38h.dxf	ns10th_r38a.dxf	NS10T-10MP＊(-＊＊).STEP
NS10T-20MP＊(-＊＊)		20	1.5	0.15	813	200	ns10t_g38h.dxf	ns10th_r38a.dxf	NS10T-20MP＊(-＊＊).STEP
NS10T-30MP＊(-＊＊)		30	1.5	0.15	900	200	ns10t_g38h.dxf	ns10th_r38a.dxf	NS10T-30MP＊(-＊＊).STEP
NS10T-35MP＊(-＊＊)		35	1.5	0.15	988	200	ns10t_g38h.dxf	ns10th_r38a.dxf	NS10T-35MP＊(-＊＊).STEP
NS10T-50MP＊(-＊＊)		50	1.5	0.15	1278	200	ns10t_g38h.dxf	ns10th_r38a.dxf	NS10T-50MP＊(-＊＊).STEP
