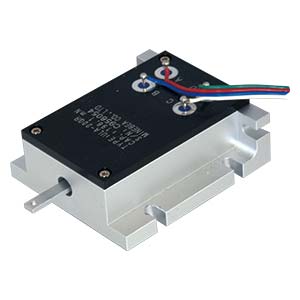

Small capacity bending beam type UL/ULA

Custom

Load cells that use strain gage to convert tension, compression or mass into electric signals. Load cells, connected to various measuring devices for measuring purposes, display, record, control and keep track of the loads.
Applications are diverse varying from small sensors for use in electronic scales, bath scales, game consoles and home electronics to those for general industrial uses, such as truck scales, measuring systems in production lines and tank scales.

Features

A low capacity, universal, bending beam loadcell. The UL is excellent when small force measurementsare required.

scroll

Specification name	Specification contents
Rated capacity	19.61 mN{2 gf}~980.7 mN{100 gf}
Safe overload	130 %R.C.
Ultimate overload	130 %R.C.
Rated output	±1.75 mV/V±0.35 mV/V (UL-2GR : ±0.65 mV/V±0.15 mV/V)
Non-linearity	0.2 %R.O. (UL-2GR: 0.3 %R.O.)
Hysteresis	0.2 %R.O. (UL-2GR: 0.3 %R.O.)
Repeatability	0.2 %R.O. (UL-2GR: 0.3 %R.O.)
Excitation, recommended	3 Vor less
Excitation, maximum	6 V
Zero balance	±0.175 mV/V (UL-2GR : ±0.05 mV/V)
Input resistance	270 Ω±40 Ω
Output resistance	270 Ω±40 Ω
Insulation resistance	1,000 MΩ or more (DC50 V)
Temp. range, compensated	0 ℃ ~ 50 ℃
Temp. range, safe	-10 ℃ ~ 60 ℃
Temp. effect on zero	0.5 %R.O./10 ℃
Temp. effect on output	0.5 %LOAD/10 ℃
Class of protection	IP30 or equivalent
Durability	1,000,000 times with rated load applied.

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts No.	Rated capacity [mN]	Rated capacity [gf]	Weight(Approx.) [g]	Natural frequency [Hz]	Rated displacement [mm]	Cable	3D CAD files [STEP]	CAD files[DXF]
UL-2GR	19.61	2	100	60	±0.12	4-cores parallel vinyl60 cm directly attached, cable end is separated	UL-2GR.STEP	ul2gr.dxf
ULA-10GR	98.07	10	100	133	±0.4	4-cores parallel vinyl60 cm directly attached, cable end is separated	ULA-10GR.STEP	ul10gr.dxf
ULA-20GR	196.1	20	100	192	±0.4	4-cores parallel vinyl60 cm directly attached, cable end is separated	ULA-20GR.STEP	ul10gr.dxf
ULA-50GR	490.3	50	100	208	±0.4	4-cores parallel vinyl60 cm directly attached, cable end is separated	ULA-50GR.STEP	ul10gr.dxf
ULA-100GR	980.7	100	100	286	±0.4	4-cores parallel vinyl60 cm directly attached, cable end is separated	ULA-100GR.STEP	ul10gr.dxf
