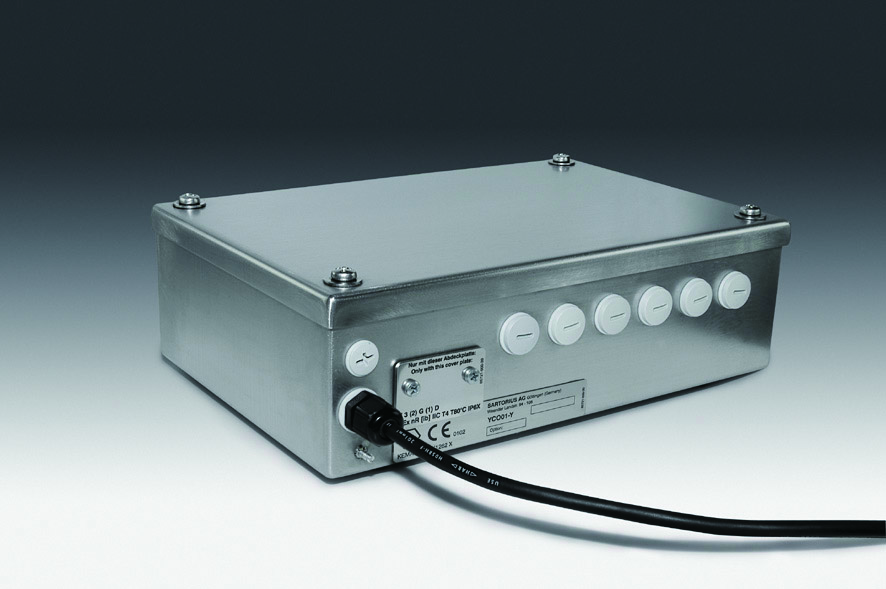

Intrinsically Safe Explosion-Proof Power Supply for Installation in Safe Areas
Optional devices can be selected to suit the location,making it possible to use based on the operating environment
Features
・Safe area installation type
-
-
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
Parts No.
Compatible models
Power supply
Cable length (primary side)
Cable length (secondary side)
Explosion-proof construction
Operating temp. range
lower limit
[deg.C]Operating temp. range
upper limit
[deg.C]Class of protection
Material
YPSC01-Z IS-X, CIXS3, SIWXS AC100V ~ 240V (-10%/+10%) 50/60Hz (consumption power 40W) Model N9 3m 10mmΦ. open end (ATEX) Model N2 4 to～40m 8mmΦ with Amphenol female connector 【ATEX】II 2G Ex e mb [ib] IIC T4/II 1D(2)G Ex tD A20 [ib] IIC IP6× T130℃ 0 40 IP65 JIS SUS304 equivalent Click the arrow icon in the table below to switch from ascending to descending order.
scroll

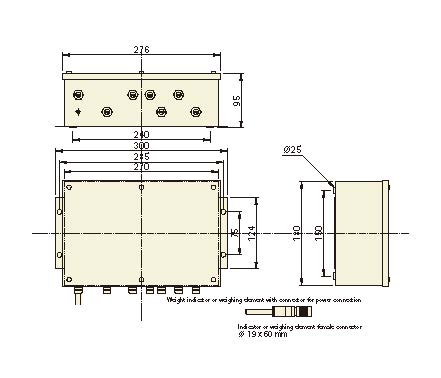

Parts No.
Size(W)
[cm]Size(D)
[cm]Size(H)
[cm]Specification sheet
Instruction Manual
YPSC01-Z 30 18.6 9.5 353YPSC01.pdf 294-1878-A.pdf
Custom
- ※Custom products are intended for mass production. Please consult us for small-lot orders.
