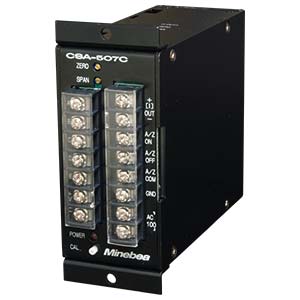

Transmitter CSA-507C

The transmitter is an amplifier that amplifies the signal from the strain gage applied transducers (load cell, pressure sensor, torque transducer, and diplacement sensor, etc.), and outputs the current or the voltage in the analogue. These transmittor excels in the response, and shape and the function are different according to the usage.

Features

・Small size, Light weight
・Simple operation, Low price
・Trimmer to adjust the current output is equipped

scroll

Specification name	Specification contents
Bridge power supply	10 VDC±0.3 VDC within 30 mA (Changeable to 5 VDC or 2.5 VDC)
Input range	0.5 mV/V ~ 3 mV/V
Sensitivity adjustable range	1 000 times, 2 000times or 3 000 times (Changeover with the internal dip switch) Adjust 1/1 ~ 1/4 against each setting.
Output	±10 VDC (Not isolated)
Output Load Resistance	2 k-ohm or more
Zero adjustment range	±0.25 mV/V *Tare weightcancellation will be adjusted by installing resistanceexternally.
Non-linearity (Display and voltage output)	within 0.02 %F.S.
Temperature efficient	Zero point ±1 μV/℃ (Inputconversion), Sensitibity within ±0.01 %F.S/℃
CALIB	1 mV/V±0.002 mV/V (Changeable to either 0.5 mV/V±0.001 mV/V or 0.25 mV/V±0.000 5mV/V if specified at the order.)
Frequency response range	1 Hz, 10 Hz, 100 Hz,1 kHz (Changeable by internal DIP switch)
Operating temp. / humidity range	Temperature -10 ℃ ~50 ℃, Humidity 85%RH or less (Non condensing)
Power supply	100 VAC (90 VAC ~ 115 VAC), 50/60 Hz
Power consumption	Approx. 5 VA (at 100 VAC)
Outline dimensions (WxHxD)	CSA-507C 44 mm x 90mm x 110 mm CSA-507C-99 44 mm x 90 mm x 230 mm (Excludes protrudingparts)
Weight	CSA-507C Approx. 700 g CSA-507C-99 Approx. 1 200 g
Options	Current output, Automaticzero function, Power supply voltage
