Miniature & small ball bearings Deep groove ball bearings
DDA-2520ZZ

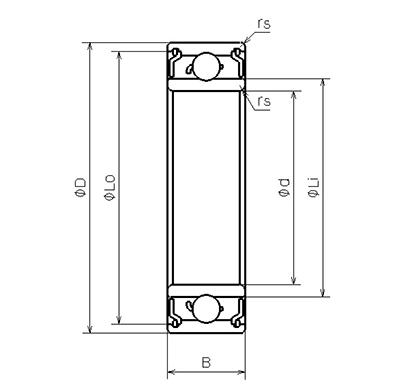

Outline
| NMB Parts No. | DDA-2520ZZ |
|---|---|
| Metric or Inch | Metric |
| ISO/JIS | - |
| Material of Rings | Stainless Steel |
| Ring Type | [Radial] Standard |
| Inner Diameter (d) [mm] |
20.000 |
| Outer Diameter (D) [mm] |
25.000 |
| Width (B) [mm] |
4.000 |
| Chamfer (rs min) [mm] |
0.150 |
| Reference Diameter Outer (Lo) [mm] |
23.840 |
| Reference Diameter Inner (Li) [mm] |
21.350 |
| Ball Size (DW) [mm] |
1.5875 |
| Ball Complement (Z) |
17 |
| Dynamic Load Rating (Cr) [N] |
1012 |
| Static Load Rating (Cor) [N] |
691 |
| Inner Diameter (d) [in] |
0.7874 |
| Outer Diameter (D) [in] |
0.9843 |
Download
CAD Data
Our CAD data is downloadable through the "PARTcommunity" service provided by CADENAS WEB2CAD Inc.. In order to use this service, registration to "PARTcommunity" is required, but is Available free of charge. Please click "CAD data [PARTcommunity]" to download 2D/ 3D CAD data for our products.
