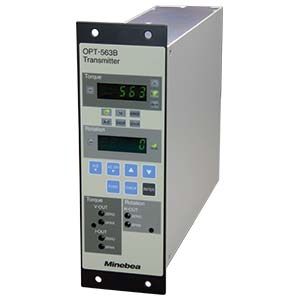

Transmitter for optical transmission method torque meter OPT-563B

Discontinued Products

The transmitter is an amplifier that amplifies the signal from the strain gage applied transducers (load cell, pressure sensor, torque transducer, and diplacement sensor, etc.), and outputs the current or the voltage in the analogue. These transmittor excels in the response, and shape and the function are different according to the usage.

Features

・Special transmitter for optical transformer method torque meter.
・The calibration data for four torque meters can be recorded and changed.
・Digital compensation of asymmetry, linearize and twist direction reversing can be executed.
・Up to 2 points as analog output for torque is selectable from a voltage output (standard), current output or frequency output.
・The analog output for the rotational speed is selected from either of voltage output or current output, and are selected whether or not to exist of the frequency output.
・Digital output is selectable one from RS-232C interface, RS-422/485 interface, Profibus interface or CANopen interface.

Alternative

Transmitter for optical transmission method torque meter OPT-564

scroll

Specification name	Specification contents
Bridge power supply	24 VDC ±2 VDC, 2 A
Applicable transducer	Optical transformer method torque transducer
Input range	Torque signal 5 kHz to 15 kHz (based on signal RS-485) Rotation speedsignal 0 Hz to 50 000 Hz
Output voltage	Analog output (Standard) DC±10 V (at ± rated output of torque transducer) Digital output (Option) Select one from RS-232C, RS-422/485 , PROFIBUS or CANopen.
Zero adjustment range	±2 %R.O.
Digital compensation	Asymmetry compensation ±10％R.O. Linearize compensation 10 points at the maximum Twist direction reversing compensation The direction of the twist and the output signal are reversed.
Non-linearity (Display and voltage output)	0.01 %F.S. (Voltage output)
CHECK	Approx. 80 % of rated output (Set by function)
Temperature efficient	Zero point ±0.025 %R.O./10℃, Sensitivity ±0.025 %R.O./10℃
Frequency response range	(Changeable to 1 Hz, 10 Hz, 30 Hz, 50 Hz, 100 Hz, 300 Hz, 500 Hz or 1 kHz) Above is 10 Hz to 1 kHz : -3 dB±1 dB, 1 Hz : -3 dB±3 dB
Torque display section	Dsiplay of output 0 to ± 99 999 digital display (Green LED) Display type Analog output, Torque Condition display A/Z, LOCK, CHECK, H, M, ERROR Display of unit Changeable to V, Nm or kNm Display rate Approx. 20 times/s (Changeable to 4 times/s)
Rotation speed display section	Display of output 0 to ± 27 500 digital display (Green LED) Display type Rotation speed Condition display LOCK Display of unit r/min Display rate Approx. 20 times/s (Changeable to 4 times/s)
External control input signal	Digital filter, Sheet key lock, Changeover of calibration data, Indication of luminous energy decrease
Operating temp. / humidity range	0 ℃ to 50 ℃, 85 %RH orless (Non condensing)
Power supply	100 VAC to 240 VAC, 50/60 Hz (Permisible variable range : 85 VAC to 264 VAC),
Power consumption	Approx. 60 VA (at 100 VAC)
Outline dimensions (WxHxD)	68 mm x 209 mm x 252 mm (Excludes protruding parts)
Weight	Approx. 2 kg

Instruction Manual
Specification
- opt563b(EN351563B).pdf
CAD
- opt563b.zip
Software / Firmware
- OPT-563B-P70_GSD
- Current output
- Frequency output
- RS-232C interface
- RS-422/485 interface
- PROFIBUS interface
- CANopen interface
- Rotation detector MP-982
