Miniature & small ball bearings Deep groove ball bearings
6000SS
Outline
| NMB Parts No. | 6000SS |
|---|---|
| Metric or Inch | Metric |
| ISO/JIS | 6000SS |
| Material of Rings | Chromium Steel |
| Ring Type | [Radial] Standard |

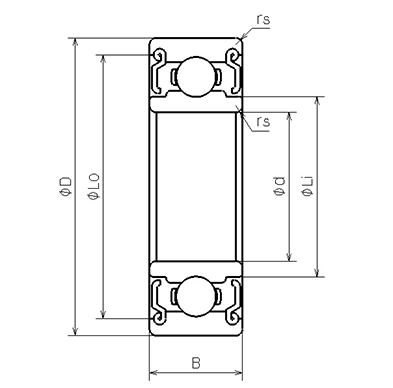

| Inner Diameter (d) [mm] |
10.000 |
| Outer Diameter (D) [mm] |
26.000 |
| Width (B) [mm] |
8.000 |
| Chamfer (rs min) [mm] |
0.300 |
| Reference Diameter Outer (Lo) [mm] |
22.800 |
| Reference Diameter Inner (Li) [mm] |
13.750 |
| Ball Size (DW) [mm] |
4.7625 |
| Ball Complement (Z) |
7 |
| Dynamic Load Rating (Cr) [N] |
4578 |
| Static Load Rating (Cor) [N] |
1970 |
| Inner Diameter (d) [in] |
0.3937 |
| Outer Diameter (D) [in] |
1.0236 |
