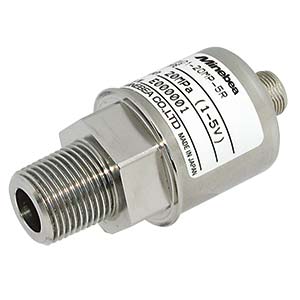

High endurance type pressure transmitter PRN01 / PRN02 series

Discontinued Products

Features

・ASIC(Application Specific I.C.) amplifier is installed.
・High performance type pressure transmitter with a little temperature effect and excellent in noise.
・Total accuracy : ±1.0 %F.S.(Including the temperature effect from -20℃ to 70℃.)
・The newly developed high stability and low current strain gage has been used for the diaphragm made of 17-4 PHs.

【Application】
Injection molding machine, Press machine, Various pump systems, Hydraulic apparatus

scroll

Specification name	Specification contents
Rated capacity	5 MPa~100MPa
Safe overload	150 %R.C.
Ultimate overload
Accuracy	±1.0 %F.S. (including non-linearity, hysteresis, repeatability)
Rated output	Current : 4 mA ~ 20 mA, Voltage : 0 V ~ 5 V, 1 V ~ 5 V
Response frequency
Power supply voltage	12 VDC ~ 28 VDC
Insulation resistance	1 000 MΩ or more (50 VDC)
Temp. range, compensated	-20 ℃ ~ 70 ℃
Temp. range, safe	-30 ℃ ~ 80 ℃
Temp. effect on zero	±1.0 %F.S./-20 ℃ ~70 ℃
Temp. effect on output	±1.0 %F.S./-20 ℃ ~70 ℃
Class of protection	IP65 or equivalent
Material of element	Stainless steel
Mounting screw	G3/8{PF}, R3/8{PF} (PRN01-100MP : G1/2{PF}, R1/2{PF})

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts No.	Rated capacity [Mpa]	Weight(Approx.) [g]	CAD files[DXF]	CAD files 2[DXF]	3D CAD files [STEP]	3D CAD files 2 [STEP]
PRN01-5MP*S	5	70	prn01_g38.dxf	prn01_r38.dxf	PRN01-5MP*S-G.STEP	PRN01-5MP*S-R.STEP
PRN01-10MP*S	10	70	prn01_g38.dxf	prn01_r38.dxf	PRN01-10MP*S-G.STEP	PRN01-10MP*S-R.STEP
PRN01-20MP*S	20	70	prn01_g38.dxf	prn01_r38.dxf	PRN01-20MP*S-G.STEP	PRN01-20MP*S-R.STEP
PRN01-35MP*S	35	70	prn01_g38.dxf	prn01_r38.dxf	PRN01-35MP*S-G.STEP	PRN01-35MP*S-R.STEP
PRN01-50MP*S	50	70	prn01_g38.dxf	prn01_r38.dxf	PRN01-50MP*S-G.STEP	PRN01-50MP*S-R.STEP
PRN01-100MP*S	100	70	prn01_g38.dxf	prn01_r38.dxf	PRN01-100MP*S-G.STEP	PRN01-100MP*S-R.STEP
