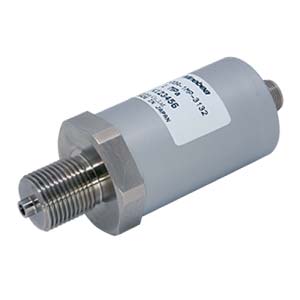

High-accuracy, negative/absolute pressure use pressure transmitter NS100A series
Precise, Robust, and Surge-Resistant: Pressure Gauges for Long-Term Stability.
Features
・Highly accurate pressure transmitter 0.2%R.O. as a standard by SOS technology.（including Non-linearity, Hysteresis and Repeatability.) 0.1 %R.O. is also available as a high accurate type.
・High reliability and durability by SOS technology.
・Can correspond to the absolute pressure and compound pressure
・Small size and light weight
・Wide range pressure from 200kPa to 50MPa can be measured.
-
-
scroll
Specification name
Specification contents
Rated capacity 200 kPa ~ 50MPa Safe overload 200 %R.C. Ultimate overload 300 %R.C. Accuracy 0.2 %R.O. (including non-linearity, hysteresis and repeatability) Rated output (Current) 4 mA ~ 20 mA (2 wires method, Load resistance 500 ohm or less, at 24 V) Rated output (Voltage) 0 V ~ 10 V (Load resistance 5 k-ohm or more) Response frequency 1 kHz Power supply voltage 24 VDC (18 VDC ~ 28VDC) Power consumption Approx. 30 mA Insulation resistance 1 000 MΩ or more (50 VDC) Temp. range, compensated -20 ℃ ~ 70 ℃ Temp. range, safe -30 ℃ ~ 80 ℃ Temp. effect on zero 0.2 %R.O./10 ℃ Temp. effect on output 0.2 %LOAD/10 ℃ Connector R03-RB5F(receptacle) Cable Optional cable with plug CAC-156-*M Class of protection IP44 or equivalent (Main body only) Material of pressure hole Stainless steel Material of cover Alluminium alloy (with almite processing) Material of pressure diaphragm Single crystal sapphire,etc., Mounting screw G3/8{PF} Tightening torque 20 N･m ~ 40 N･m {2.04kgf･m ~ 4.08 kgf･m} Special specification NS100A-A015: Accuracy 0.1 %R.O. (Rated capacity 200kPa～30MPa), NS100A-S70: Class of protection IP67 or equivalent with zero adjustment function, NS100A-CE: CE mark applicable product (Only voltage output) -
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
-
Instruction Manual
Specification
Custom
- ※Custom products are intended for mass production. Please consult us for small-lot orders.
