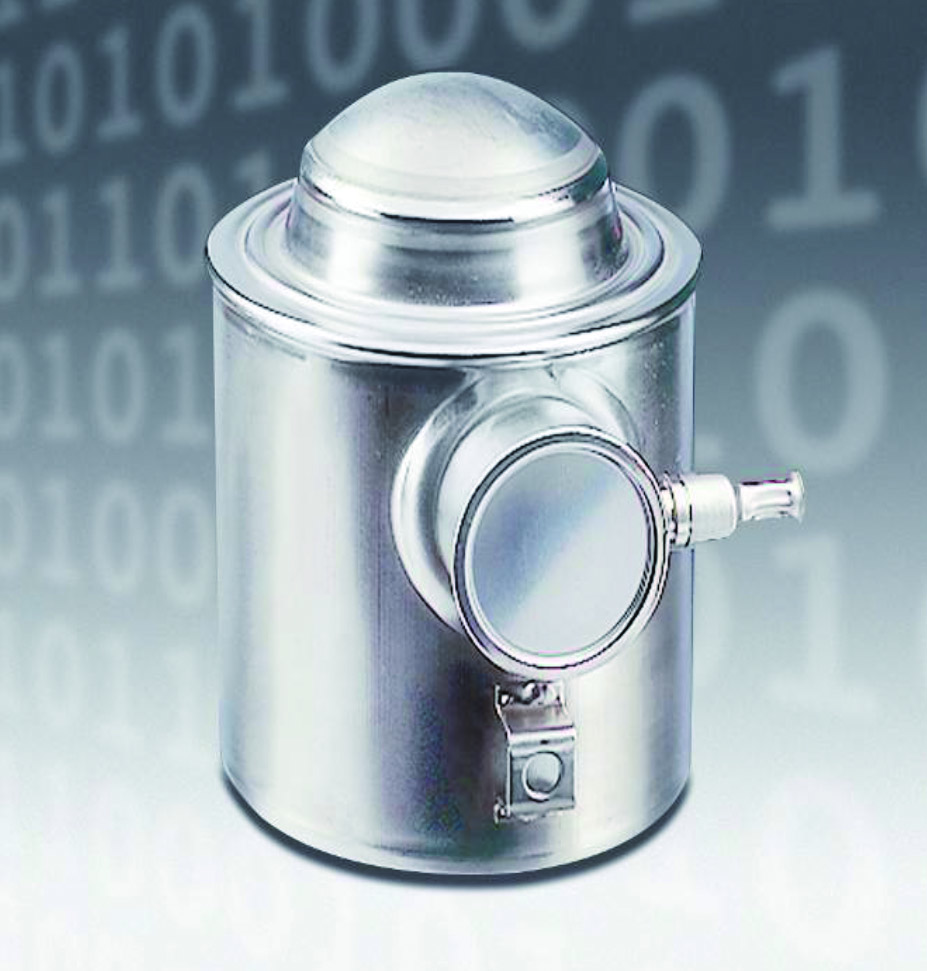

Features
■Stainless steel housing with completely sealed structure(IP68/IP69K)
■Accuracy class:C3 0.015%/C6 0.008%（25t,50t)
■Rated output:200,000 digits(25t:400,000)
■2-wire RS485 communication allows connection of up to 8 units
■Connectable devices:PR5200/5230 Transmitter、PR5410 Process Indicator、PR5900 Maxxis5 Process Controller
Specification
| Specification name | Specification contents | Specification contents2 | Specification contents3 | Specification contents4 |
|---|---|---|---|---|
| OIML Accuracy class | C3(2t~10t) | C3(25t~50T) | C6(2t~10t) | C6(25t~50T) |
| Accuracy class | 0.0125%Emax | 0.0125%Emax | 0.008%Emax | 0.008%Emax |
| Safe load limit | 200%Emax | 150%Emax | 200%Emax | 150%Emax |
| Destructive load | >500%Emax | >300%Emax | >500%Emax | >300%Emax |
| Rated output tolerance | <0.07%Cn | <0.07%Cn | <0.07%Cn | <0.07%Cn |
| Zero balance | <0.7%Cn | <0.7%Cn | <0.7%Cn | <0.7%Cn |
| Reproducibility | <0.005%Cn | <0.005%Cn | <0.005%Cn | <0.005%Cn |
| Creep | <0.0125%Cn | <0.0125%Cn | <0.008%Cn | <0.008%Cn |
| Non-linearity | <0.01%Cn | <0.01%Cn | <0.01%Cn | <0.01%Cn |
| Hysteresis | <0.0125%Cn | <0.0125%Cn | <0.008%Cn | <0.008%Cn |
| Temperature effect on Zero | <0.01%Cn/10K | <0.01%Cn/10K | <0.007%Cn/10K | <0.007%Cn/10K |
| Temperature effect on Span | <0.01%Cn/10K | <0.01%Cn/10K | <0.005%Cn/10K | <0.005%Cn/10K |
| Insulation resistance | >1000Ω | >1000Ω | >1000Ω | >1000Ω |
| Nominal supply voltage | 16～28V | 16～28V | 16～28V | 16～28V |
| Nominal ambient temperature range | -10℃～+40℃ | -10℃～+40℃ | -10℃～+40℃ | -10℃～+40℃ |
| Usable ambient temperature range | -30℃～+70℃ | -30℃～+70℃ | -30℃～+70℃ | -30℃～+70℃ |
| Storage ambient temperature range | -40℃～+95℃ | -40℃～+95℃ | -40℃～+95℃ | -40℃～+95℃ |
| Class of protection | IP68 / IEC 60529 (complete waterproofing · depth of water 1.5 m 10000 h) / IP 69 K: equivalent to NEMA 6 | IP68 / IEC 60529 (complete waterproofing · depth of water 1.5 m 10000 h) / IP 69 K: equivalent to NEMA 6 | IP68 / IEC 60529 (complete waterproofing · depth of water 1.5 m 10000 h) / IP 69 K: equivalent to NEMA 6 | IP68 / IEC 60529 (complete waterproofing · depth of water 1.5 m 10000 h) / IP 69 K: equivalent to NEMA 6 |
| Material of element | Body: Stainless steel made 1.4301 / equivalent to AISI 304 | Body: Stainless steel made 1.4301 / equivalent to AISI 304 | Body: Stainless steel made 1.4301 / equivalent to AISI 304 | Body: Stainless steel made 1.4301 / equivalent to AISI 304 |
| Cable specification | Shielded TPE (thermoplastic elastomer)、4-core shielded cable length (≦10t:5 m/≧25t:12m), external shape 6mm | Shielded TPE (thermoplastic elastomer)、4-core shielded cable length (≦10t:5 m/≧25t:12m), external shape 6mm | Shielded TPE (thermoplastic elastomer)、4-core shielded cable length (≦10t:5 m/≧25t:12m), external shape 6mm | Shielded TPE (thermoplastic elastomer)、4-core shielded cable length (≦10t:5 m/≧25t:12m), external shape 6mm |
| Connectable devices | PR5220 / PR5230 transmitter, PR5410 process indicator, PR5900: Maxxis 5 process controller | PR5220 / PR5230 transmitter, PR5410 process indicator, PR5900: Maxxis 5 process controller | PR5220 / PR5230 transmitter, PR5410 process indicator, PR5900: Maxxis 5 process controller | PR5220 / PR5230 transmitter, PR5410 process indicator, PR5900: Maxxis 5 process controller |
| Digital interface | Up to 8 units can be connected with RS-485 | Up to 8 units can be connected with RS-485 | Up to 8 units can be connected with RS-485 | Up to 8 units can be connected with RS-485 |
| Dedicated connectable device | Connection box PR6024/64S, power supply PR6024/62S, power supply cable PR6124P, data cable PR6124D | Connection box PR6024/64S, power supply PR6024/62S, power supply cable PR6124P, data cable PR6124D | Connection box PR6024/64S, power supply PR6024/62S, power supply cable PR6124P, data cable PR6124D | Connection box PR6024/64S, power supply PR6024/62S, power supply cable PR6124P, data cable PR6124D |
Table of P/N
| Parts No. | Rated Capacity [t] |
Weight [kg] |
Gross Weight [kg] |
Packaged Size(W) [cm] |
Packaged Size(L) [cm] |
Packaged Size(H) [cm] |
PDF data (outline drawing) | PDF data (outline drawing)2 | PDF data (outline drawing)3 | Specification sheet |
|---|

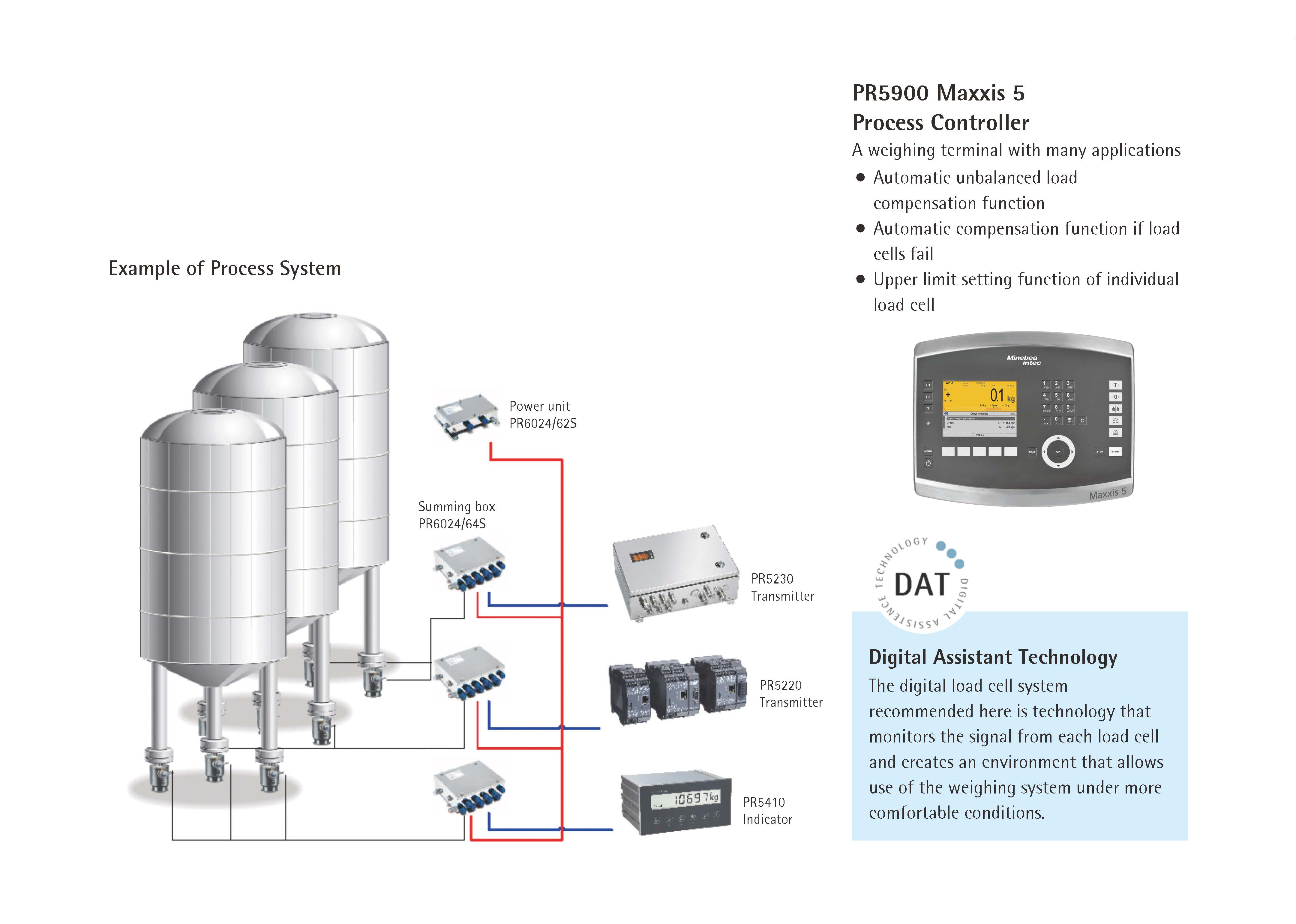

Process system configuration example
