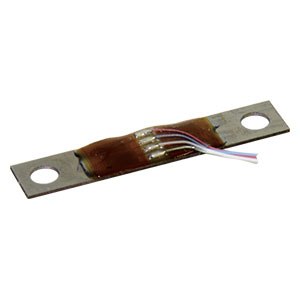

Features
Stainless steel, and full bridge type
Rated capacity : 1.961 N {0.2 kgf} ～ 39.22 N {4 kgf}
Specification
| Specification name | Specification contents |
|---|---|
| Rated capacity | 1.961 N{0.2 kgf}～39.220 N {4.0 kgf} |
| Safe overload | 150 %R.C. |
| Ultimate overload | 300 %R.C. |
| Rated output | 2 mV/V±0.3 mV/V |
| Non-linearity | ±2 %R.O. |
| Hysteresis | ±2 %R.O. |
| Repeatability | ±2 %R.O. |
| Excitation, recommended | 5 V or less |
| Excitation, maximum | 12 V |
| Zero balance | ±10 mV/V |
| Input resistance | 700 Ω±140 Ω |
| Output resistance | 700 Ω±140 Ω |
| Insulation resistance | 1,000 MΩ or more (DC50 V) (between bridge and main body) |
| Temp. range, compensated | -10 ℃～50 ℃ |
| Temp. range, safe | -30 ℃～80 ℃ |
| Temp. effect on zero | 1.0 %R.O./10 ℃ |
| Temp. effect on output | 1.0 %LOAD/10 ℃ |
| Lead wire | AWG36, 300 mm directly attached, cable end is separated |
| Class of protection | IP00 or equivalent |
| Material of element | Stainless steel |
| Durability | 1,000,000 times with rated load applied. |
Table of P/N
| Parts No. | Rated capacity [N] |
Rated capacity [kgf] |
3D CAD files [STEP] |
|---|
Download
Specification
